Front Bumper Fascia Bracket Replacement

Front Bumper Fascia Bracket Replacement

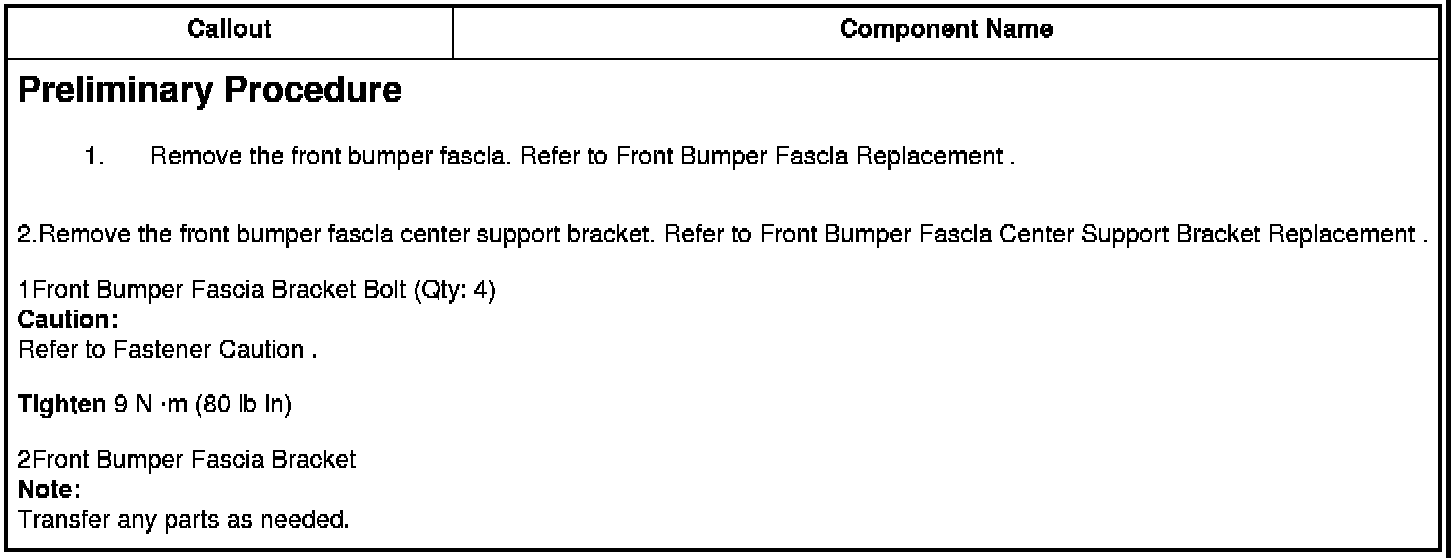

2.Remove the front bumper fascia center support bracket. Refer to Front Bumper Fascia Center Support Bracket Replacement Front Bumper Fascia Center Support Bracket Replacement .

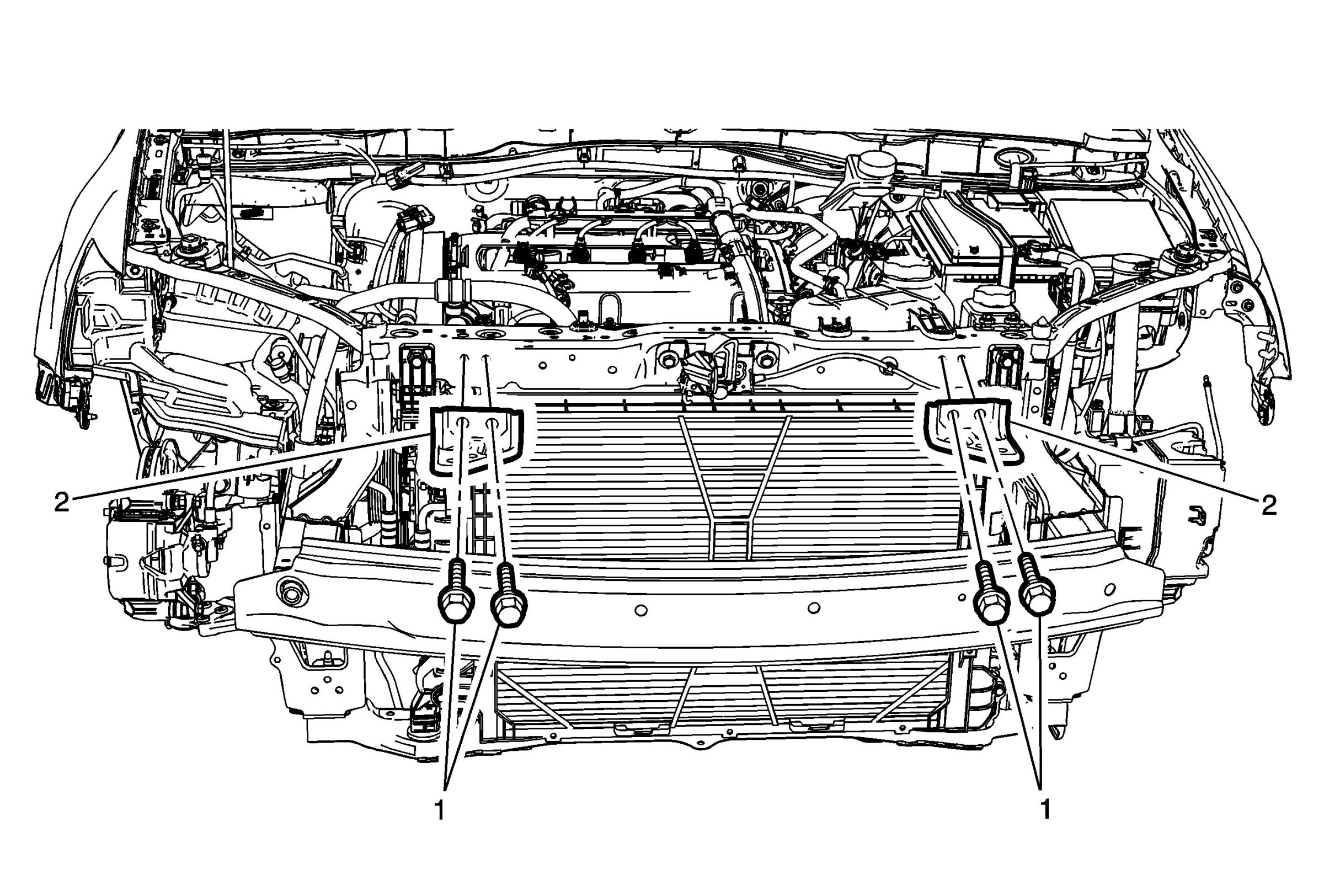

1Front Bumper Fascia Bracket Bolt (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 9 N �m (80 lb in)

2Front Bumper Fascia Bracket
Note:Transfer any parts as needed.
