Rear Bumper Fascia Replacement (Hatchback)

Rear Bumper Fascia Replacement (Hatchback)











2.Disconnect the rear electrical connectors.

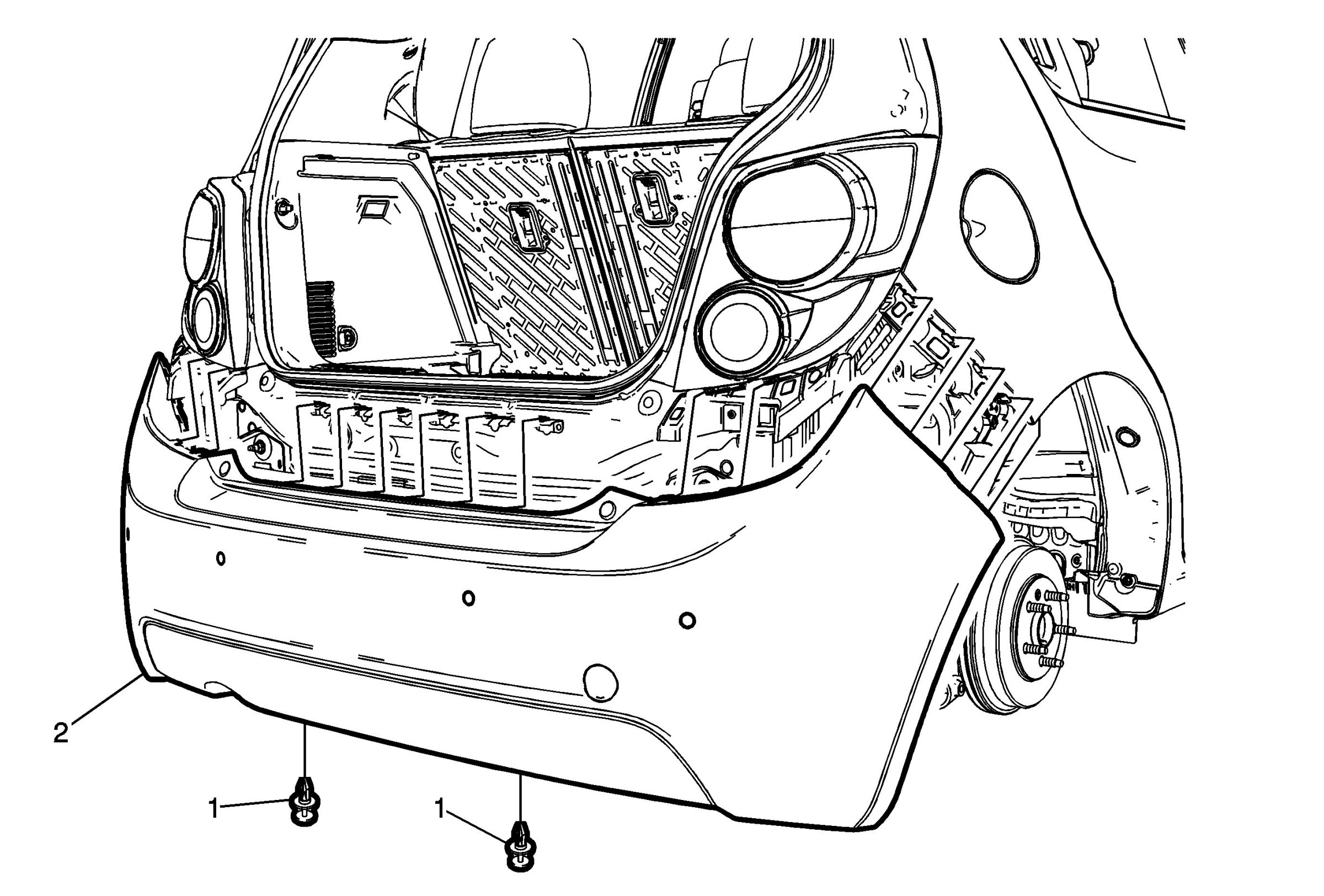

1Rear Fascia Lower Push-In Retainer (Qty: 2)

2Rear Fascia

Procedure

1.Carefully push a small nylon wedge between the fascia and the bracket to separate the joint slightly.

2.Spray a mixture of soap and clean drinkable water into the joint, to act as a lubricant.

3.Insert a small flat-bladed tool or plastic trim tool into the fascia slot and depress the tabs one at a time. Pull the rear bumper fascia carefully rearward and outward in order to release the retaining tabs from the rear bumper fascia guides.

4.Transfer parts as needed.
