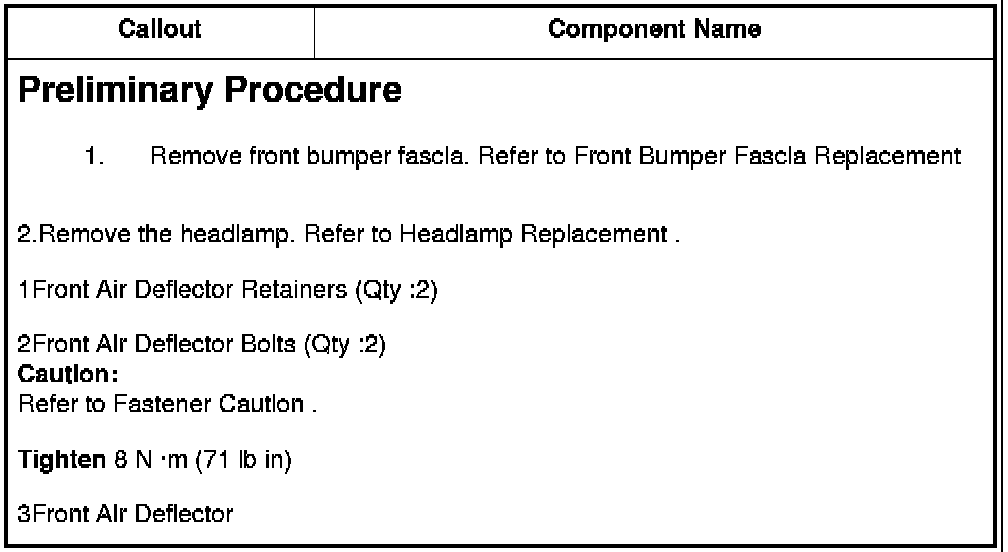

Air Dam: Service and Repair

Front Air Deflector Replacement












2.Remove the headlamp. Refer to Headlamp Replacement .

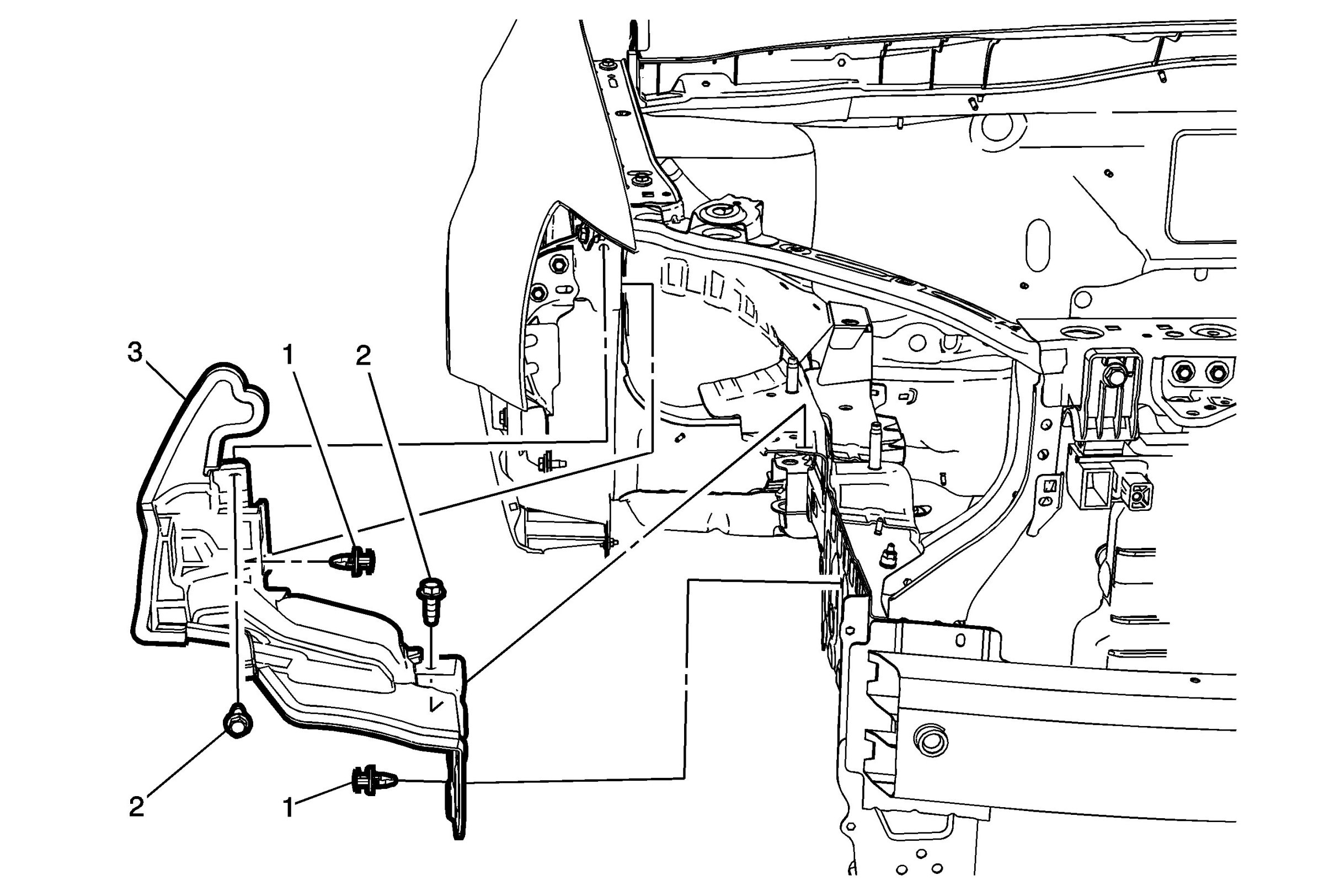

1Front Air Deflector Retainers (Qty :2)

2Front Air Deflector Bolts (Qty :2)
Caution:Refer to Fastener Caution .
Tighten 8 N �m (71 lb in)

3Front Air Deflector
