Evaporative Emission Vent Solenoid Valve (NT7)
Evaporative Emission Vent Solenoid Valve (NT7)
Component Connector End Views

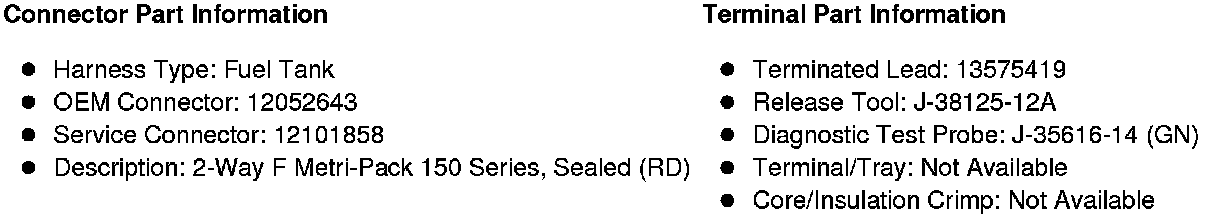

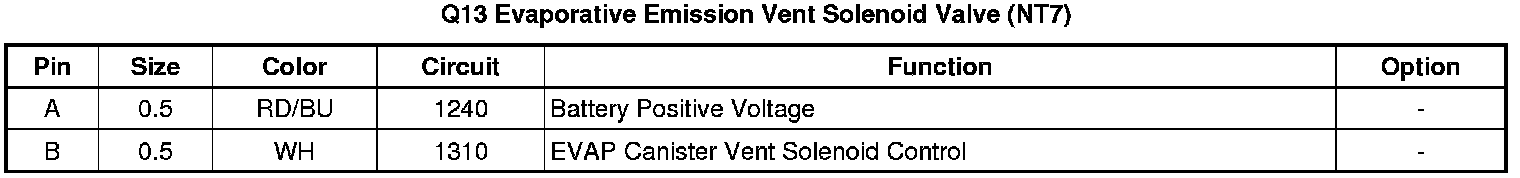

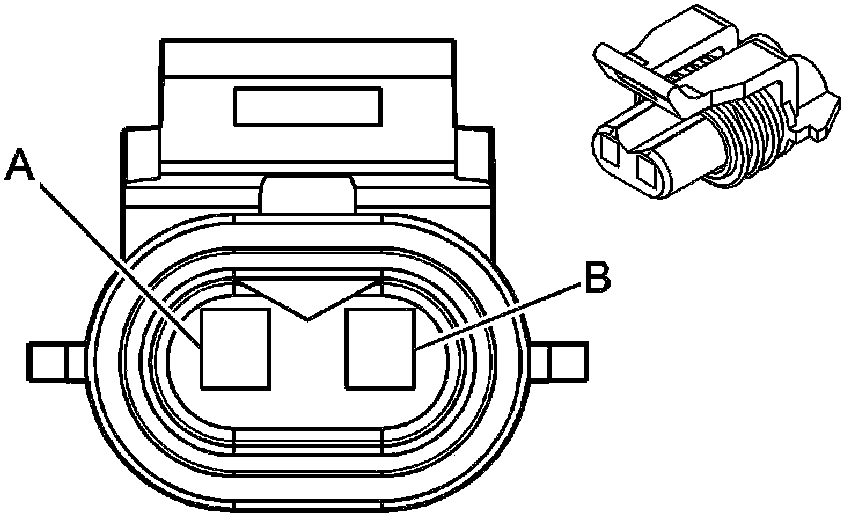

Q13 Evaporative Emission Vent Solenoid Valve (NT7)
