Seat Belt Anchor Pretensioner - Passenger (A69)
Seat Belt Anchor Pretensioner - Passenger (A69)

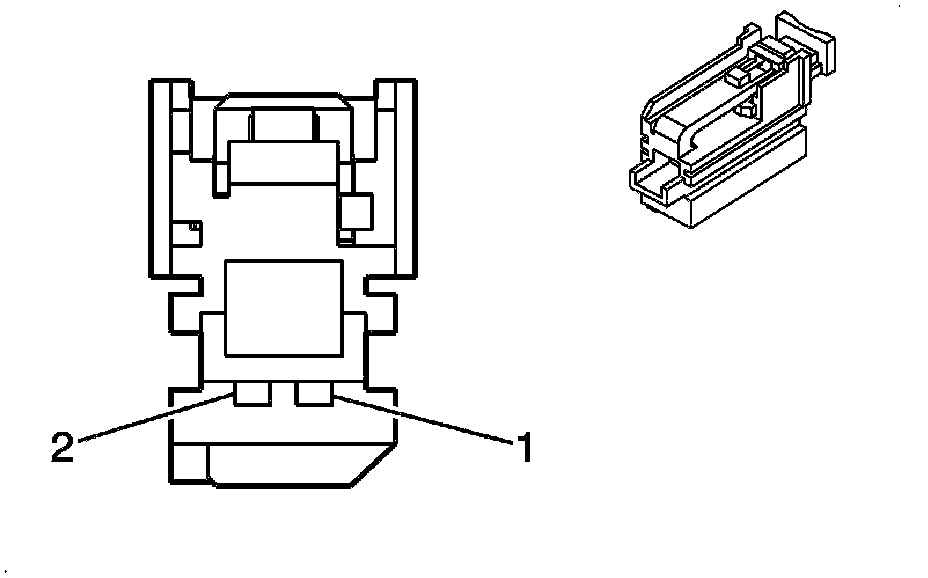

Component Connector End Views

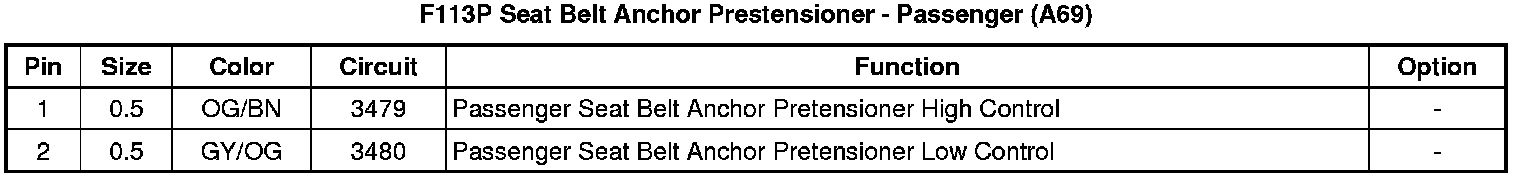

F113P
Seat Belt
Anchor Pretensioner - Passenger (A69)
