X901

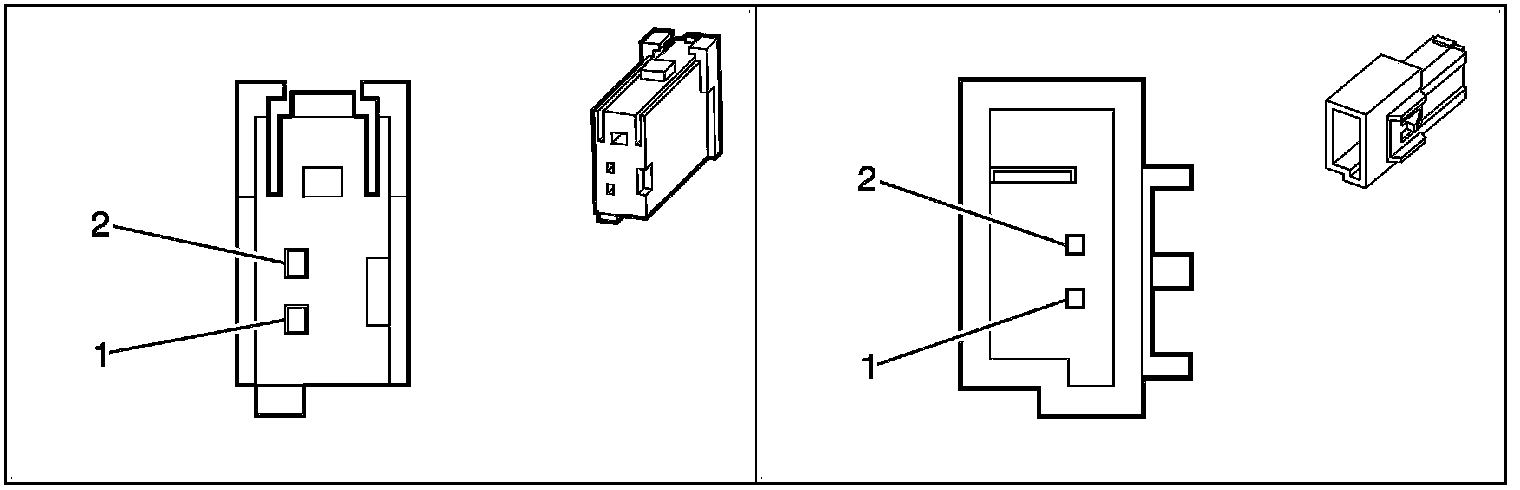

Inline Harness Connector End Views

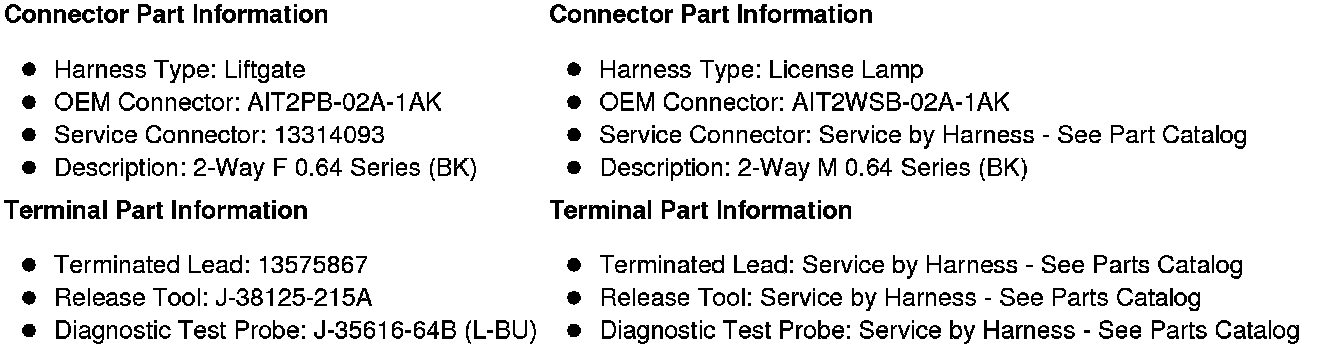

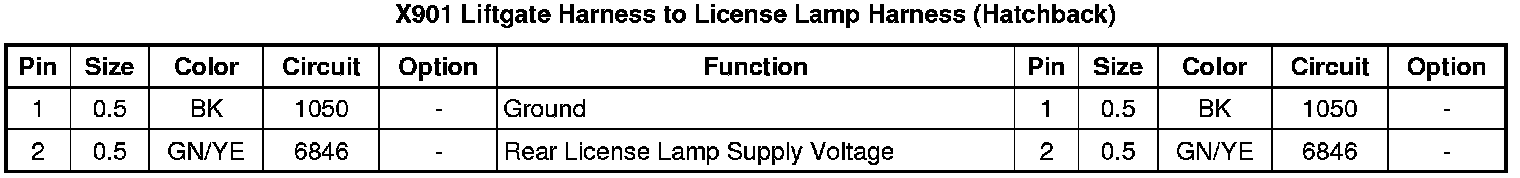

X901 Liftgate Harness to License Lamp Harness (Hatchback)
















Inline Harness Connector End Views

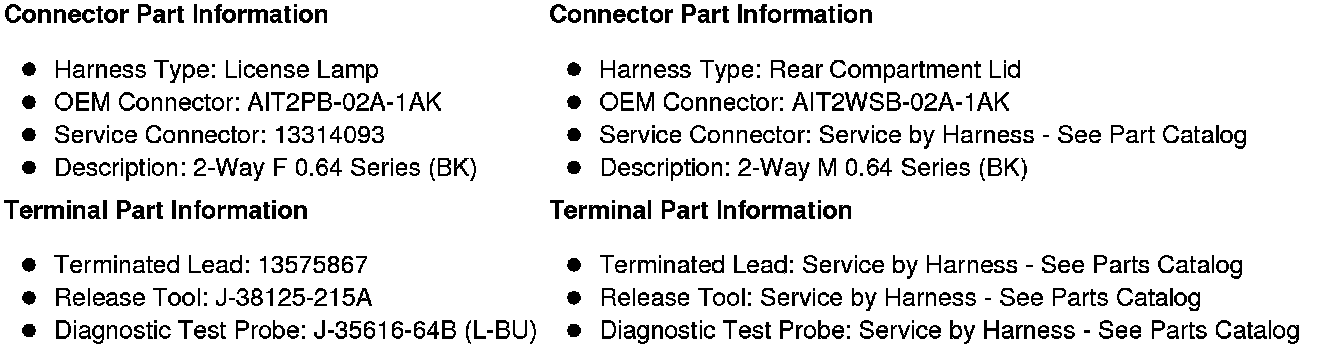

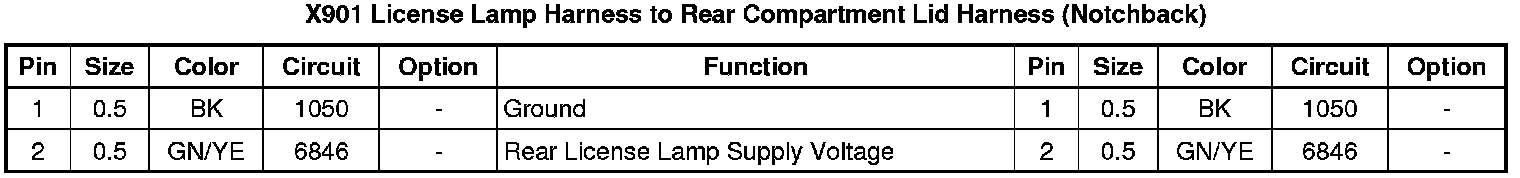

X901 License Lamp Harness to Rear Compartment Lid Harness (Notchback)
