Camshaft Oil Seal: Service and Repair

Camshaft Seal Replacement

Special Tools

* EN 422 - Installer

* EN 45000 - Remover

For equivalent regional tools, refer to Special Tools Special Tools

Removal Procedure

1. Remove the intake and exhaust camshaft sprocket. Refer to Camshaft Sprocket Replacement Service and Repair.





Note:
Do not damage the sealing surfaces.

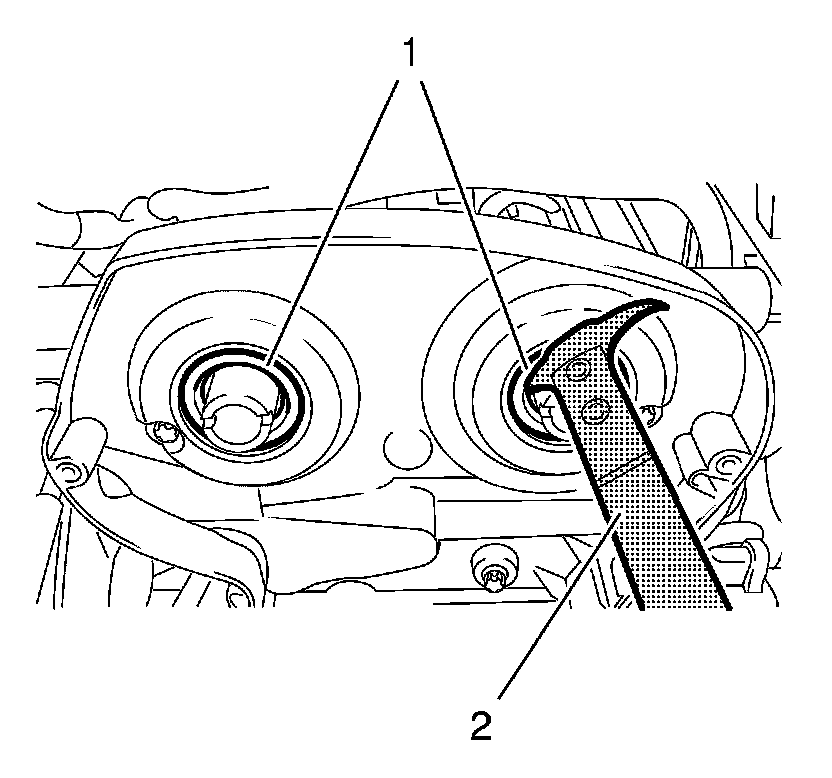

2. Use the EN-45000 - remover to loosen the camshaft front oil seals (1).





3. Remove the camshaft front oil seals (1).

Installation Procedure

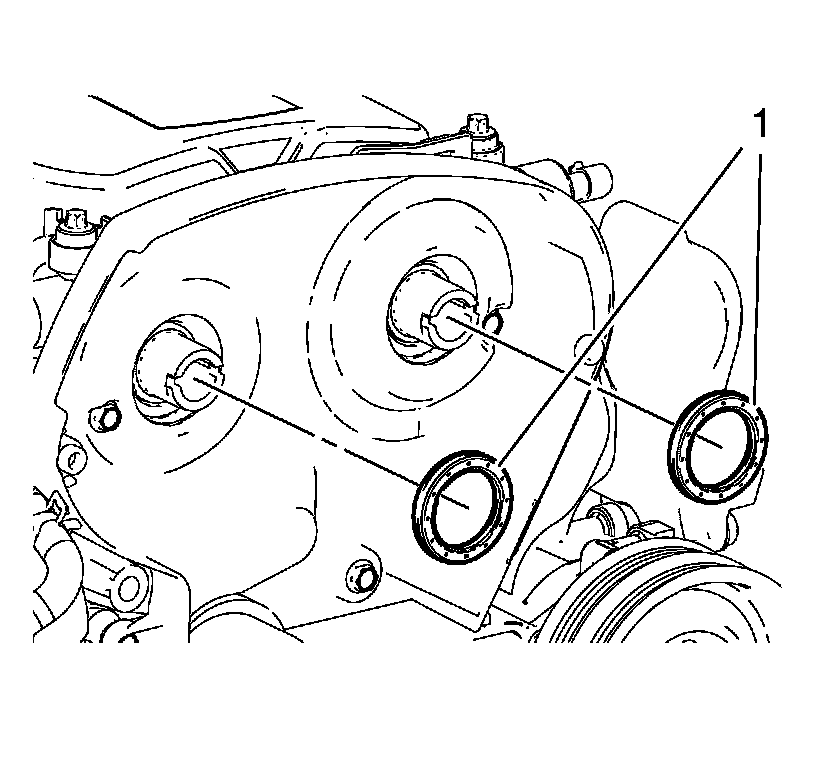

1. Insert 2 NEW camshaft front oil seals (1).

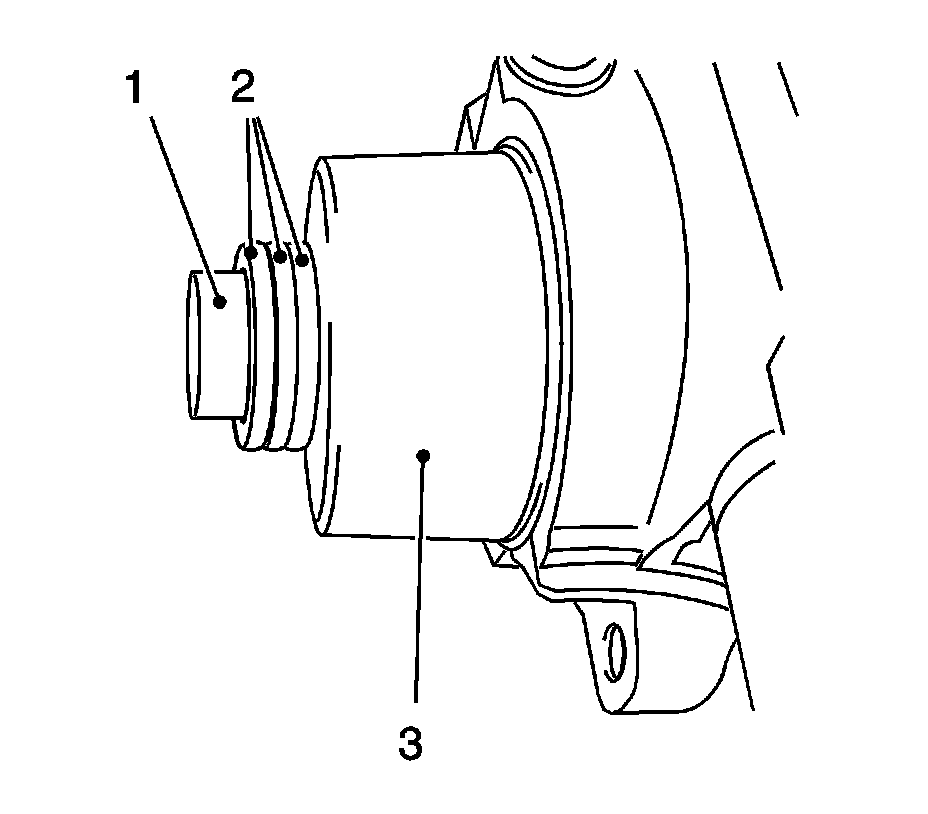

2. Tighten the seal ring with EN-422 - installer (3) on the camshaft until this is in contact with the cylinder head.

3. To install, use camshaft sprocket bolt (1) in conjunction with shims (2) with a total thickness of approximately 10 mm (0.393 in).

4. Install the camshaft sprocket intake and exhaust. Refer to Camshaft Sprocket Replacement Service and Repair.
