Transmission Fluid Pump Assemble (6T30)




Transmission Fluid Pump Assemble (6T30)

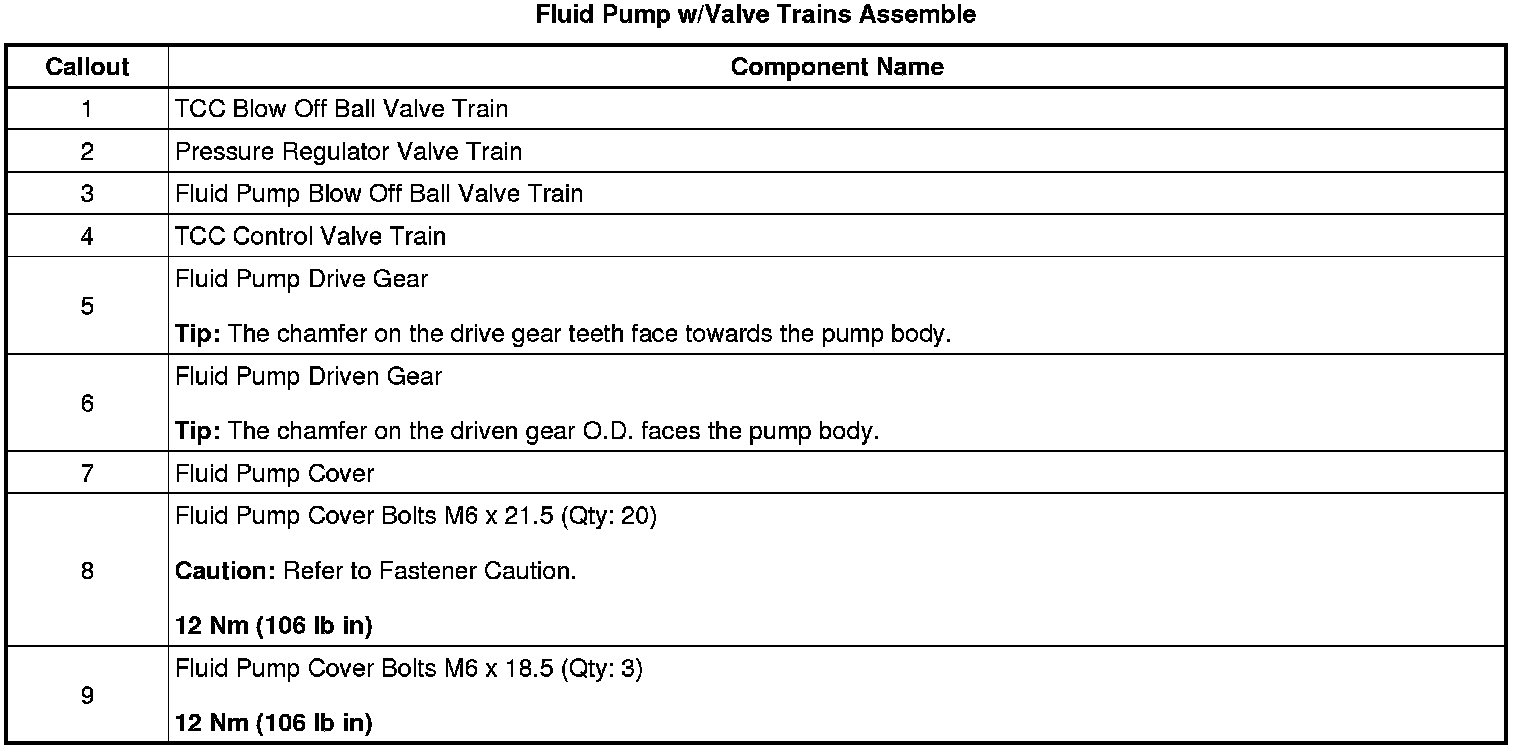

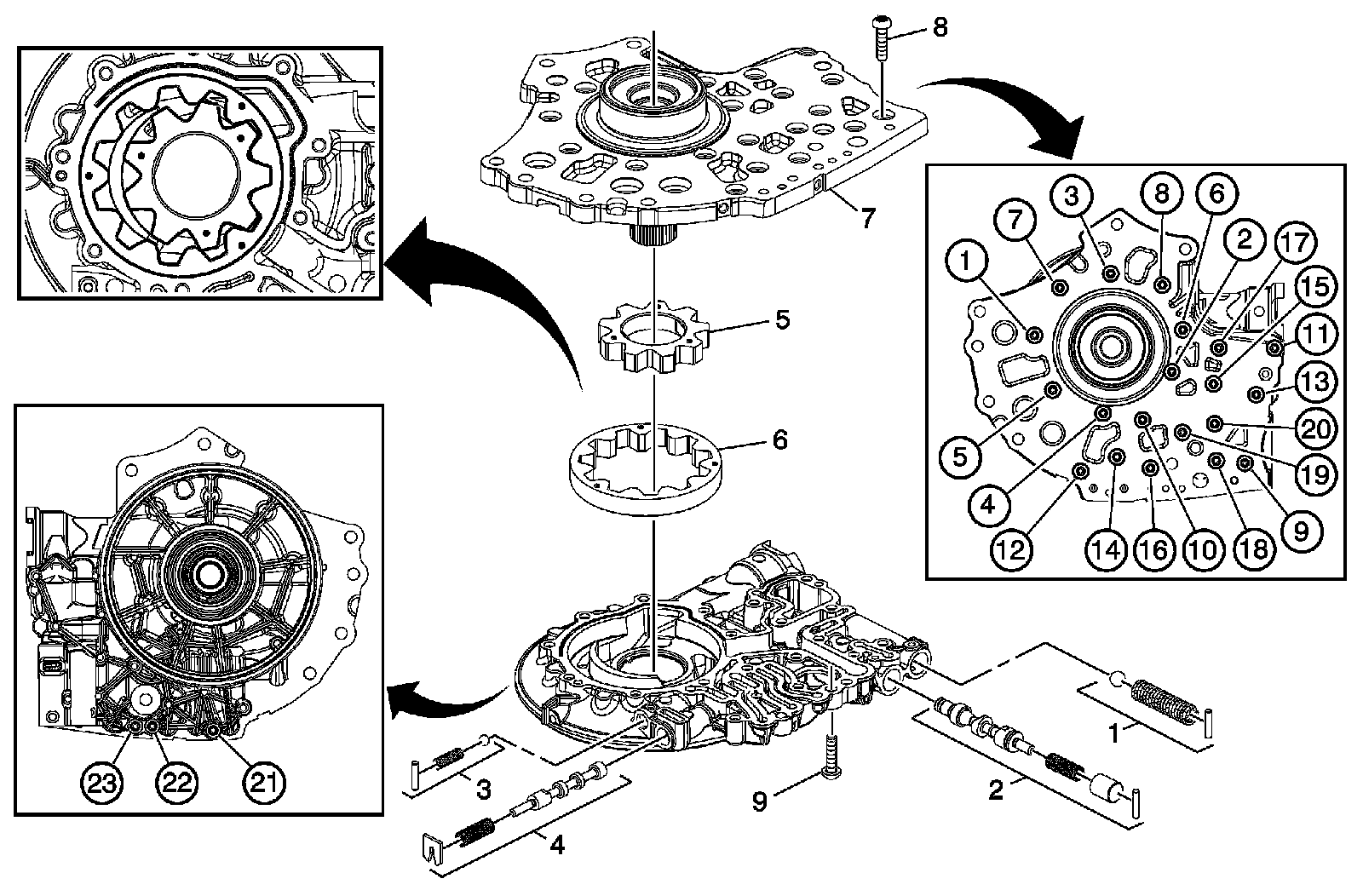

Fluid Pump w/Valve Trains Assemble

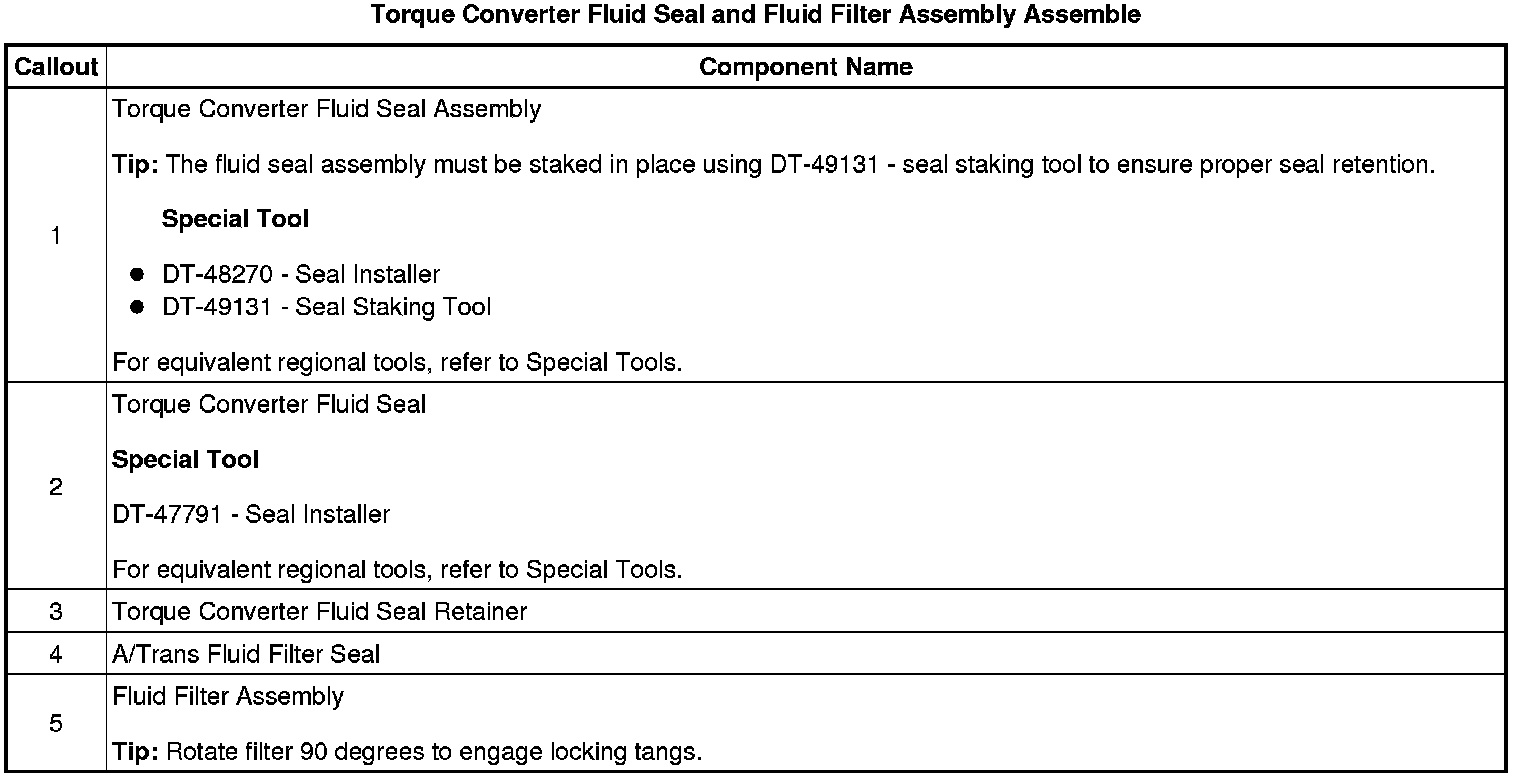

Torque Converter Fluid Seal and Fluid Filter Assembly Assemble
