Fig. 17 C & K Series W/ Auto. Trans. Federal
Fig. 17 C & K Series W/ Auto. Trans. Federal

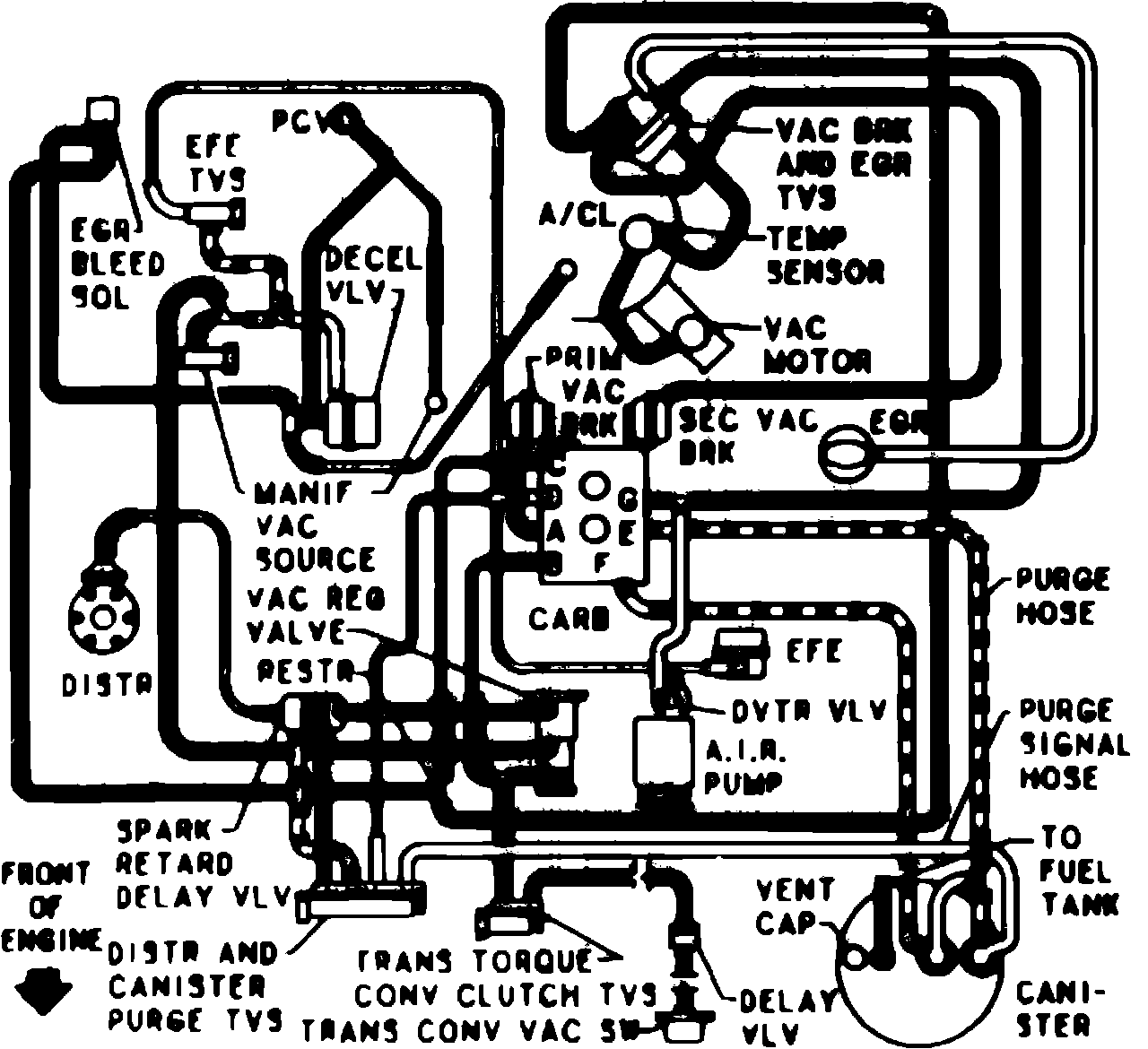

Fig. 17 Vacuum hose routing. 6-250 2 Bbl. C & K Series w/ auto. trans. Federal:
