Home >> Chevy Truck >> 1983 >> C 10 1/2 Ton Pickup 2WD L6-250 4.1L VIN D 2-bbl >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 250/250C, 350/350C Automatic Transmission >> 350/350C Automatic Transmission >> Valve Body

Valve Body





1. Remove accumulator piston.

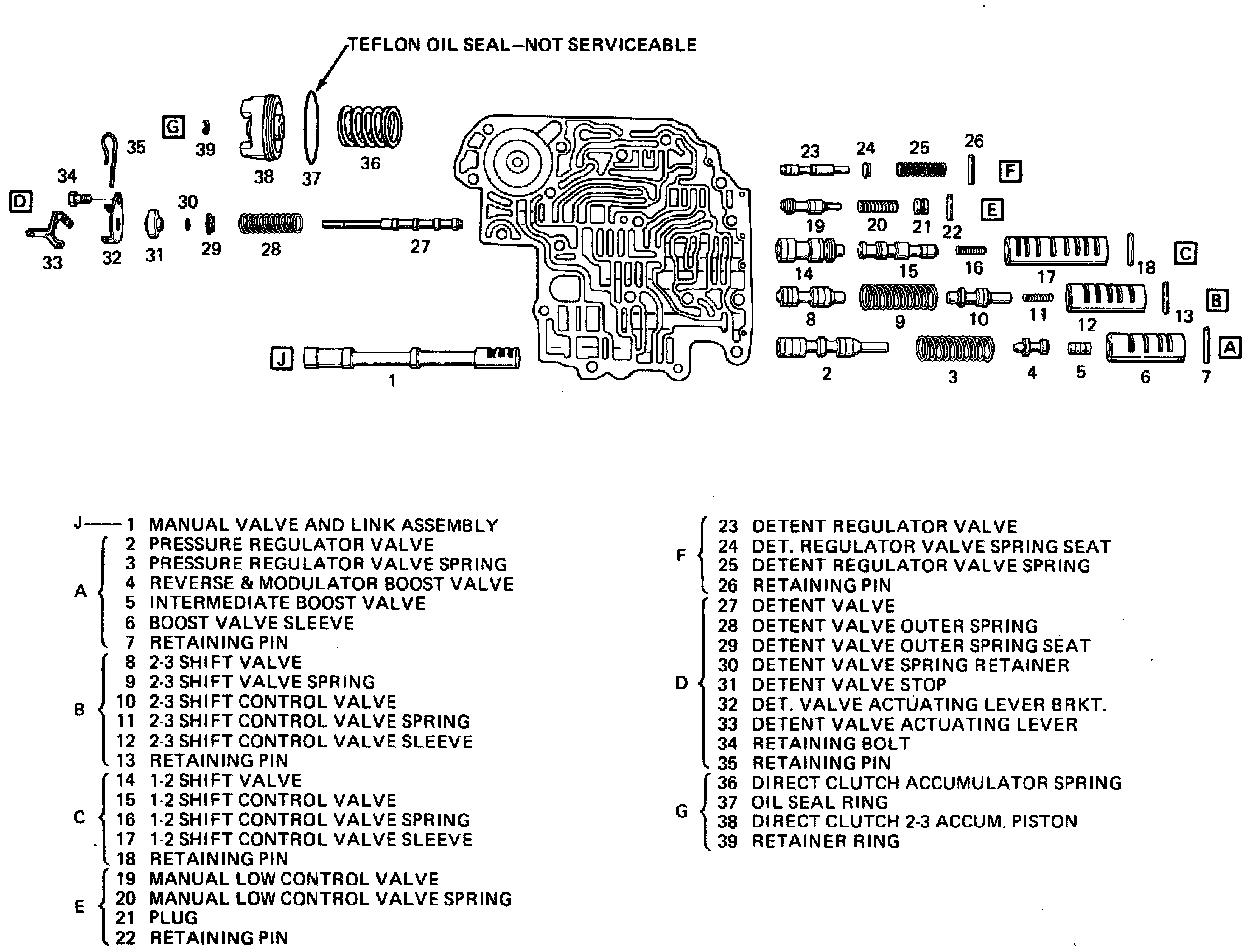

2. Valve body assembly.
