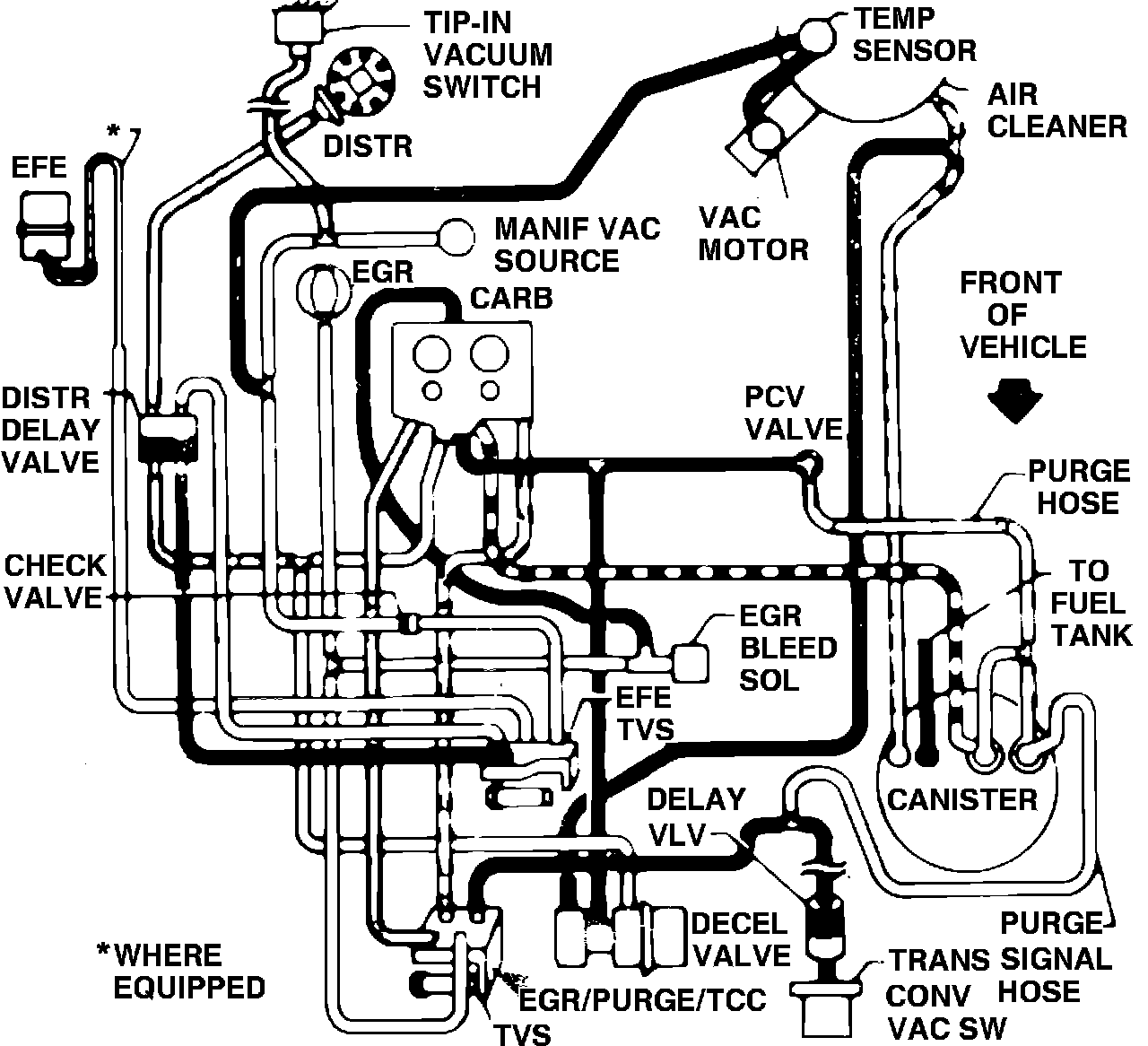

Fig. 29 C10 Federal W/ Auto. Trans. & Optional Fuel Tank
Fig. 29 C10 Federal W/ Auto. Trans. & Optional Fuel Tank
Fig. 29 Vacuum hose routing. 1983 V8-305 C10 Federal w/ auto. trans. & optional fuel tank:
