Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1983
>>
EL Camino V6-229 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
>>
Headlamp Switch
Headlamp Switch

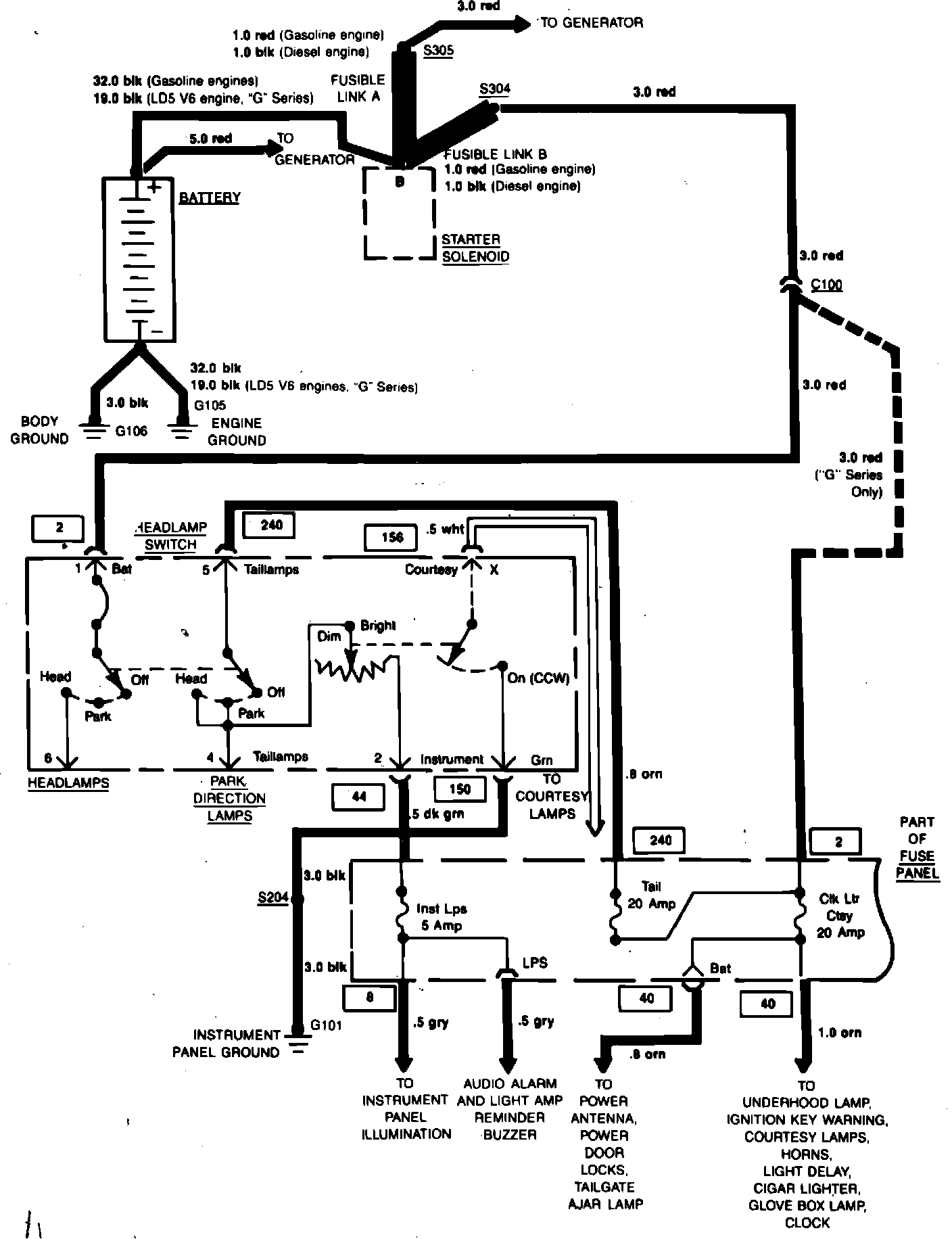

Headlamp Switch Wiring Circuit:
Headlamp Wiring Circuit:
