Chevy Truck
>>
1983
>>
EL Camino V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
System Diagram
>>
Vacuum Hose Routings
>>
2 Barrel Carburetor
>>
California
California

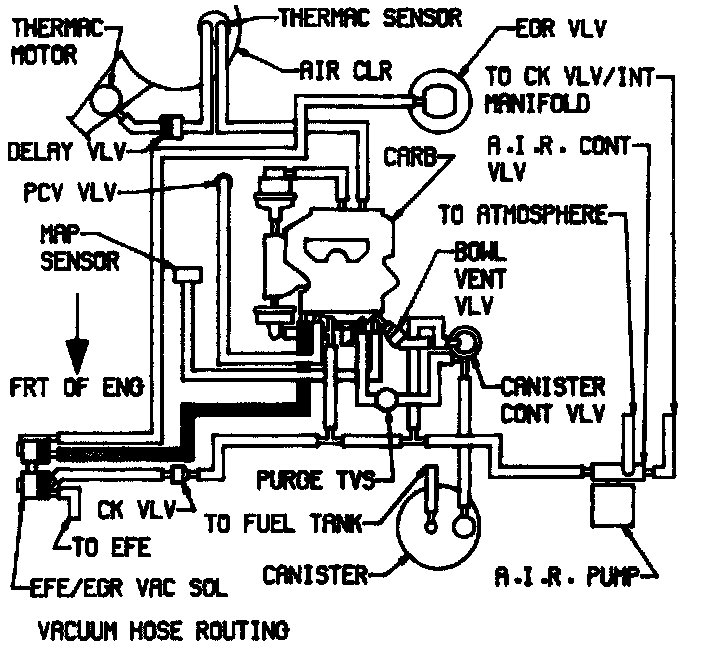

Vacuum Hose Routing:
