Electronic/Powertrain Control Module (ECM/PCM)
>>
ECM/PCM Outputs
ECM/PCM Outputs

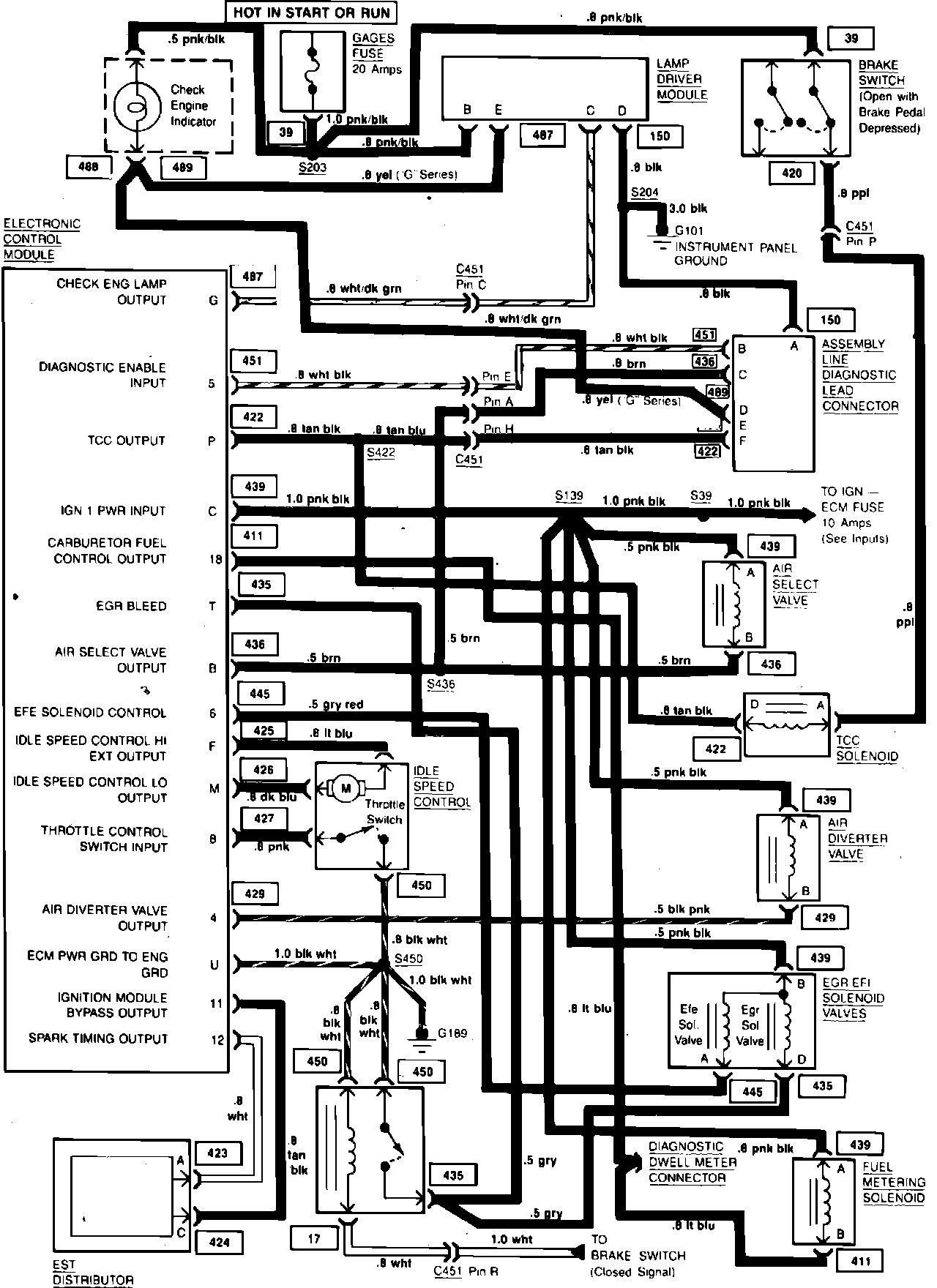

Computer Command Control (Outputs) Wiring Circuit:
Computer Command Control (Outputs) Wiring Circuit. (VIN A):
