Application Charts and Vacuum Hose Routings
Application Charts and Vacuum Hose Routings

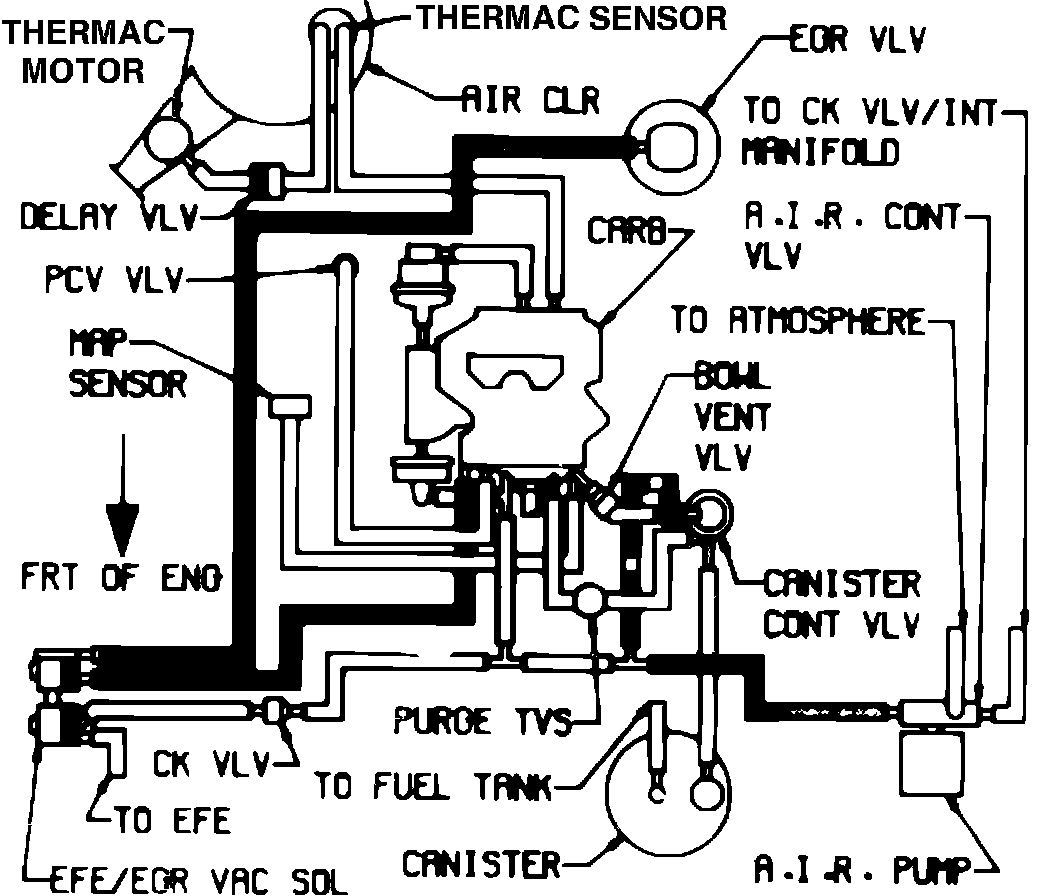

Fig. 16 Vacuum hose routing. 1983 V6-231:
