Vacuum and Vapor Hose Diagrams
>>
Vacuum Hose Routings
>>
4 Barrel Carburetor
4 Barrel Carburetor

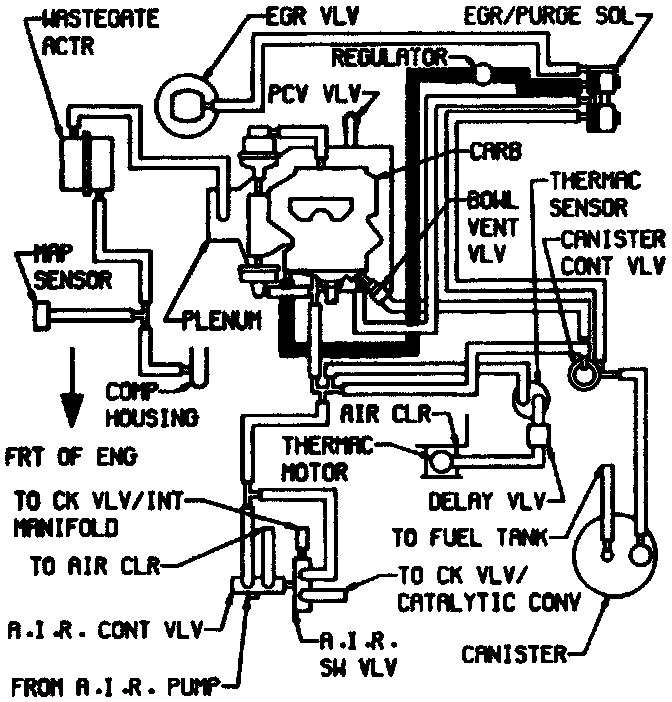

Vacuum Hose Routing:
