Choke Coil Lever

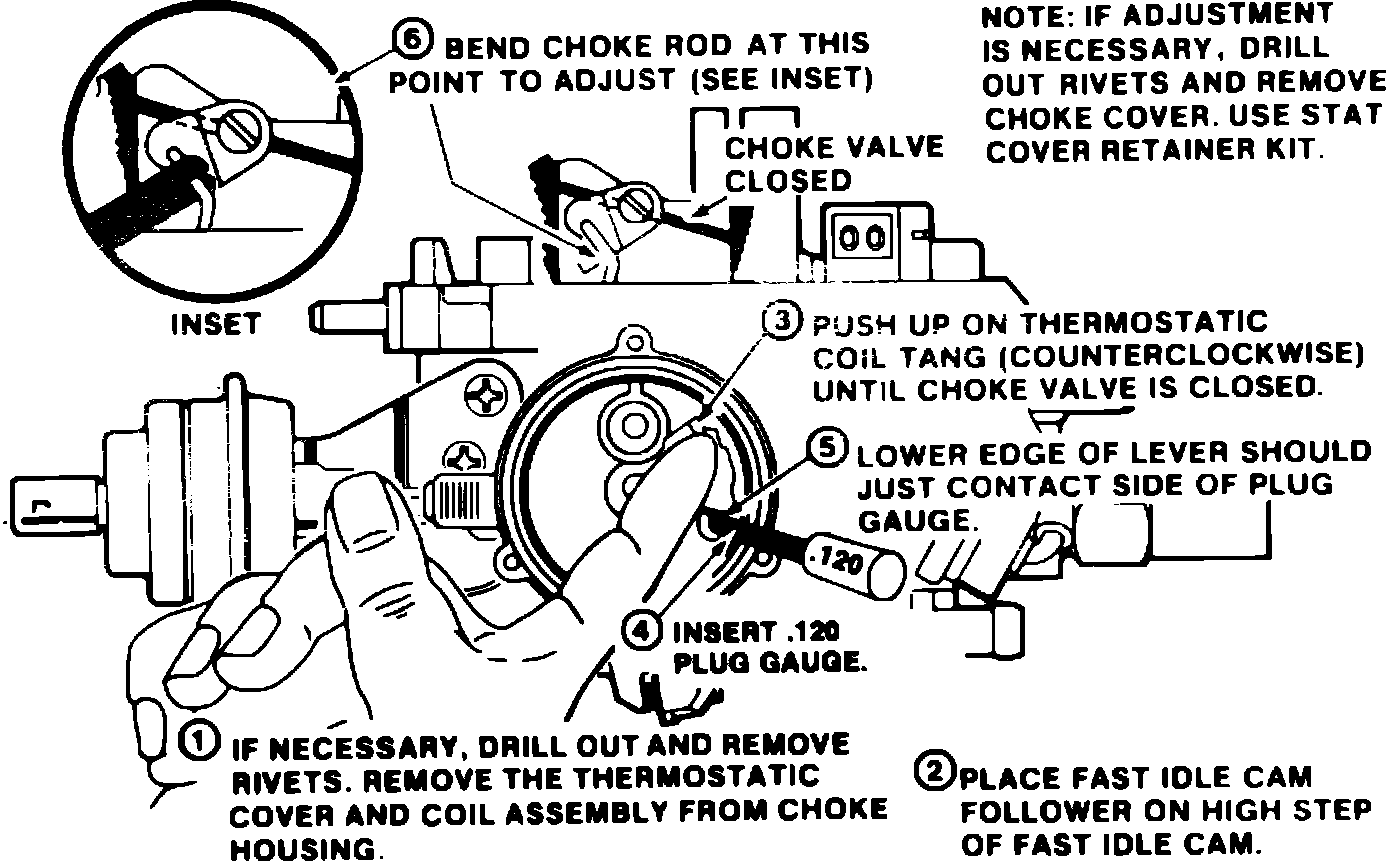

Fig. 5 Choke coil lever adjustment:

The choke coil cover is retained to the choke housing by three rivets. If remove is necessary, properly support float bowl and throttle body, then carefully center a suitable drill on rivet head. Drill only deep enough to remove rivet head, then drive remainder of rivet from choke housing using a suitable drift.
A service kit is available for choke cover installation. The choke cover should be removed only during major carburetor overhaul or if choke coil is damaged.
1. Remove thermostatic coil assembly, then push upward on coil tang until choke valve closes.
2. Insert gauge specified in Specifications Chart into choke coil housing hole. The lower edge of choke coil lever should just contact gauge.
3. To adjust, bend choke rod as required, Fig. 5.
