Compressor Controls

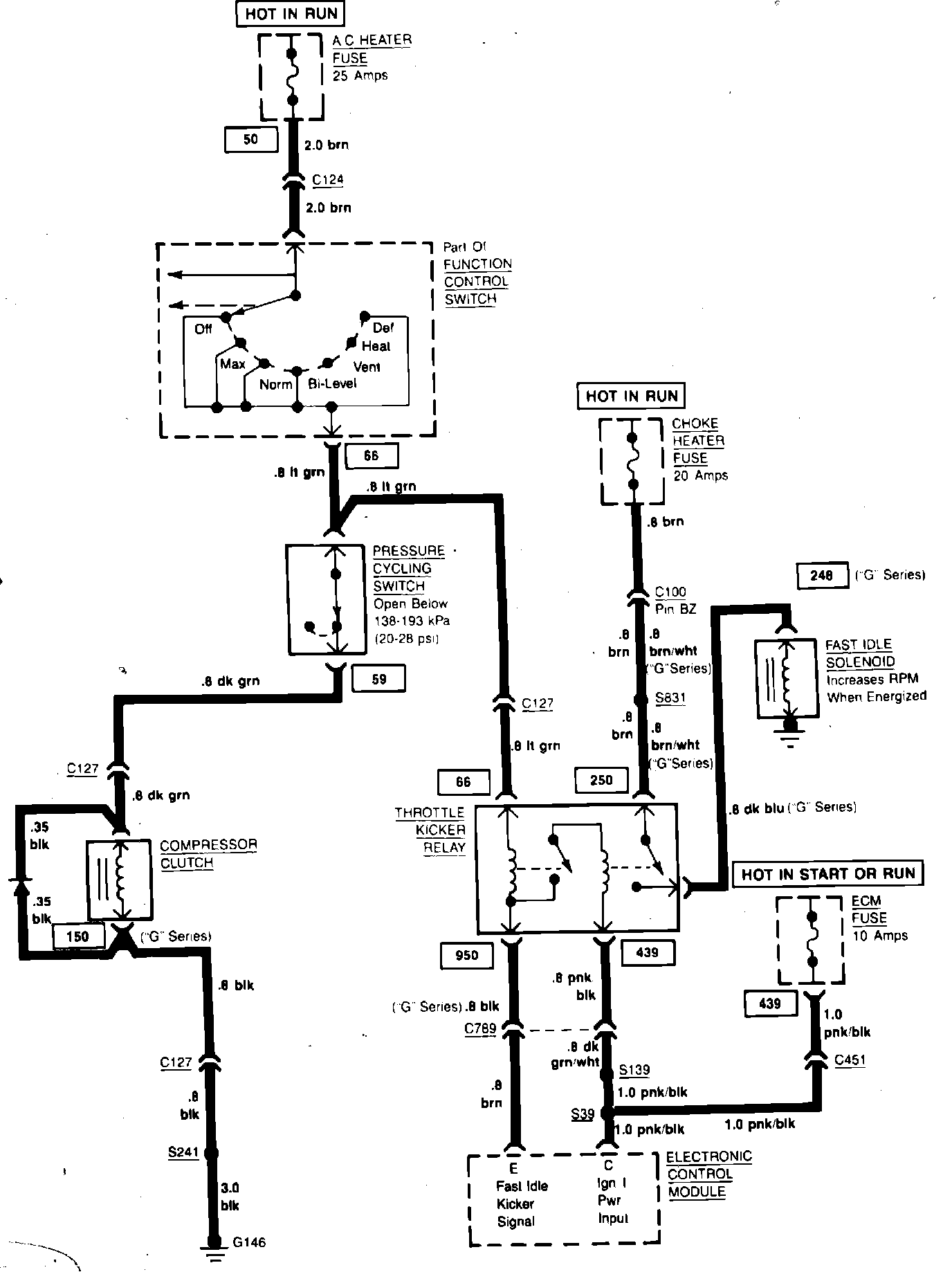

Air Conditioning (Compressor Controls) Wiring Circuit:
Air Conditioning (Compressor Controls) Wiring Circuit:
