Chevy Truck
>>
1983
>>
EL Camino V8-305 5.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel
Instrument Panel

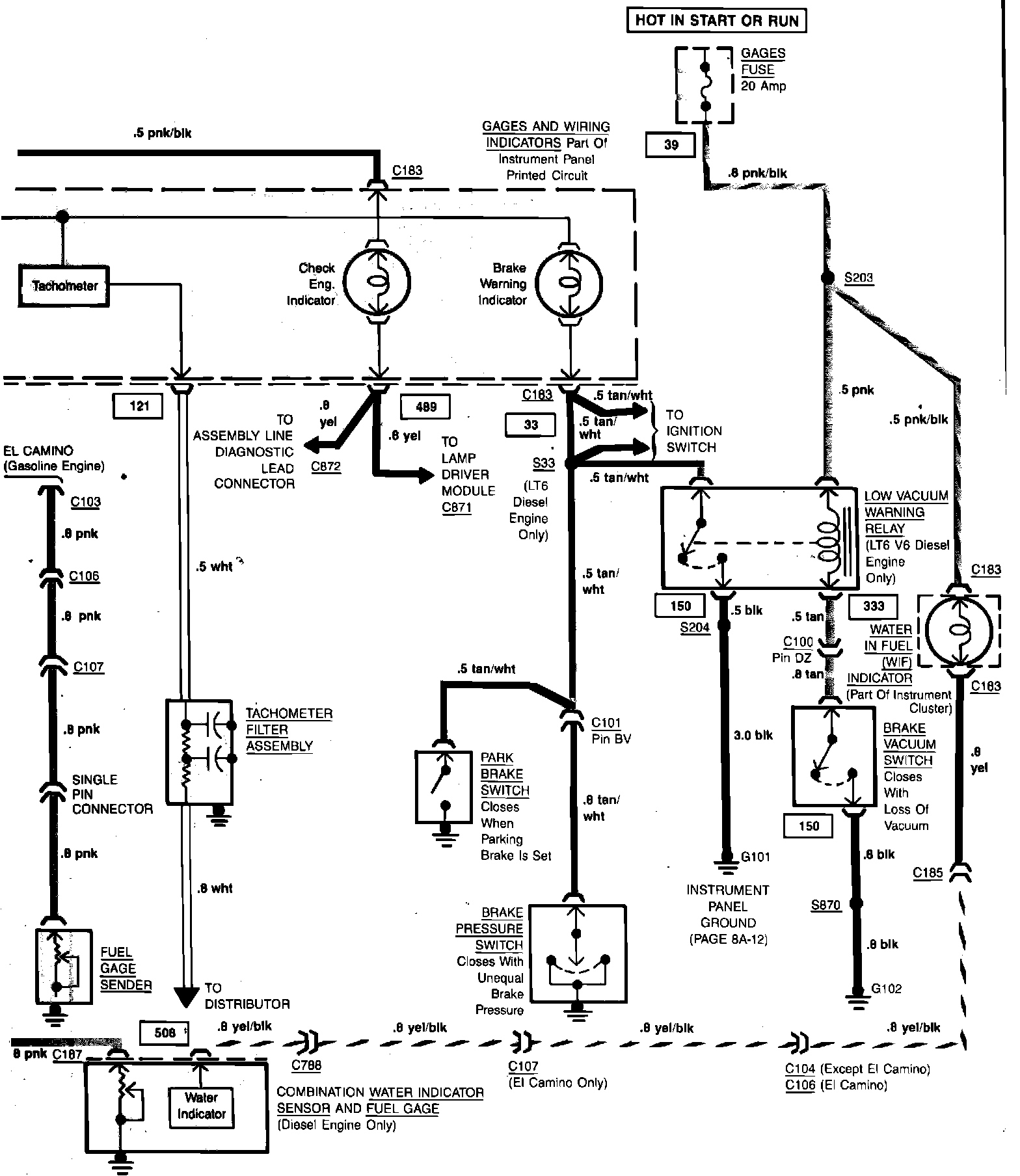

Instrument Panel Wiring Circuit W/Gauges:

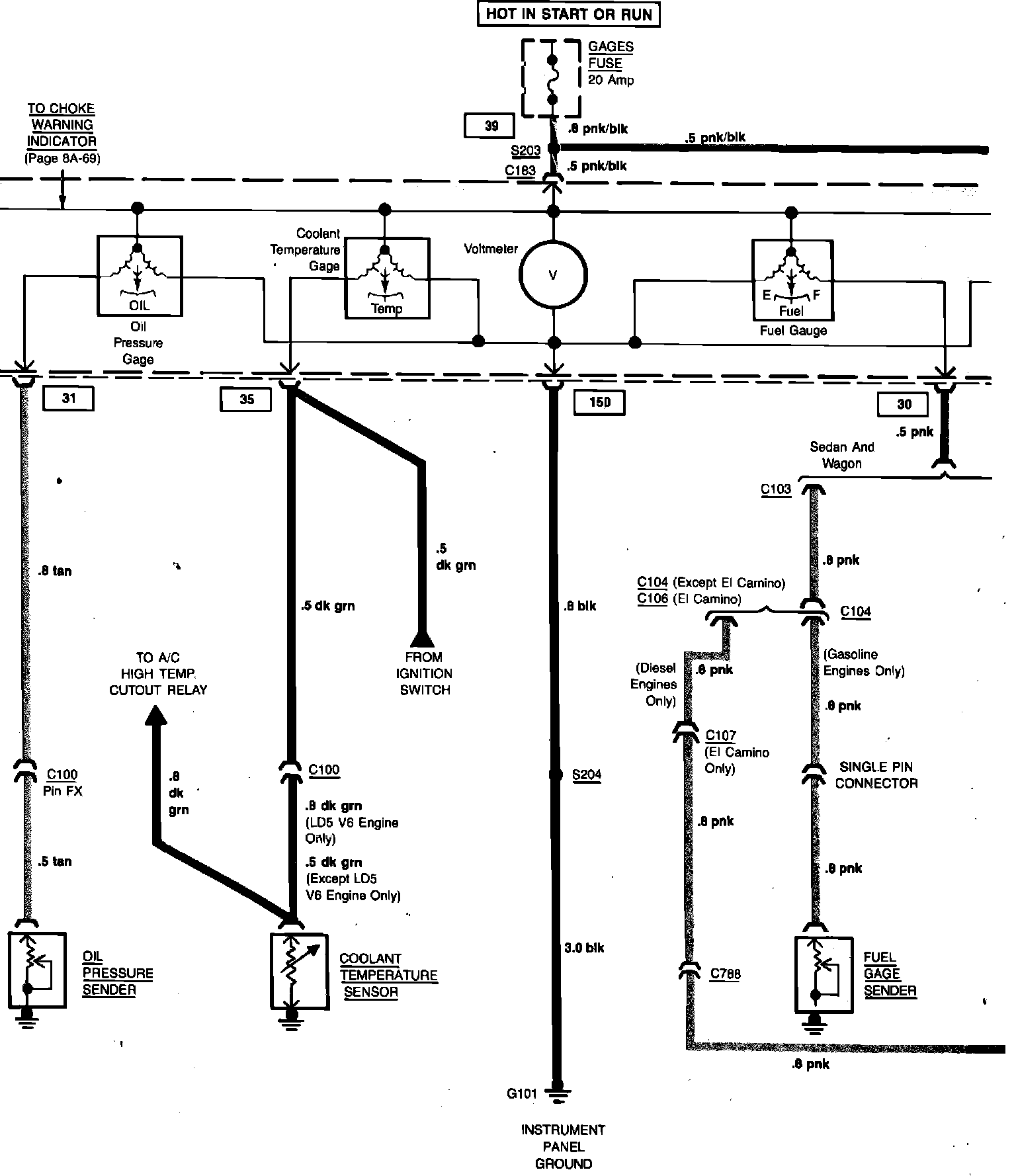

Instrument Panel Wiring Circuit W/Gauges:
