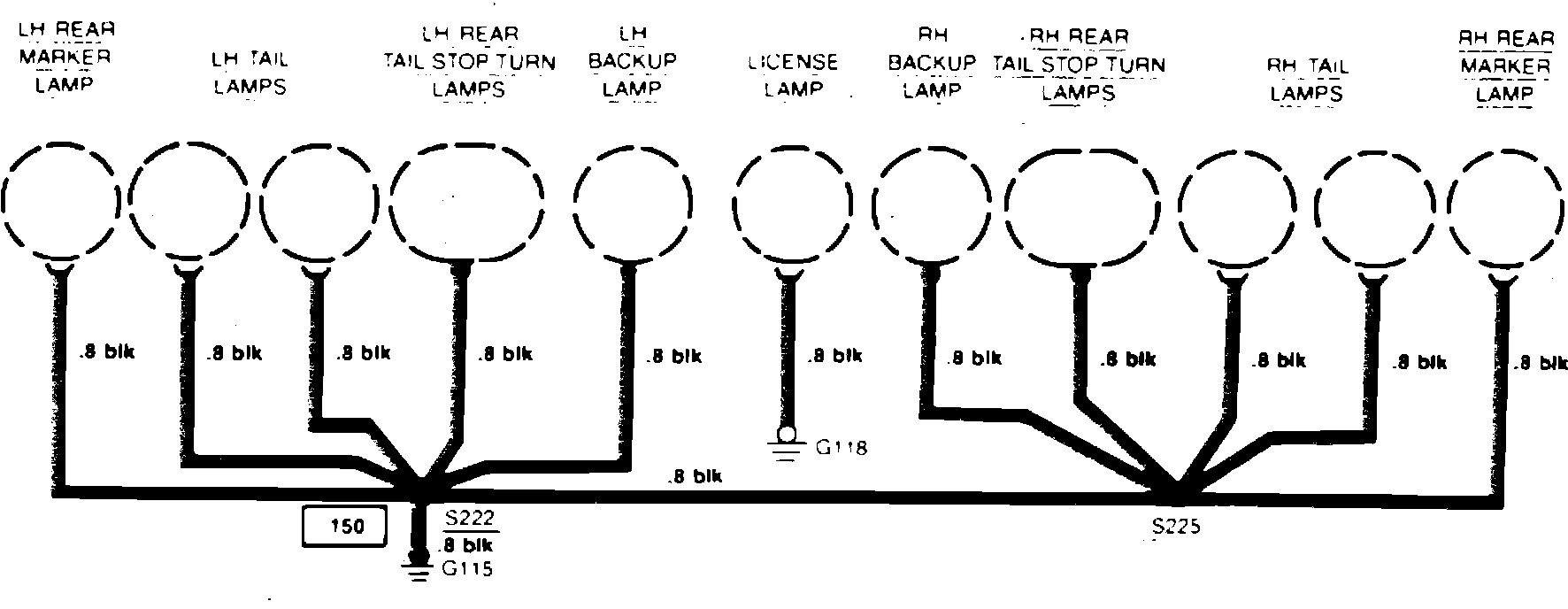

Rear Lighting Circuit
Rear Lighting Circuit
Ground Distribution (Front Lighting Circuit):
Ground Distribution (Front Lighting Circuit):
