Fig. 26 V8-305 Caballero & El Camino Federal
Fig. 26 V8-305 Caballero & El Camino Federal

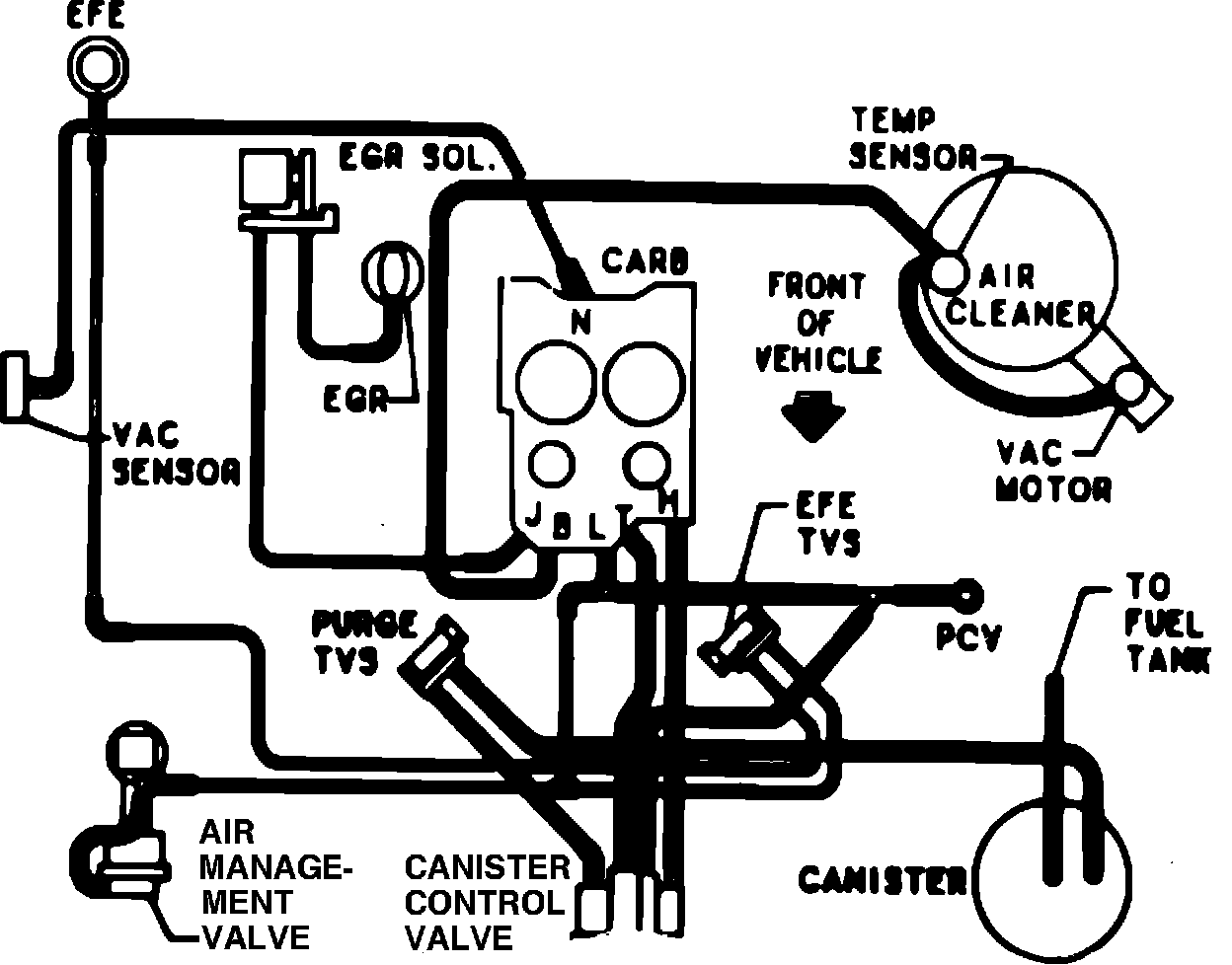

Fig. 26 Vacuum hose routing. 1983 V8-305 Caballero & El Camino Federal:
