Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1983
>>
EL Camino V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Glow Plugs/Fuel Control
Glow Plugs/Fuel Control

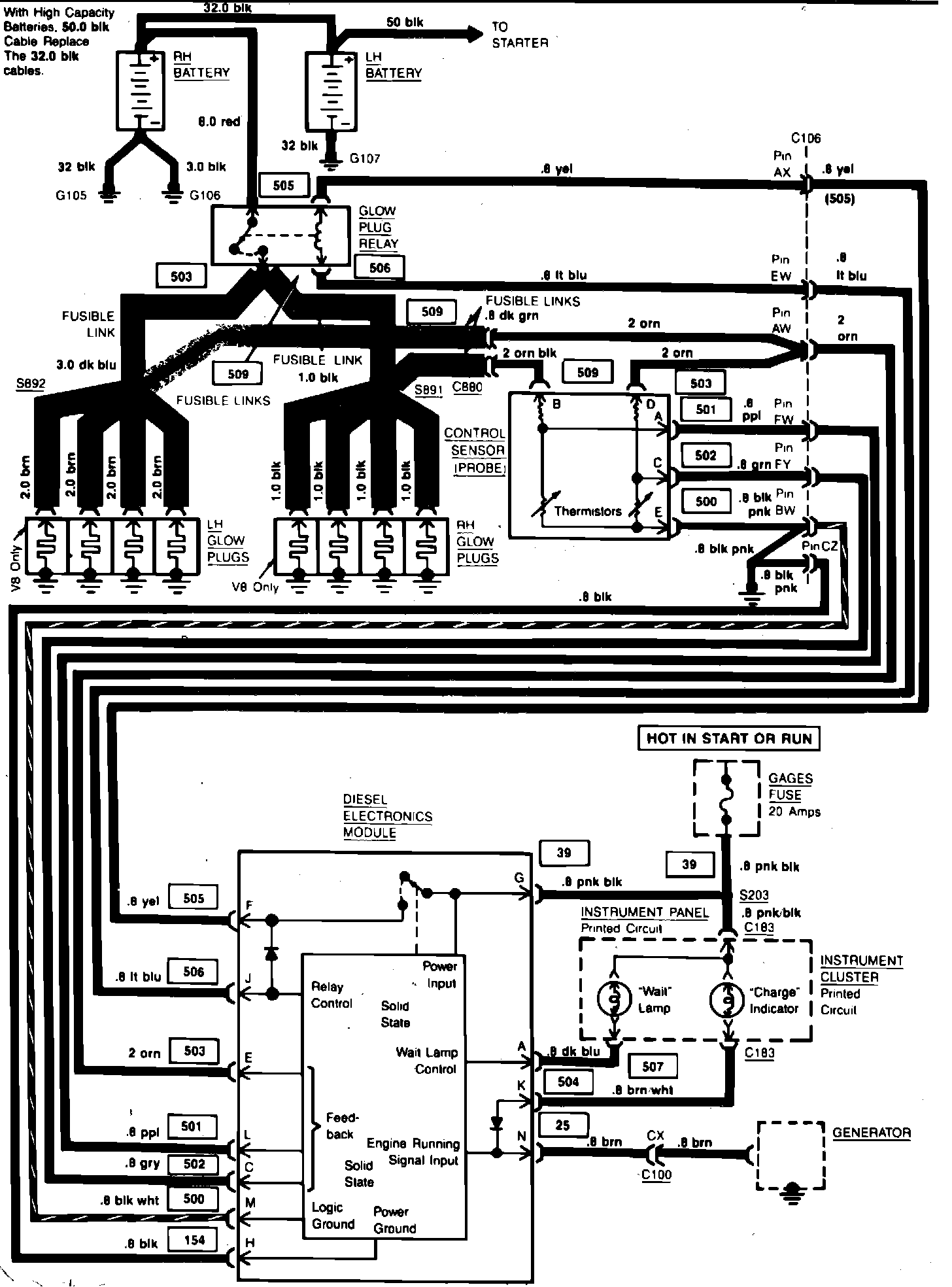

Glow Plug Wiring Circuit:
Glow Plug Wiring Circuit:
