Ignition Switch Level Diagrams

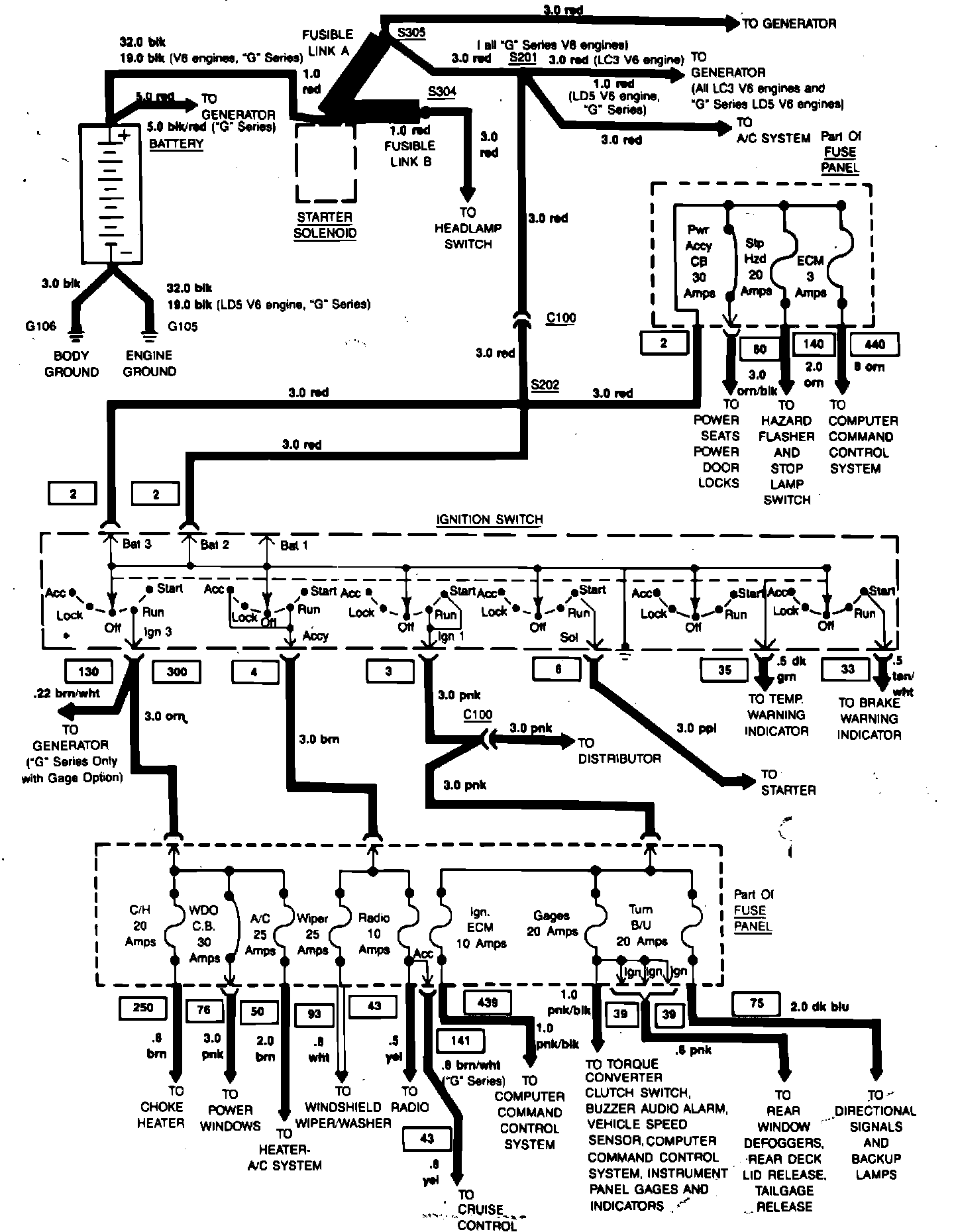

Ignition Switch Wiring Circuit:

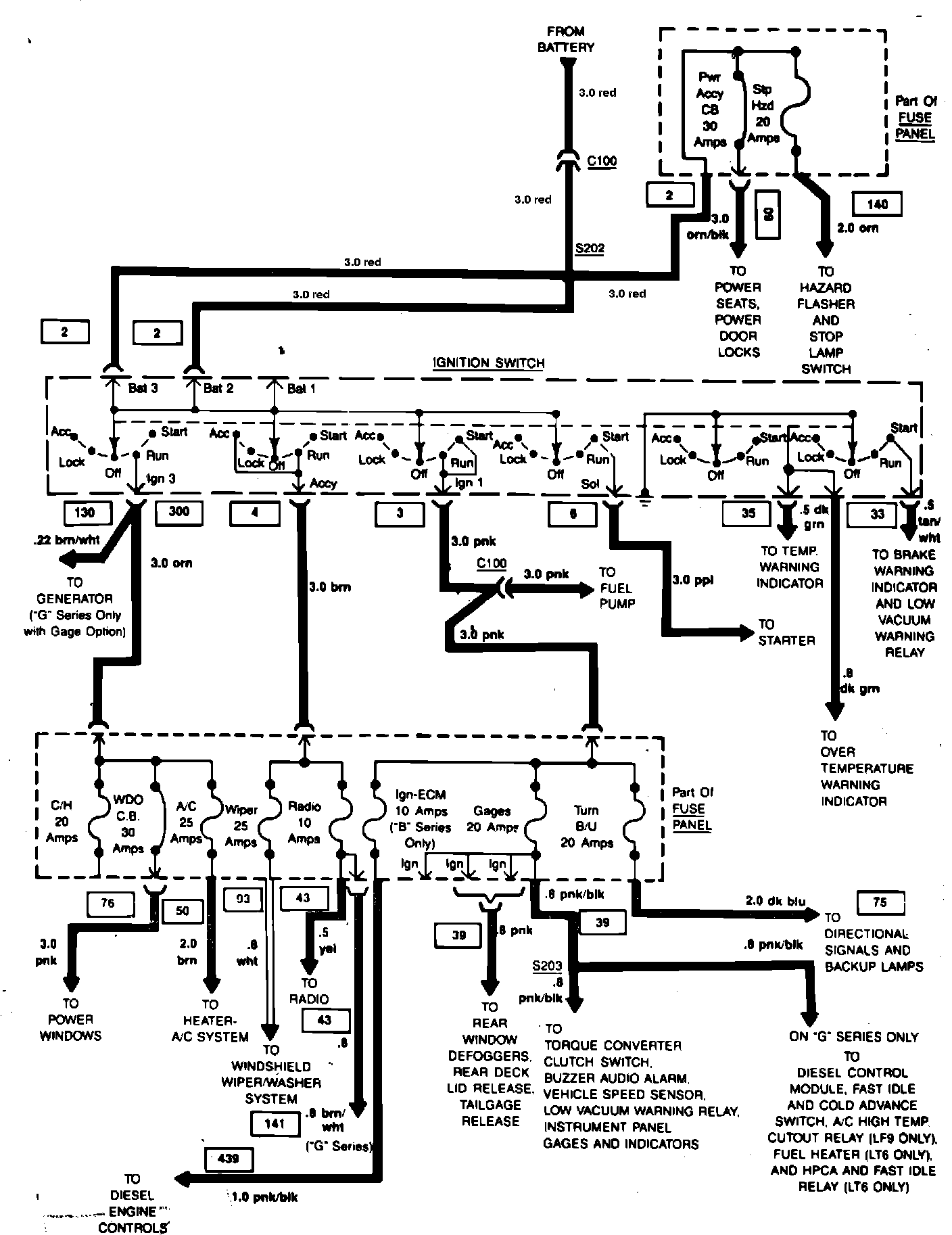

Ignition Switch Wiring Circuit:



Ignition Switch Wiring Circuit:



Ignition Switch Wiring Circuit:
