Engine Mount: Service and Repair

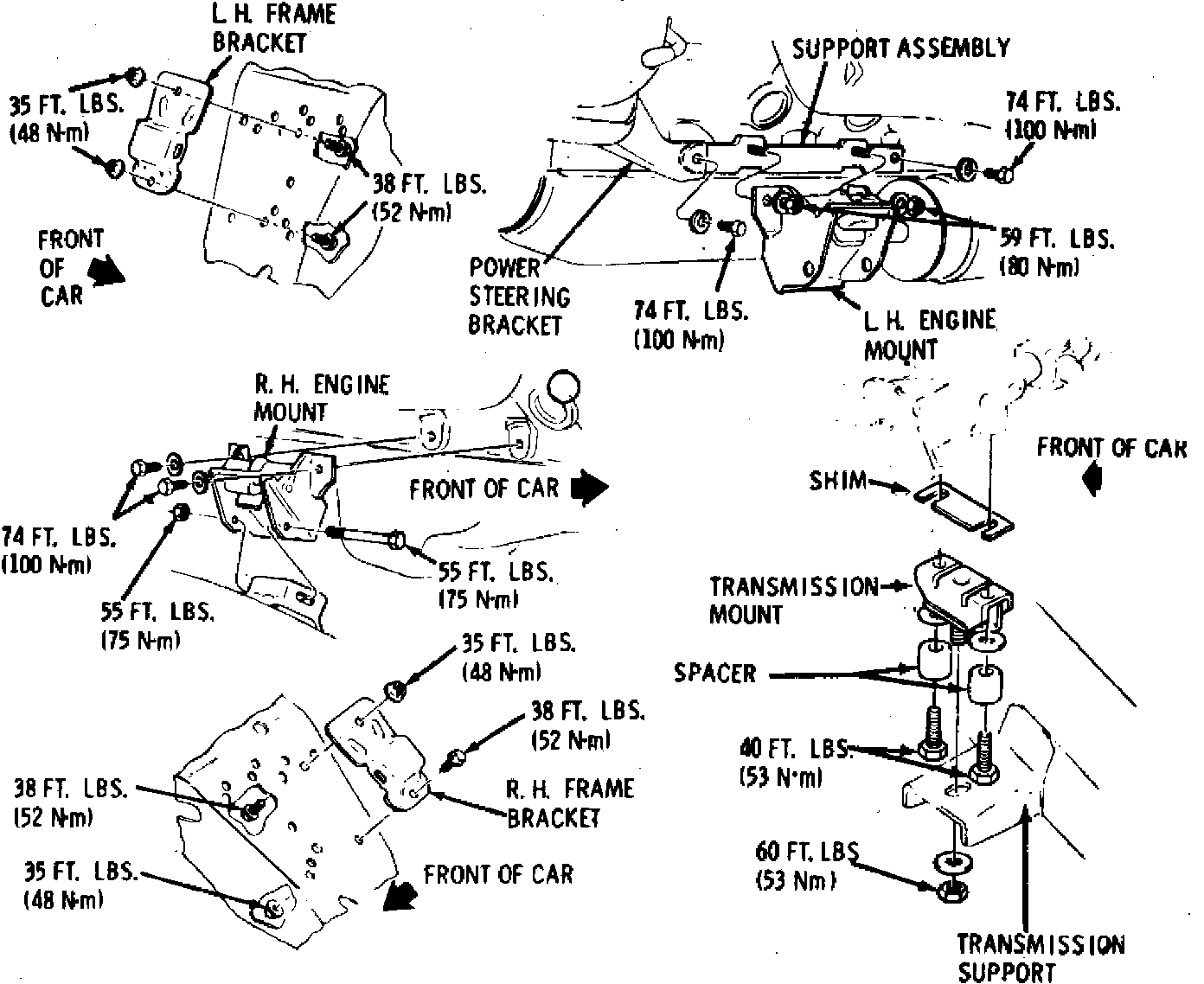

Fig. 22 Engine & transmission mount replacement (typical):

1. Raise and support vehicle.
2. Support engine, then remove engine mount through bolts.
3. Raise engine slightly, then remove engine mount attaching bolts as shown, Fig. 22.
4. Reverse procedure to install, torquing bolts to specifications.
