Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1983
>>
EL Camino V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Without Electronic Climate Control
Without Electronic Climate Control

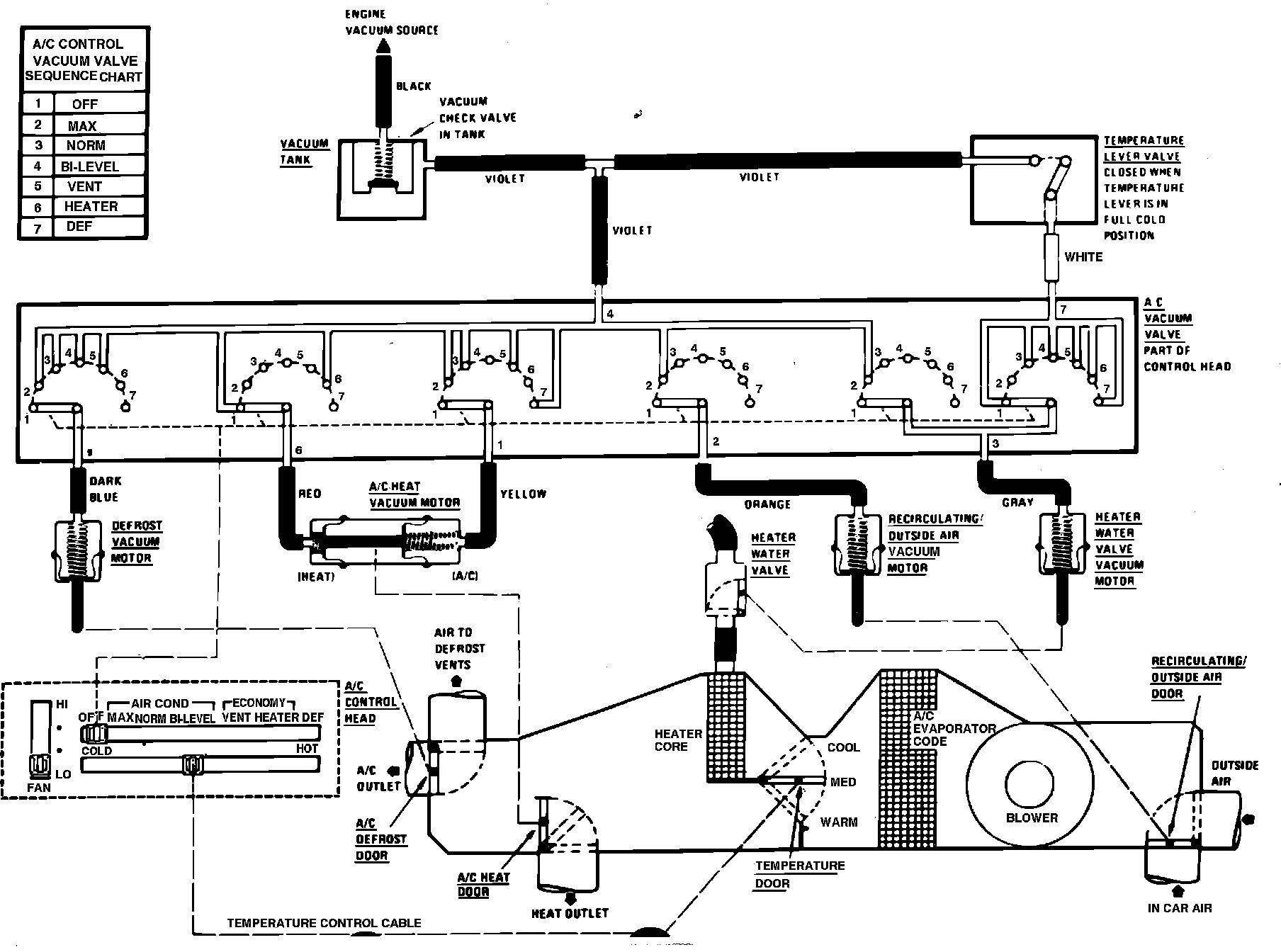

Air Conditioning & Heater Vacuum Circuit (Less Electronic Climate Control):
