Throttle Valve or Detent Cable Adjust

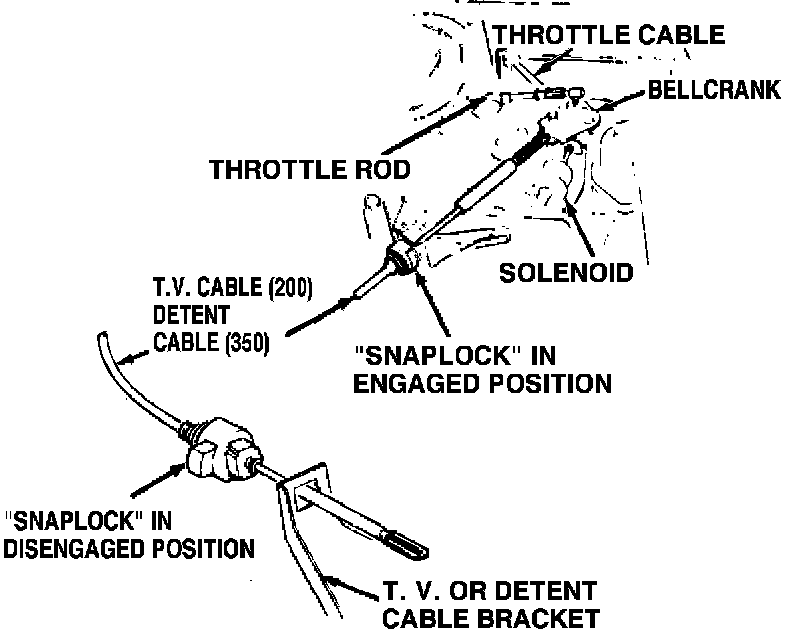

Fig. 79 Throttle valve or detent cable adjustment:

1. Remove throttle rod from bell crank, Fig. 79.
2. Push snap lock to disengaged position.
3. Rotate bell crank to full throttle stop position and push in snap lock until flush with cable end fitting. Release bell crank.
4. Connect the throttle rod.
