Glow Plug: Testing and Inspection

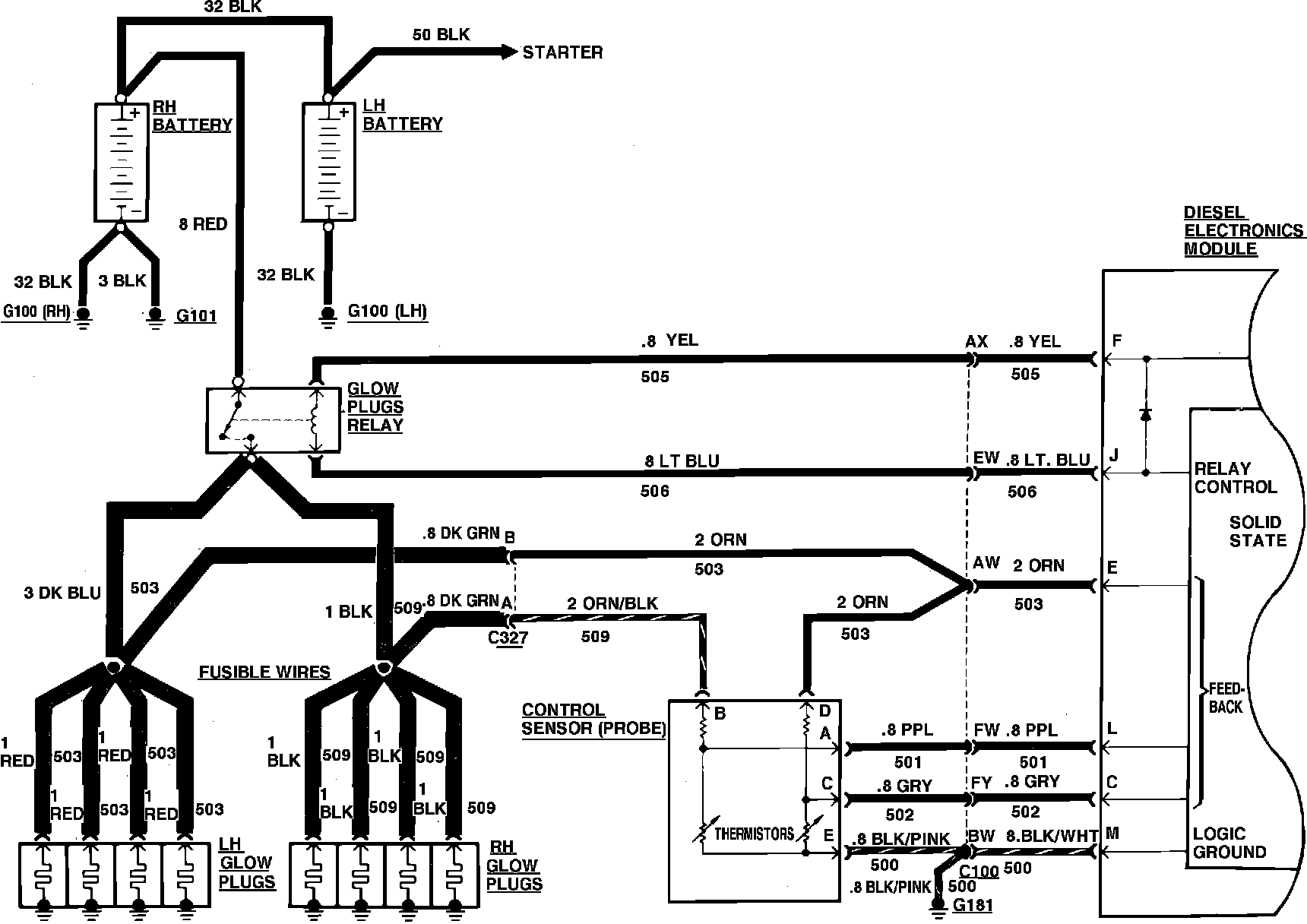

Fig. 8 Glow plug system wiring diagram (Part 1 of 2). 1983

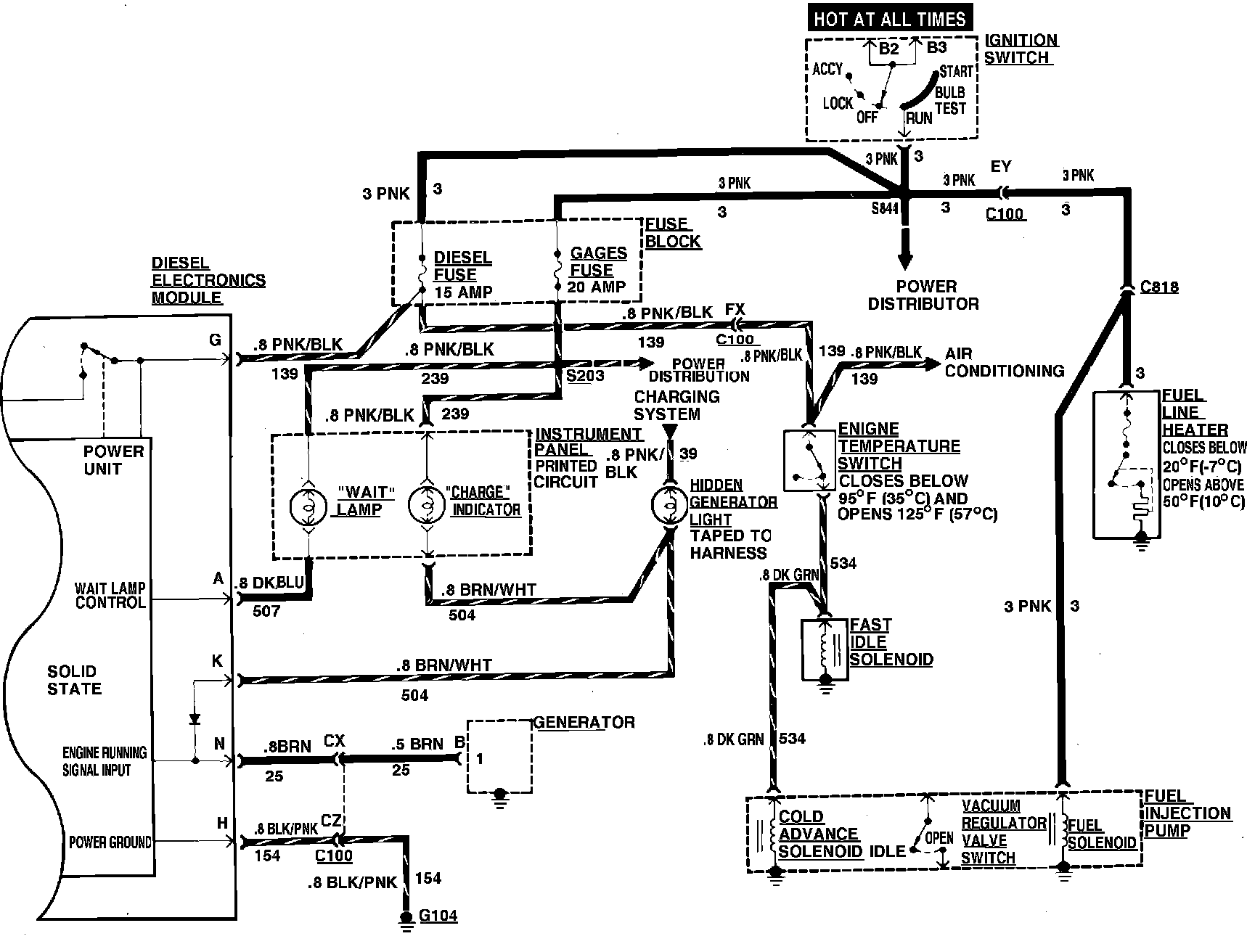

Fig. 8 Glow plug system wiring diagram (Part 2 of 2). 1983

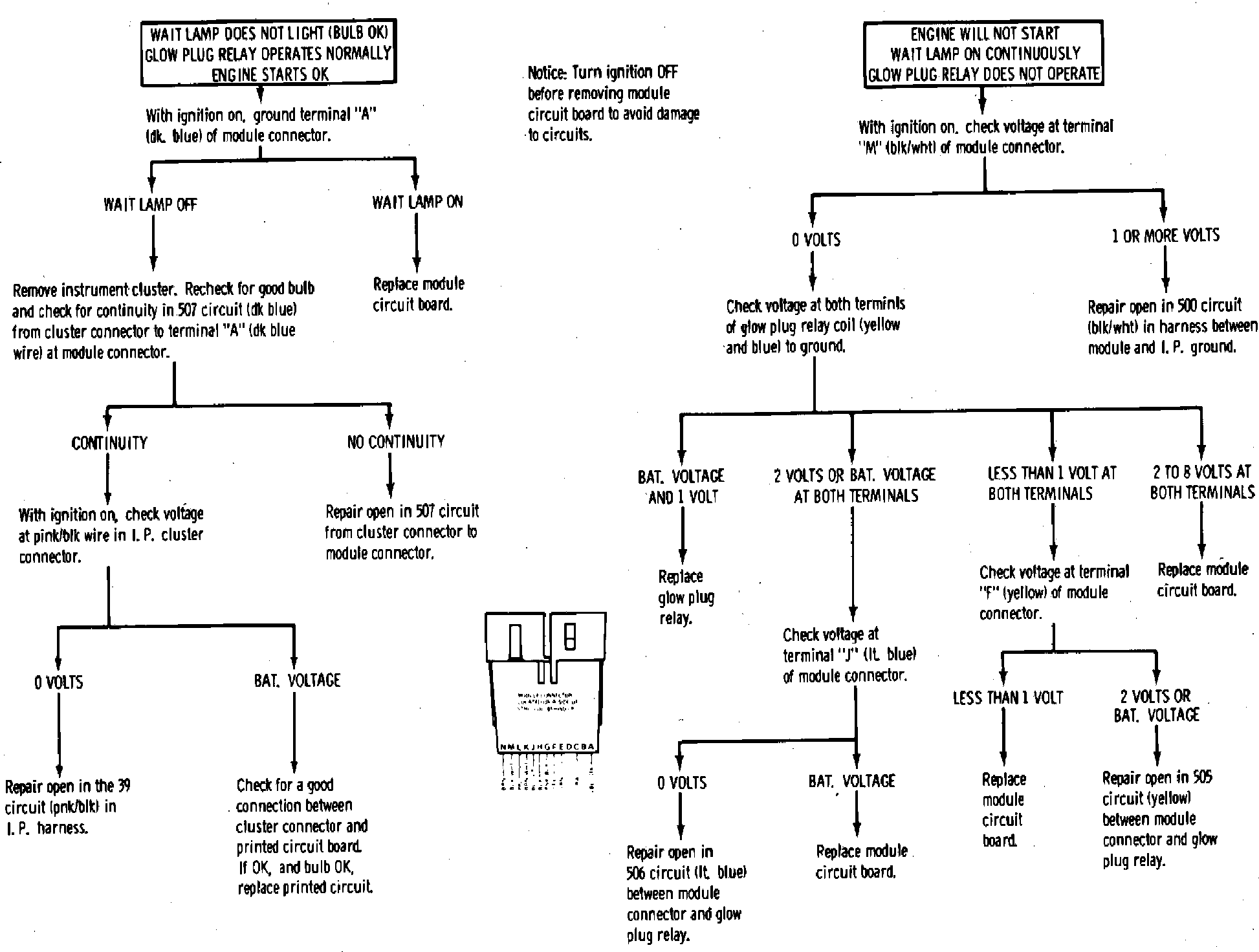

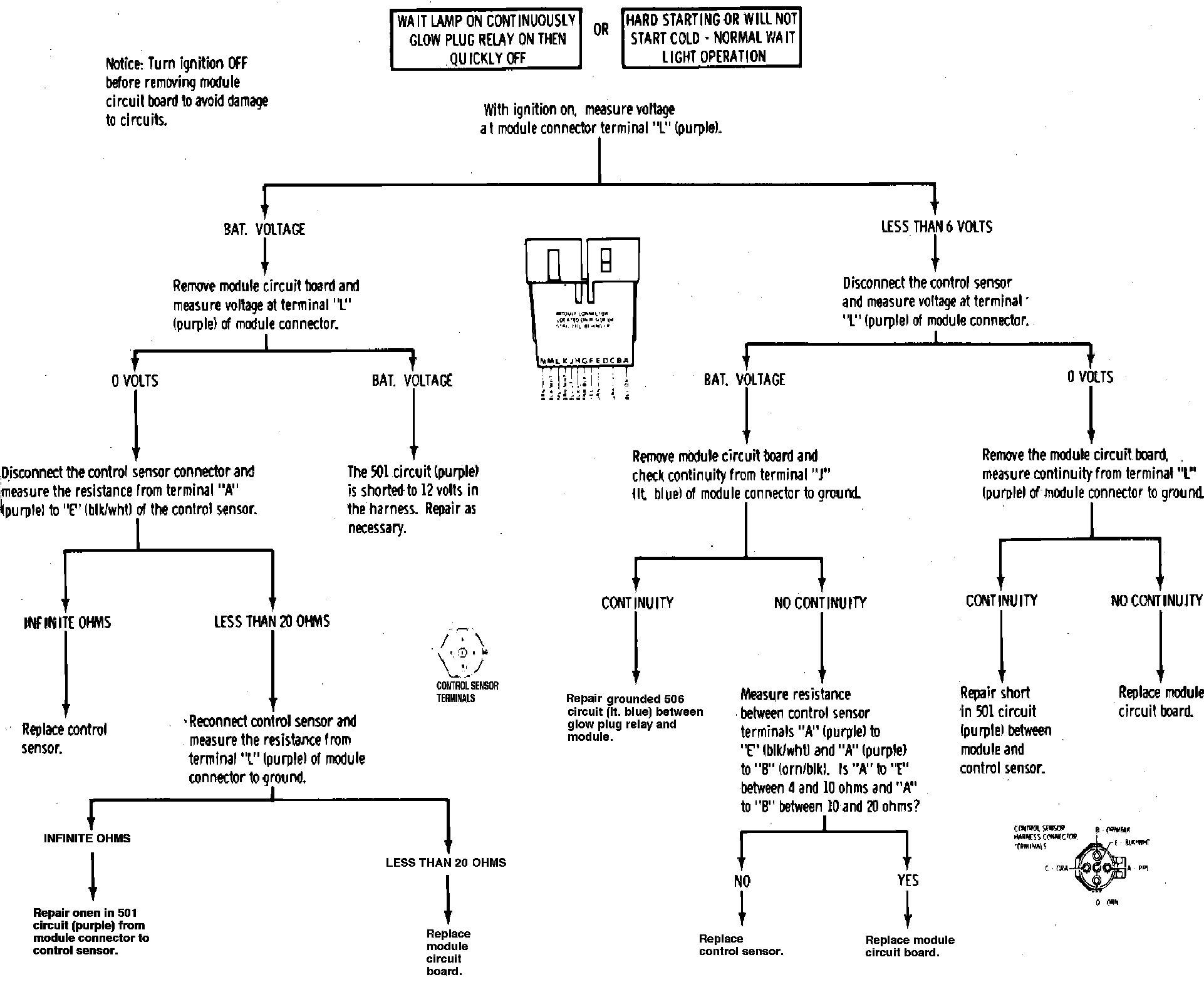

Fig. 9 Glow plug system diagnosis chart. 1983

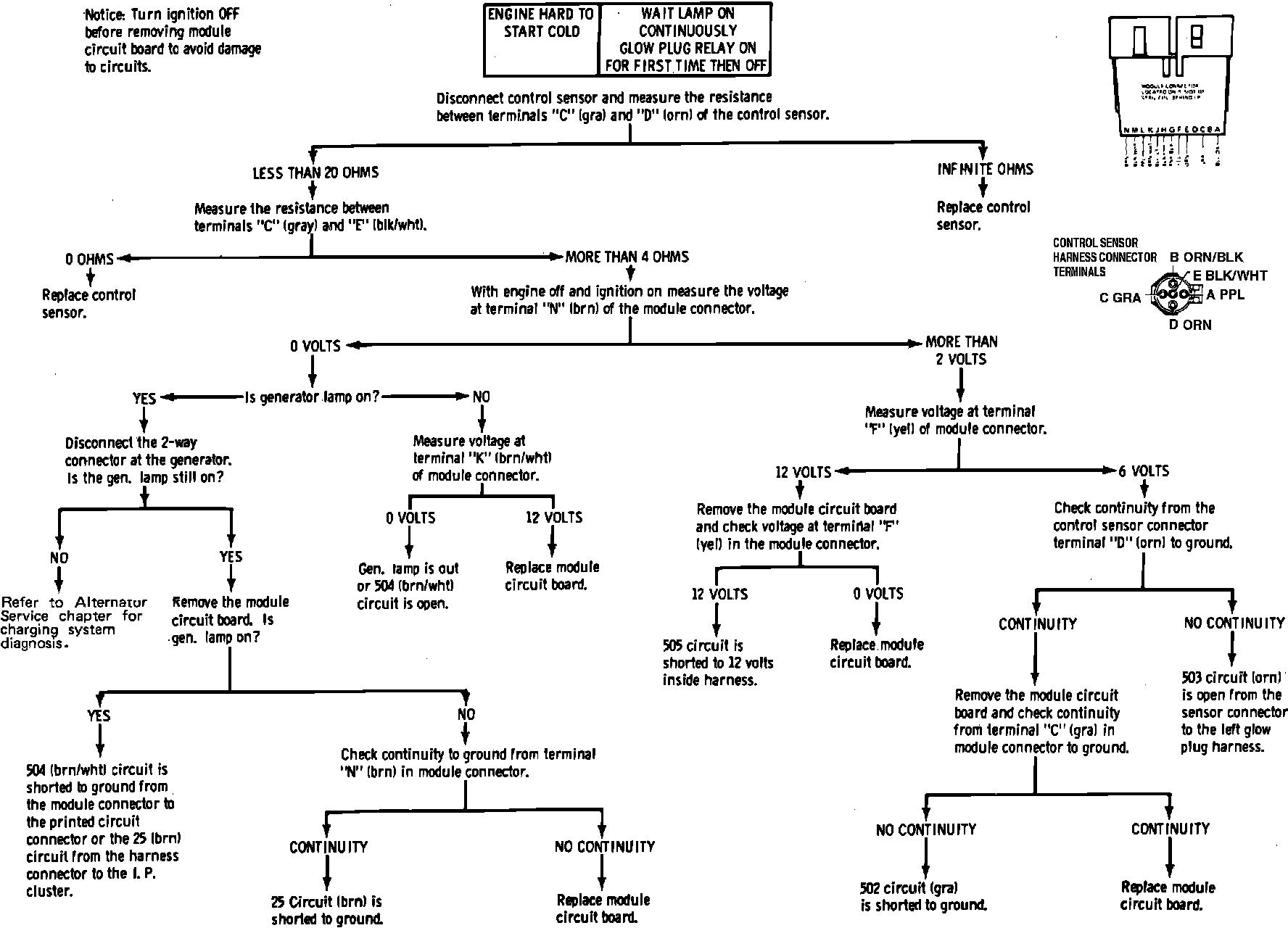

Fig. 10 Glow plug system diagnosis chart. 1983

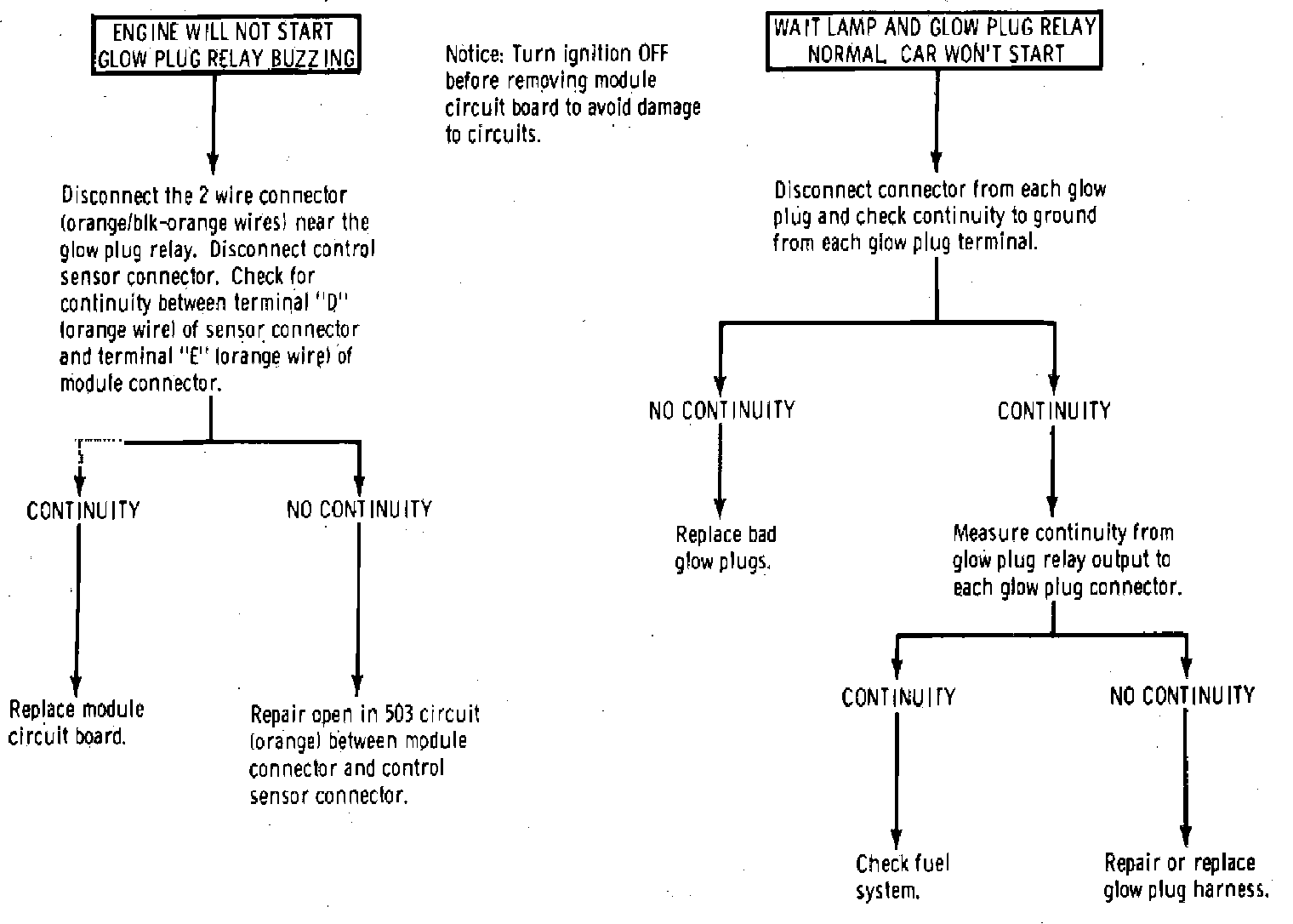

Fig. 11 Glow plug system diagnosis chart. 1983

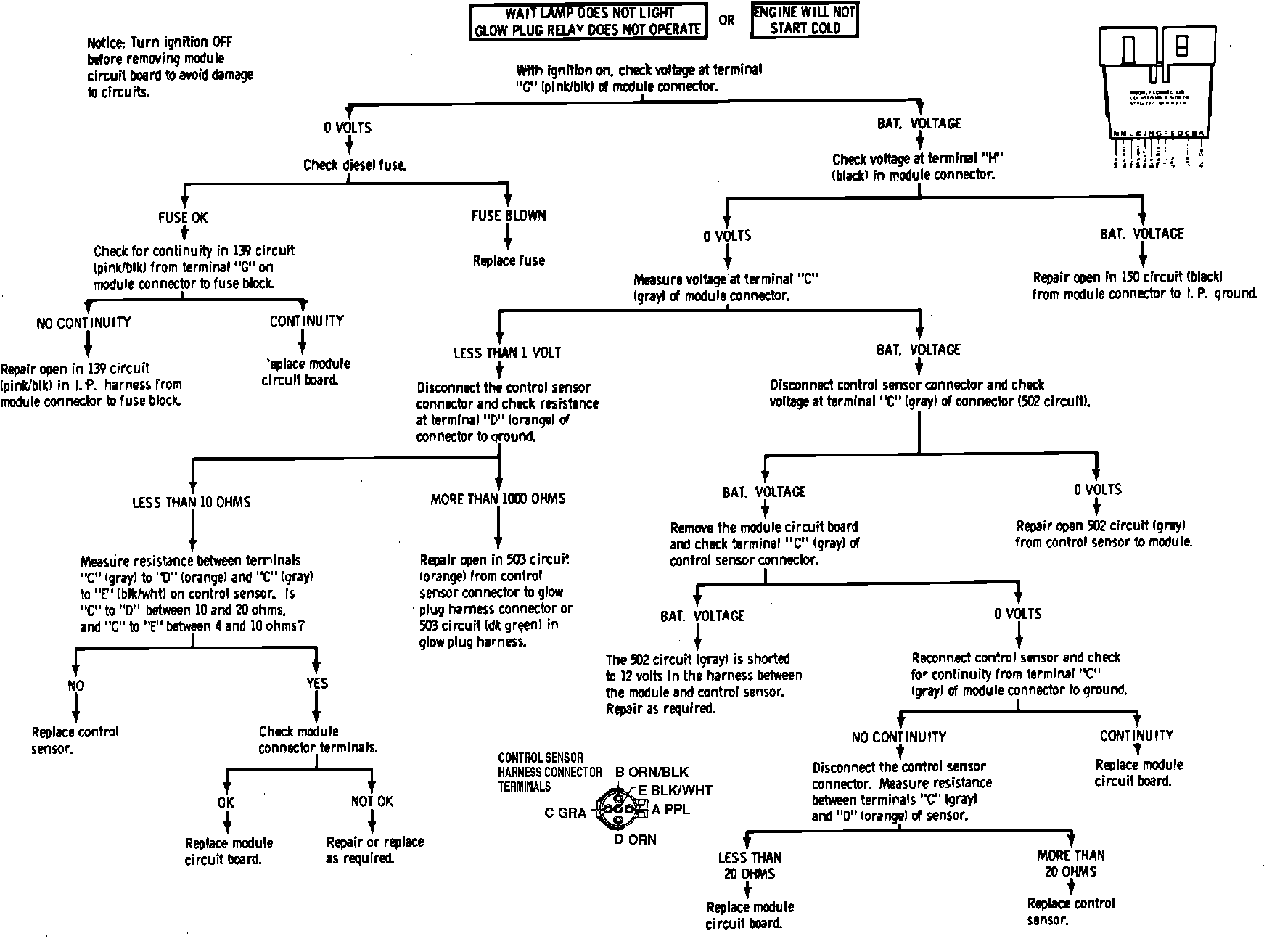

Fig. 12 Glow plug system diagnosis chart. 1983

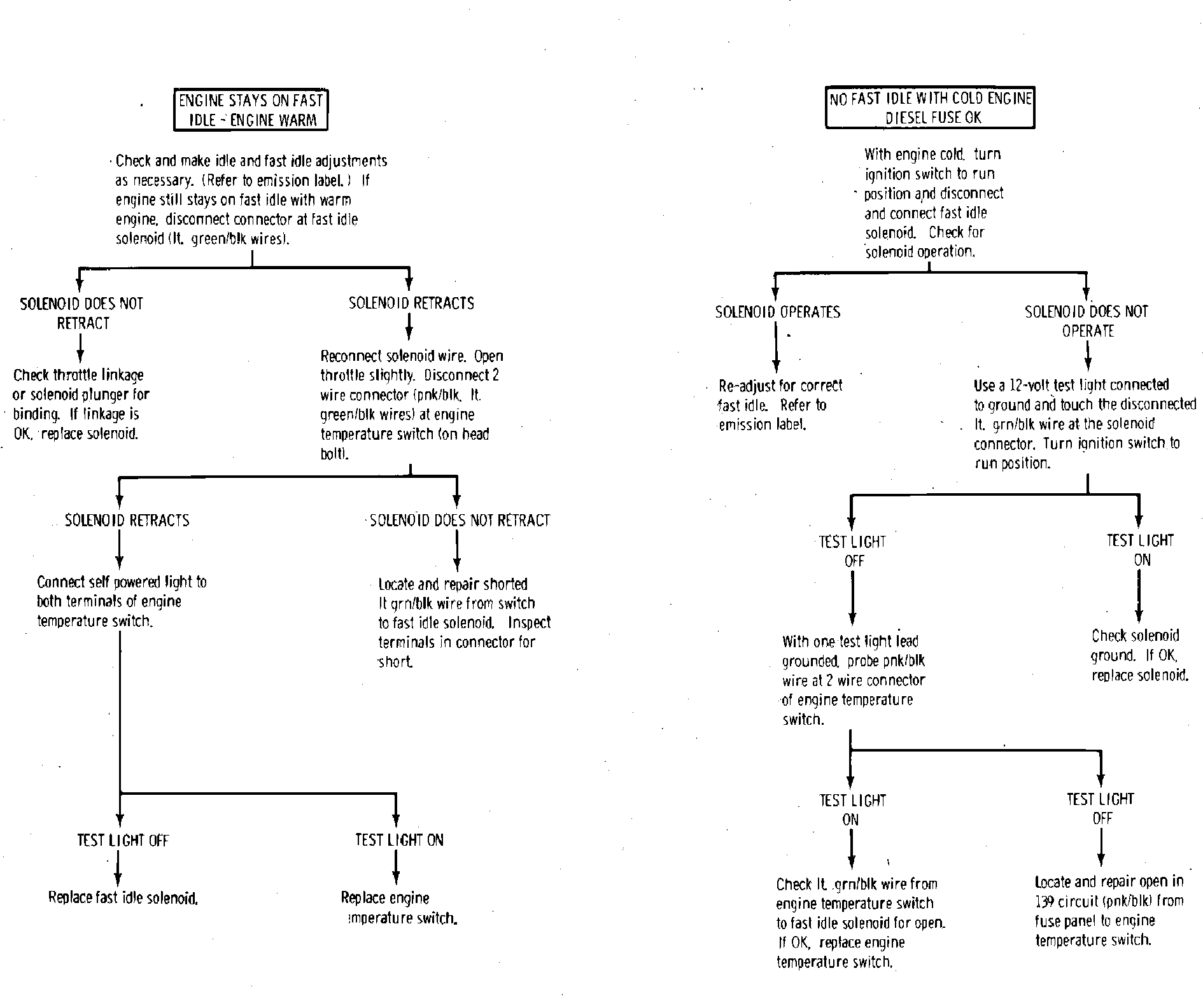

Fig. 13 Glow plug system diagnosis chart. 1983

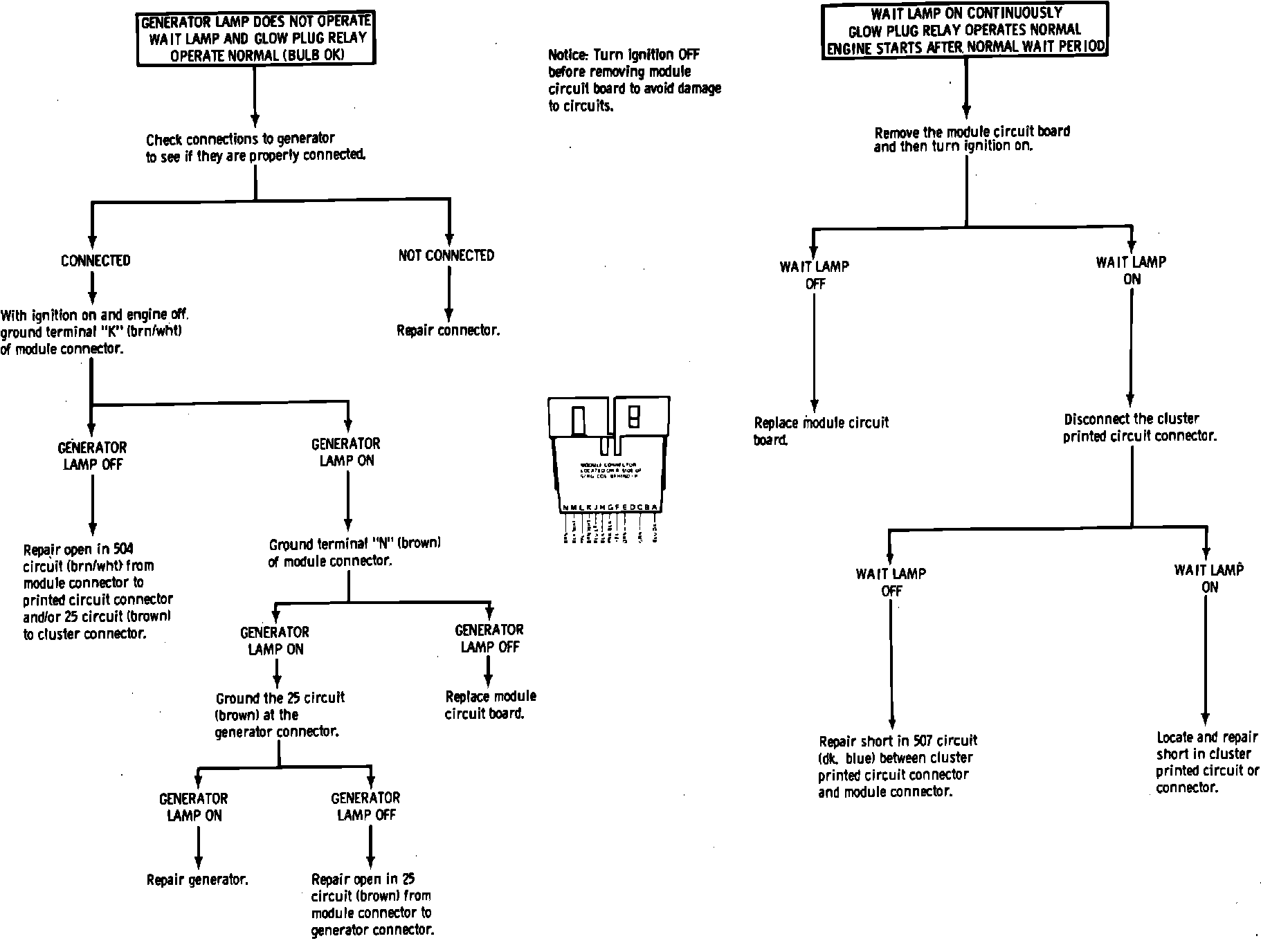

Fig. 14 Glow plug system diagnosis chart. 1983






Fig. 15 Glow plug system diagnosis chart. 1983




1980---81
Refer to wiring diagram, Fig. 16 and Figs. 17 through 21, for troubleshooting and diagnosis procedures for the 1980---81 glow plug system.
