Diesel Data: Automotive Repair
Home >> Chevy Truck >> 1983 >> G 10 1/2 Ton Van L6-250 4.1L VIN D 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Carburetor >> Service and Repair >> Rochester Varajet 2SE & E2SE Series >> Adjustment Specifications

Adjustment Specifications

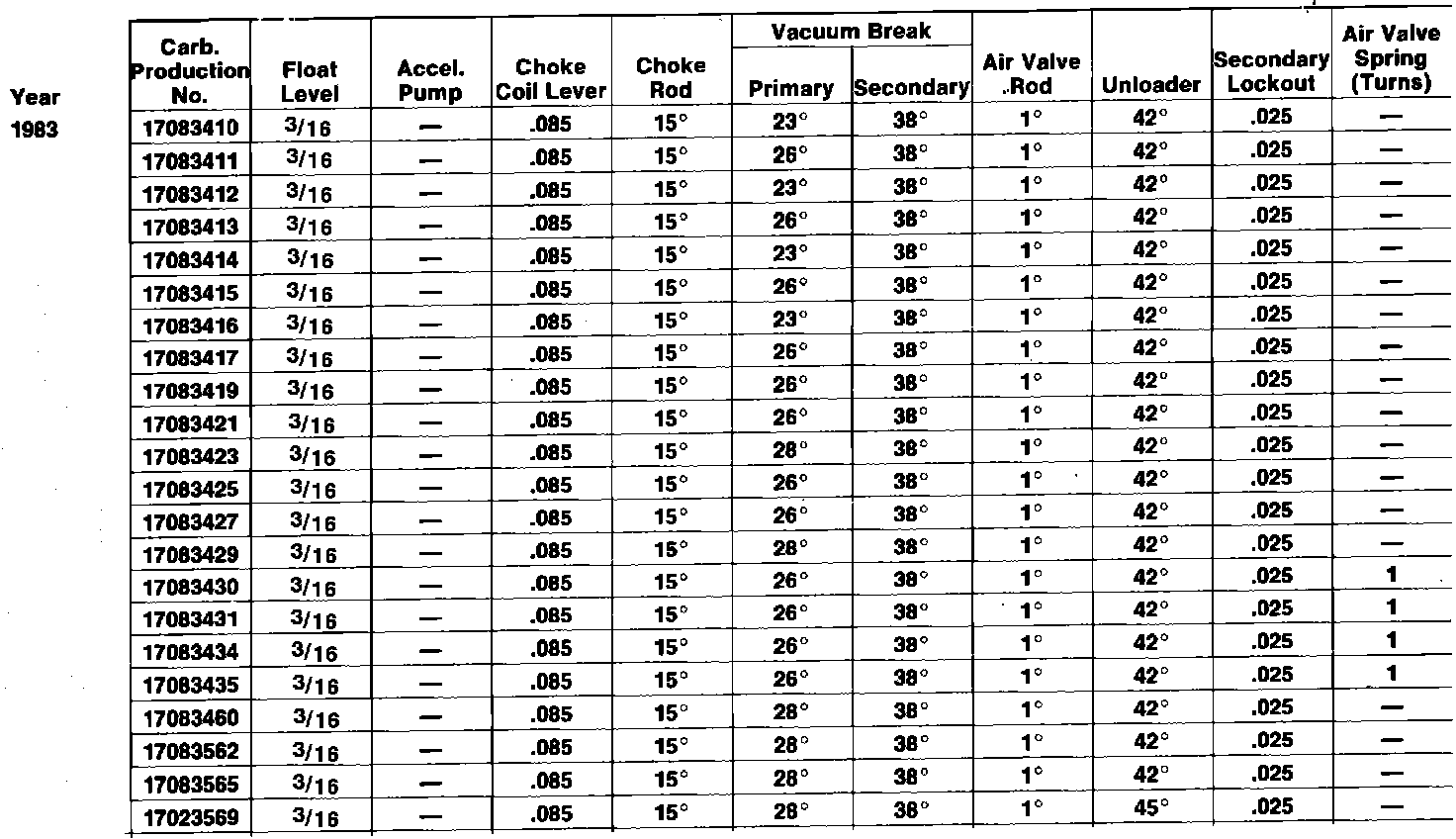

Fig. 3 ADJUSTMENT SPECIFICATIONS:
