Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
System Diagram
>>

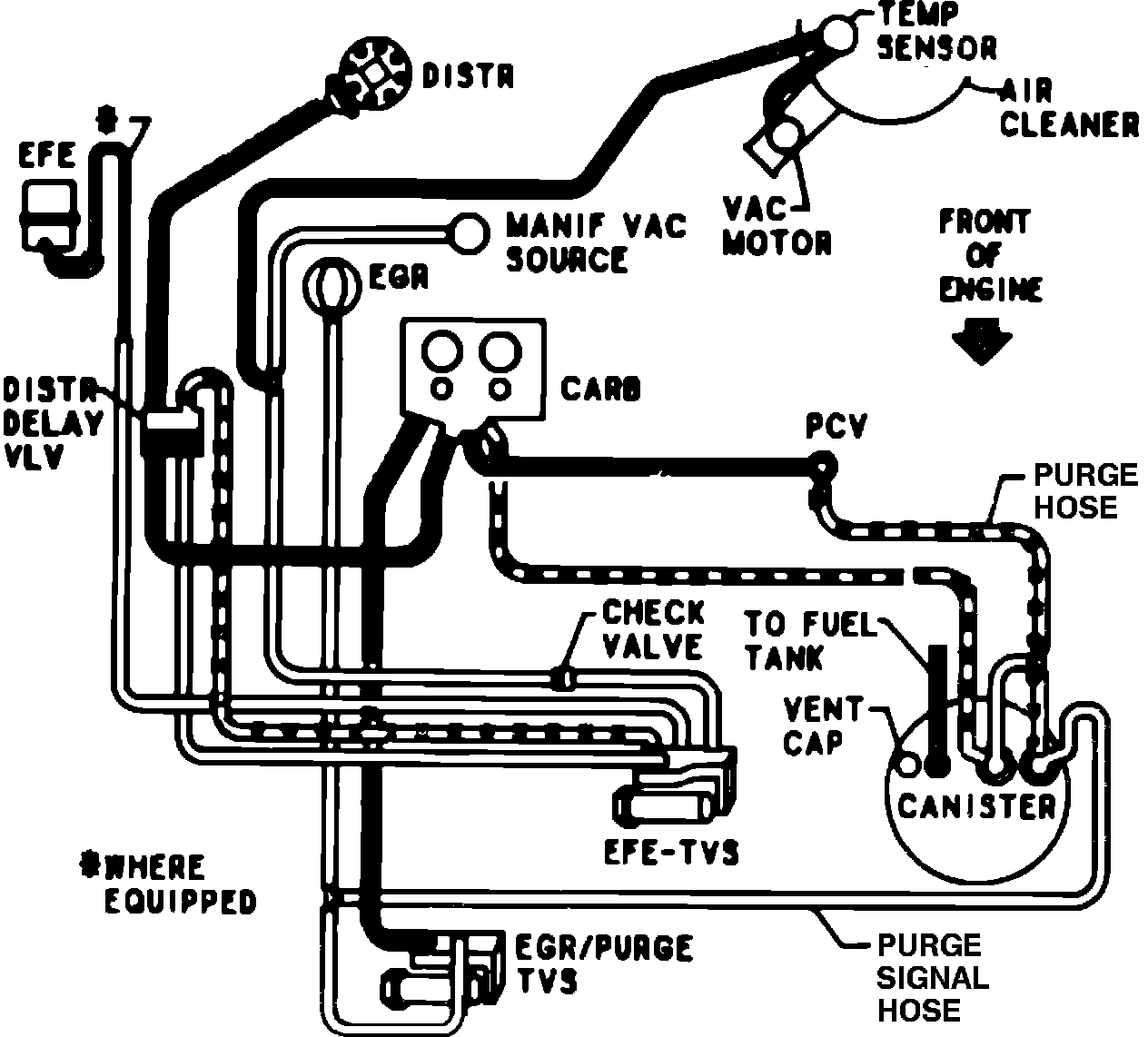

Fig. 32 C10 W/ Man. Trans. Less Optional Fuel Tank
Fig. 32 C10 W/ Man. Trans. Less Optional Fuel Tank
Fig. 32 Vacuum hose routing. 1983 V8-305 C10 w/ man. trans. less optional fuel tank:
