Emission Control Systems: Locations

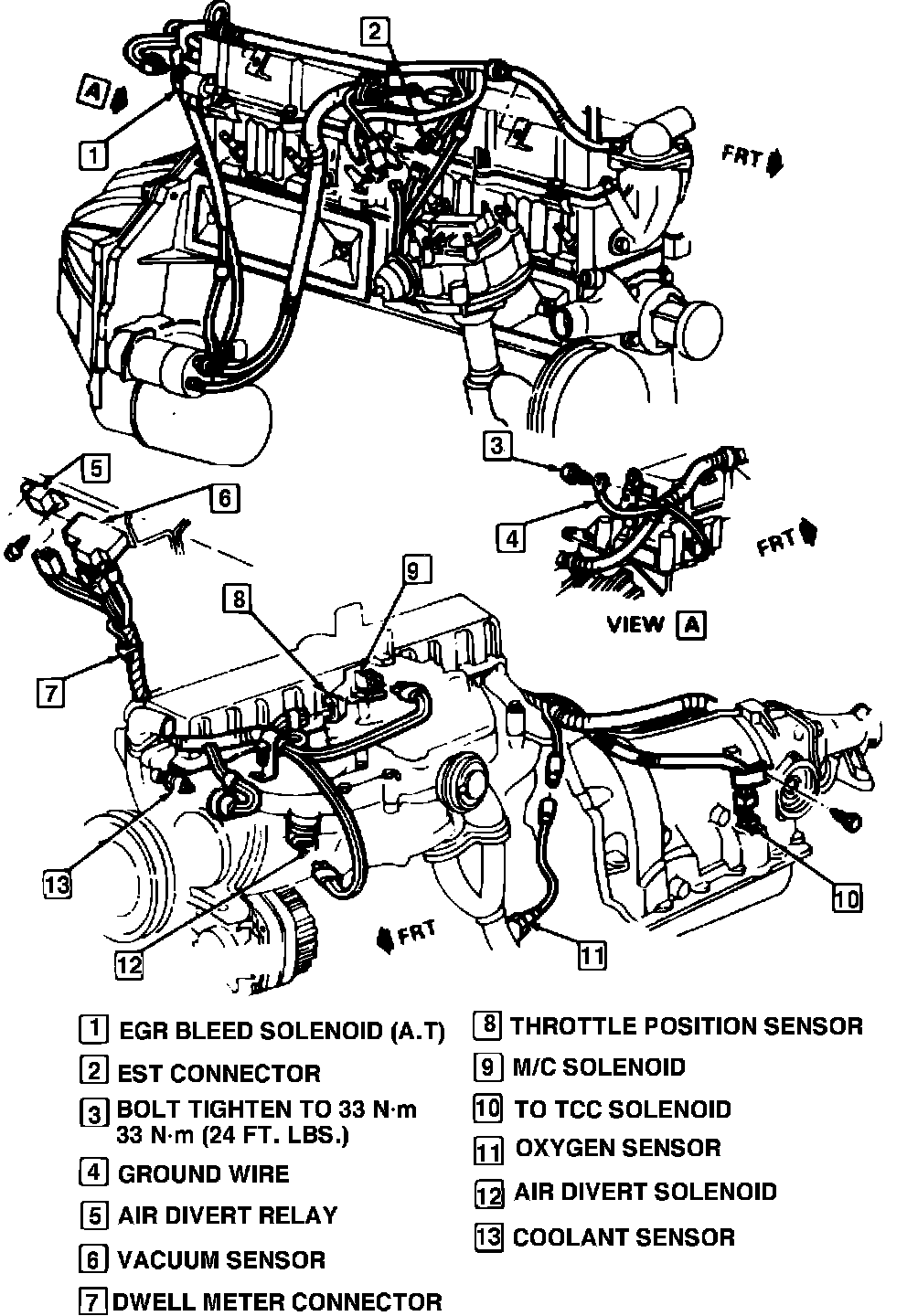

Fig. 56 Emission components locations. 1983 G Series 6-250 Calif.:
