Chevy Truck
>>
1983
>>
G 30 1 Ton Van V8-350 5.7L VIN M 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Mono Radio
With Mono Radio

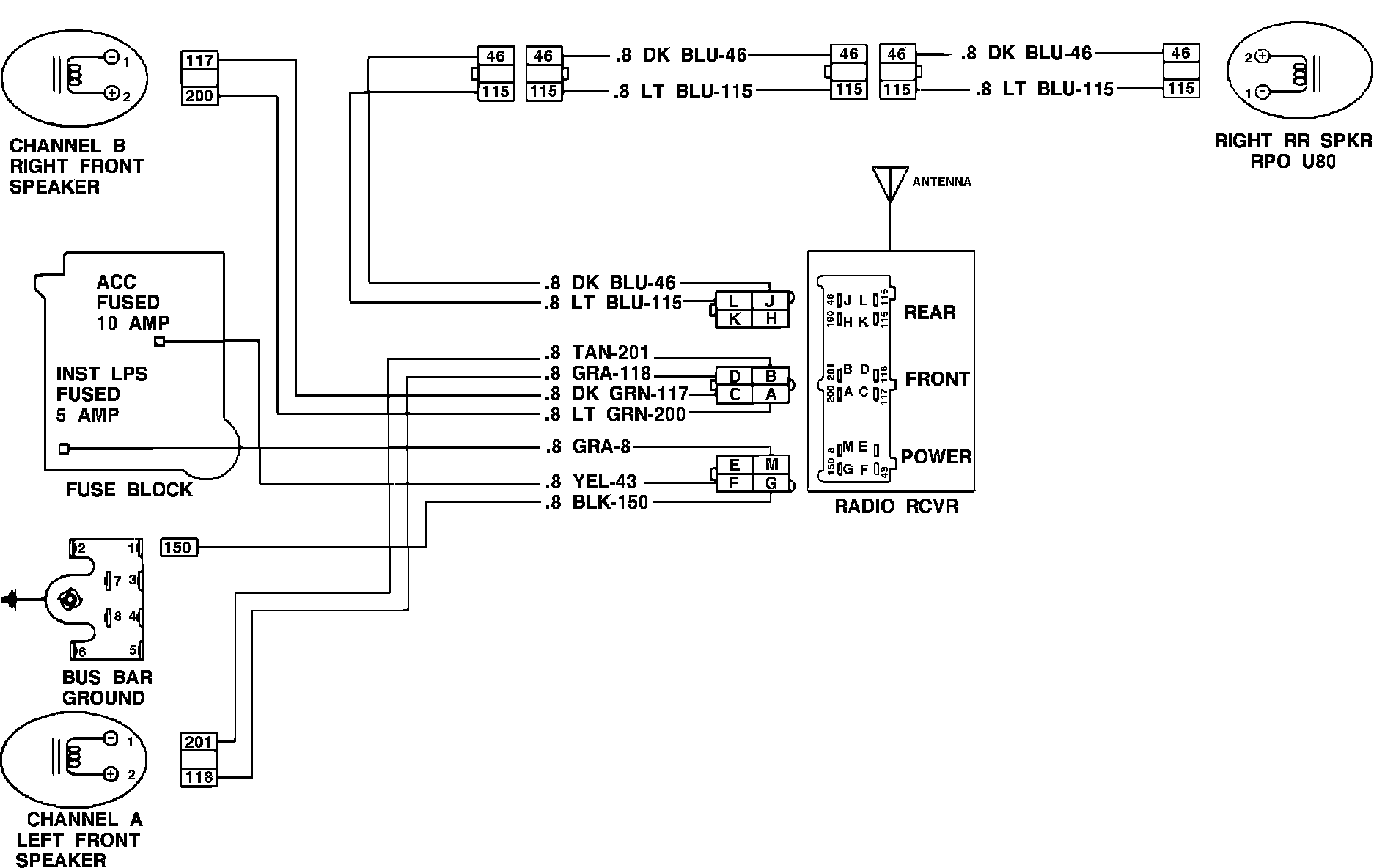

Radio & Speaker Wiring Circuit. Mono:
