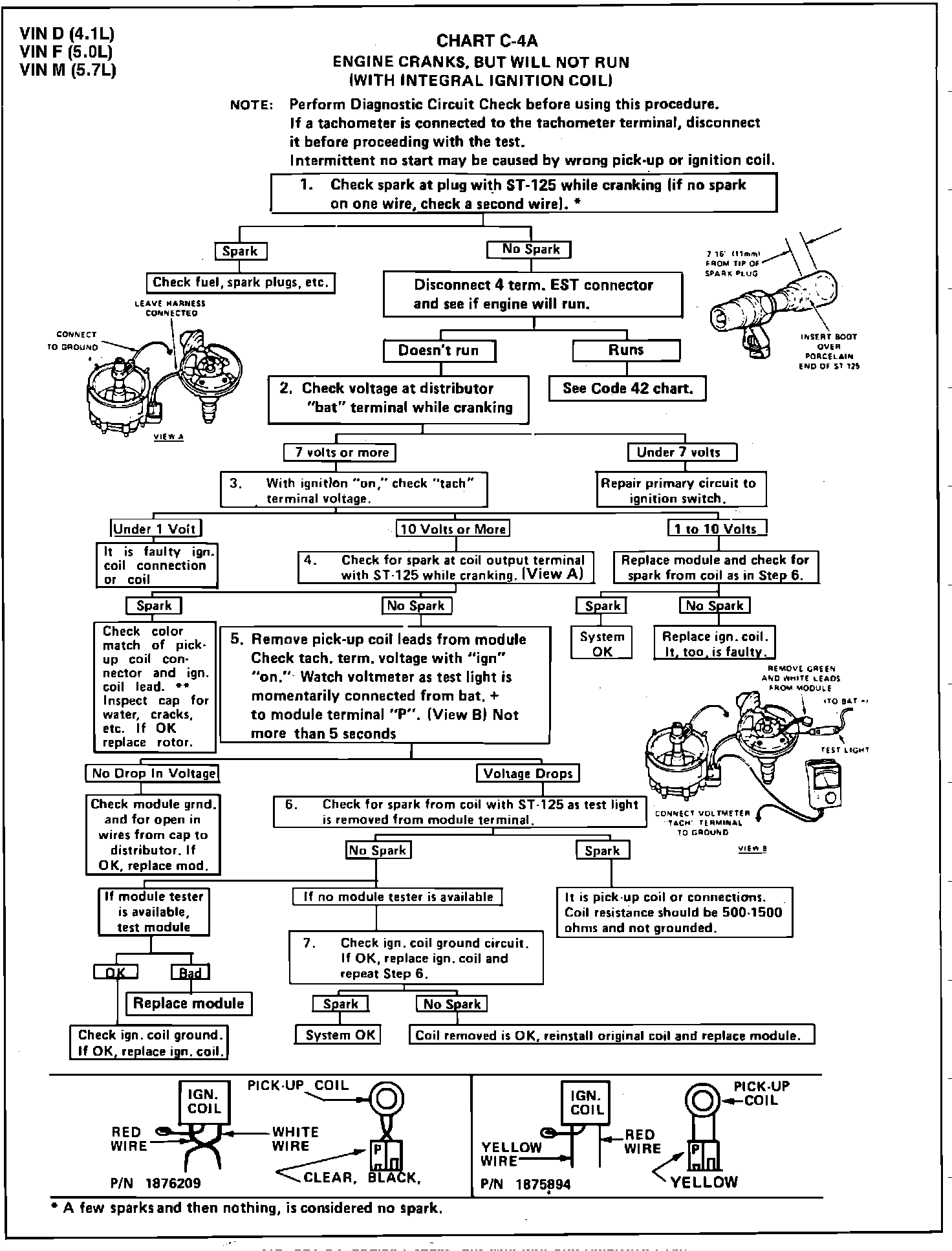

Chart C-4A Ignition System Check
Chart C-4A Ignition System Check
Chart C-4A - Ignition System Check (Integral Ignition Coil):
