Home
>>
Chevy Truck
>>
1983
>>
K 20 3/4 Ton Pickup 4WD L6-292 4.8L VIN T 1-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Rear Lamps
>>
Fleetside Pickup
Fleetside Pickup

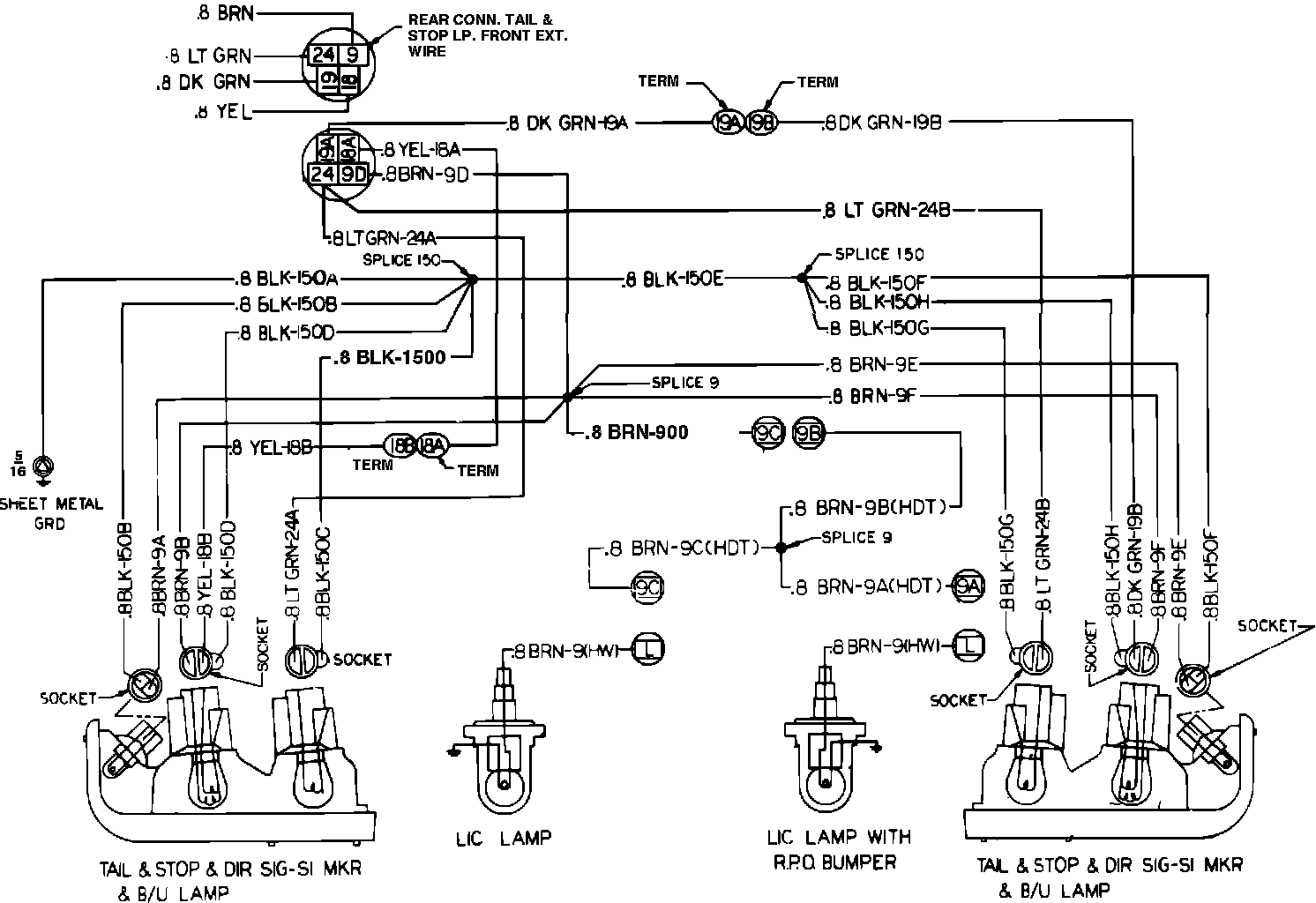

Rear Lighting Wiring Circuit:
