Chevy Truck
>>
1983
>>
K 20 3/4 Ton Pickup 4WD L6-292 4.8L VIN T 1-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
With Power Windows
>>
4 Door
4 Door

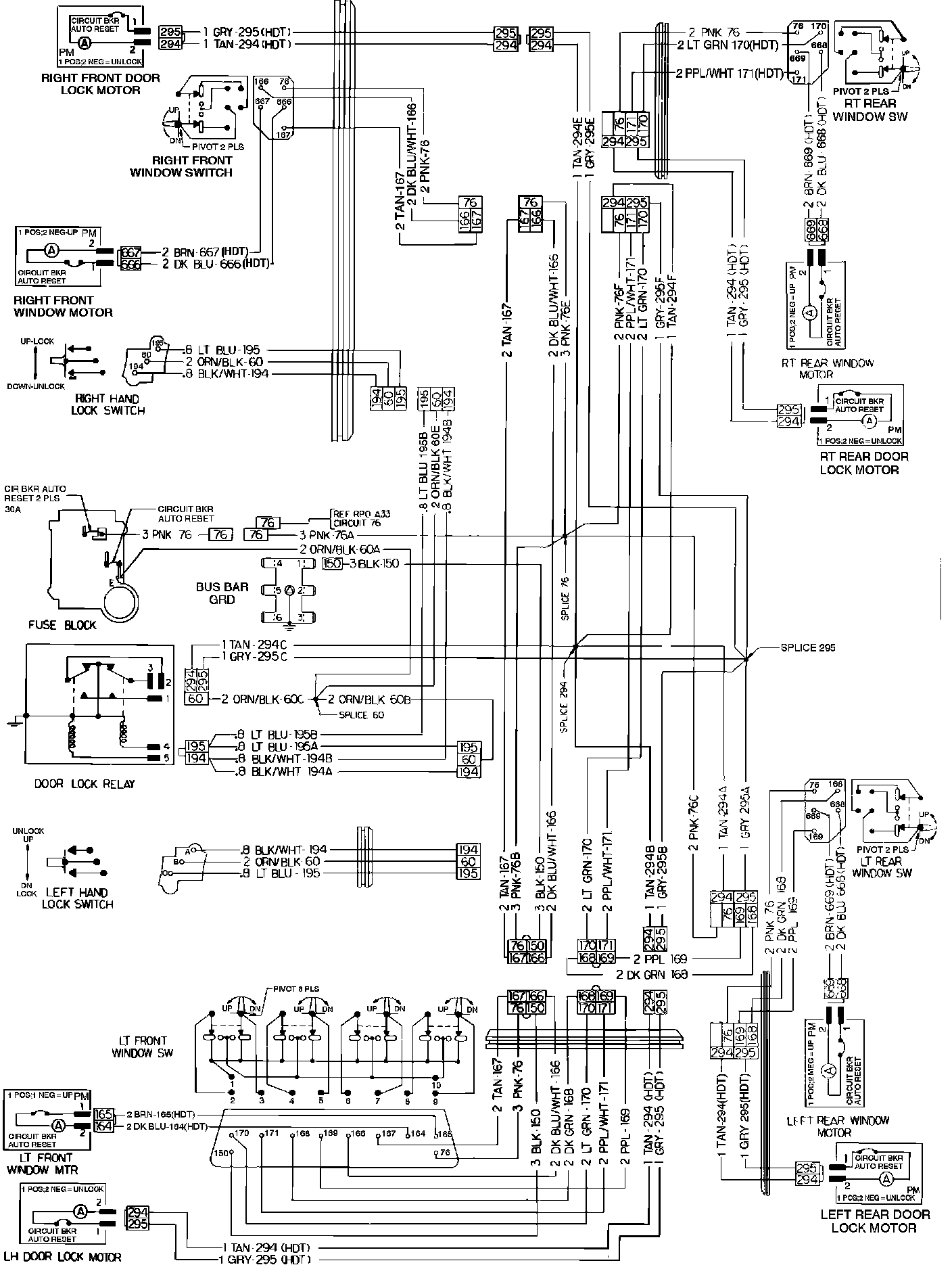

Power Door Lock & Window Wiring Circuit (4 Door):
