Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1983
>>
K 20 3/4 Ton Pickup 4WD L6-292 4.8L VIN T 1-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Without Power Windows
>>
Four Door
Four Door

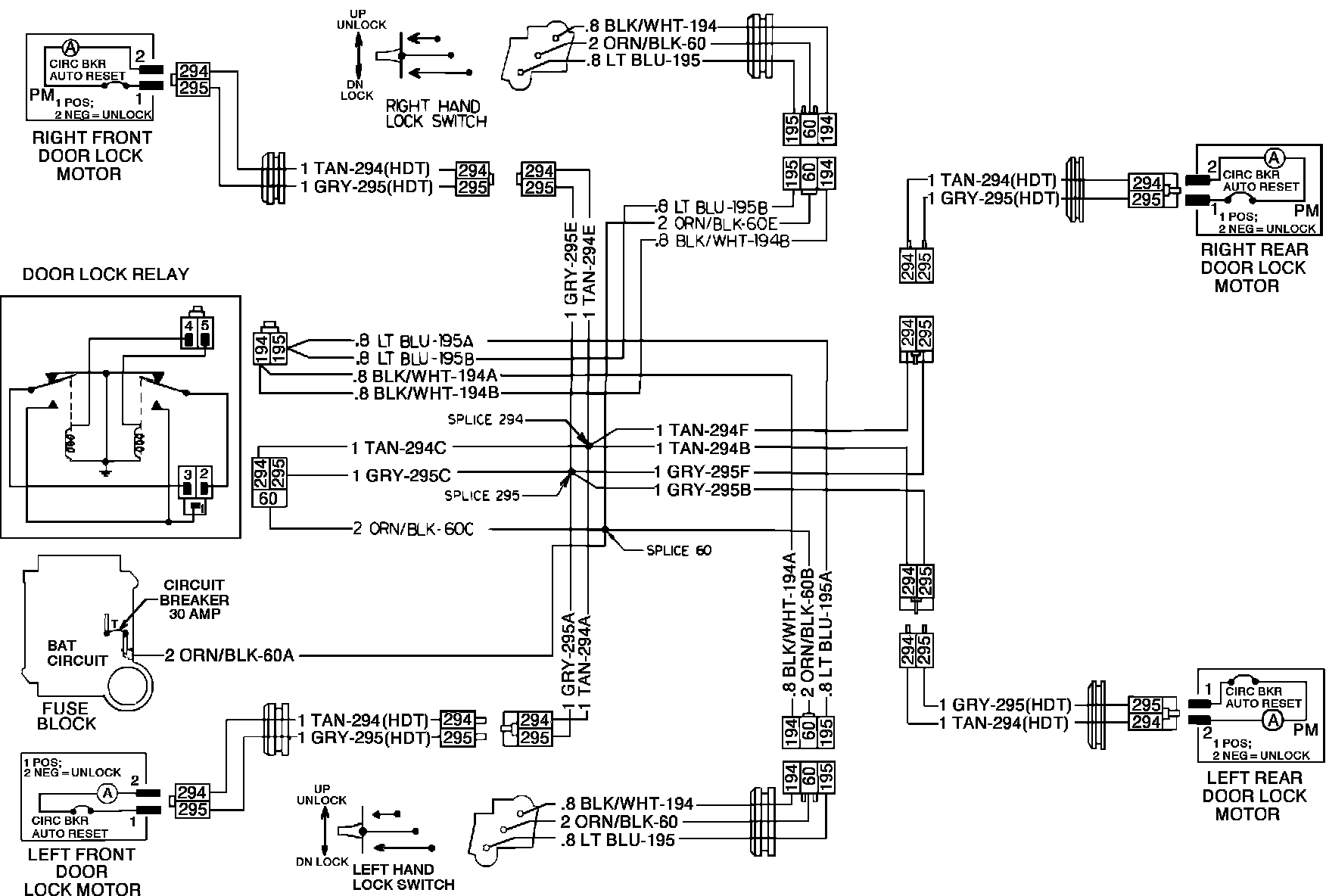

Power Door Lock Wiring Circuit (4 Door):
