Auxiliary Fuel Tank Control

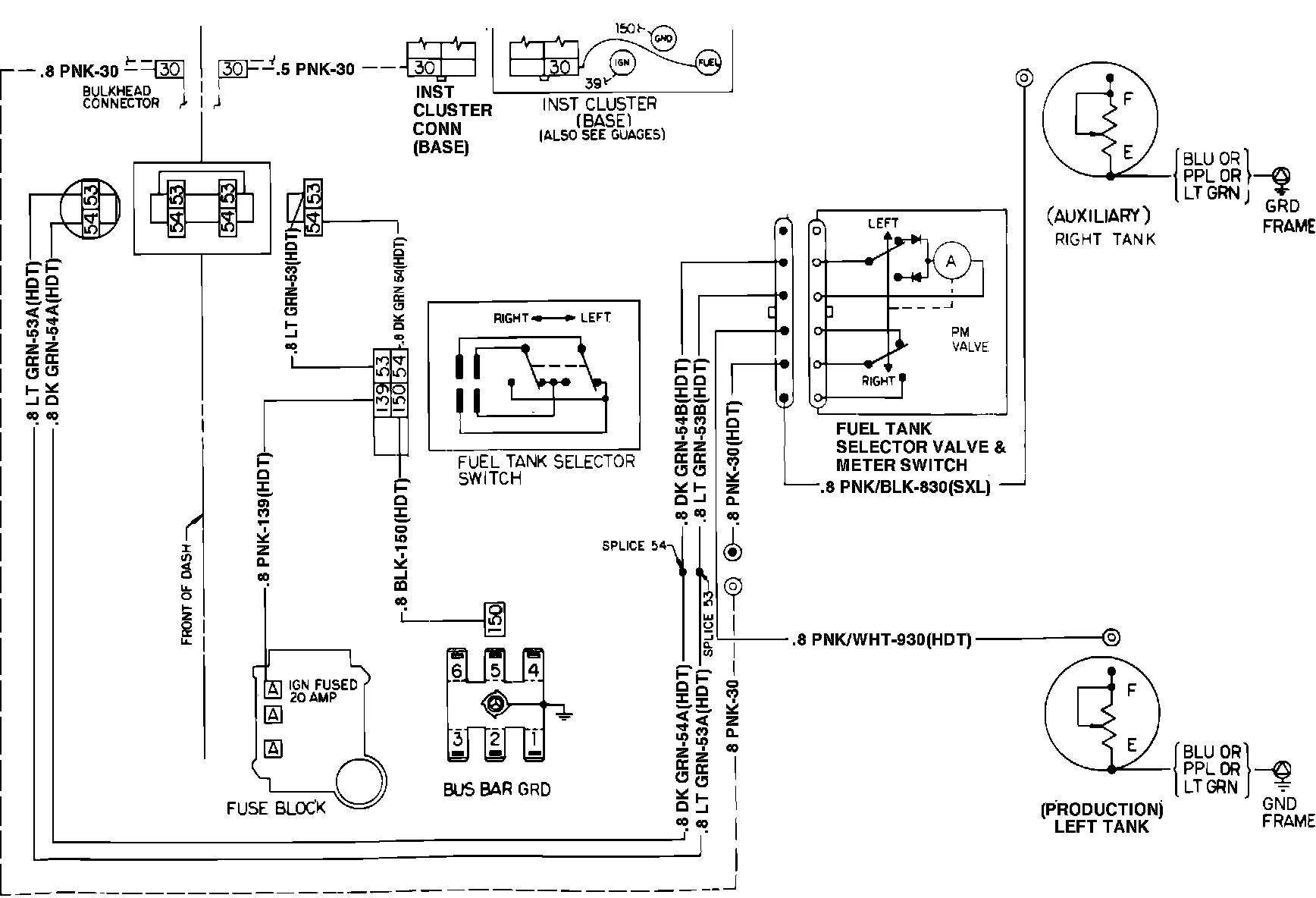

Auxiliary Fuel Tank Wiring Circuit:



Auxiliary Fuel Tank Wiring Circuit:
