Engine Mount: Service and Repair

CABALLERO & EL CAMINO

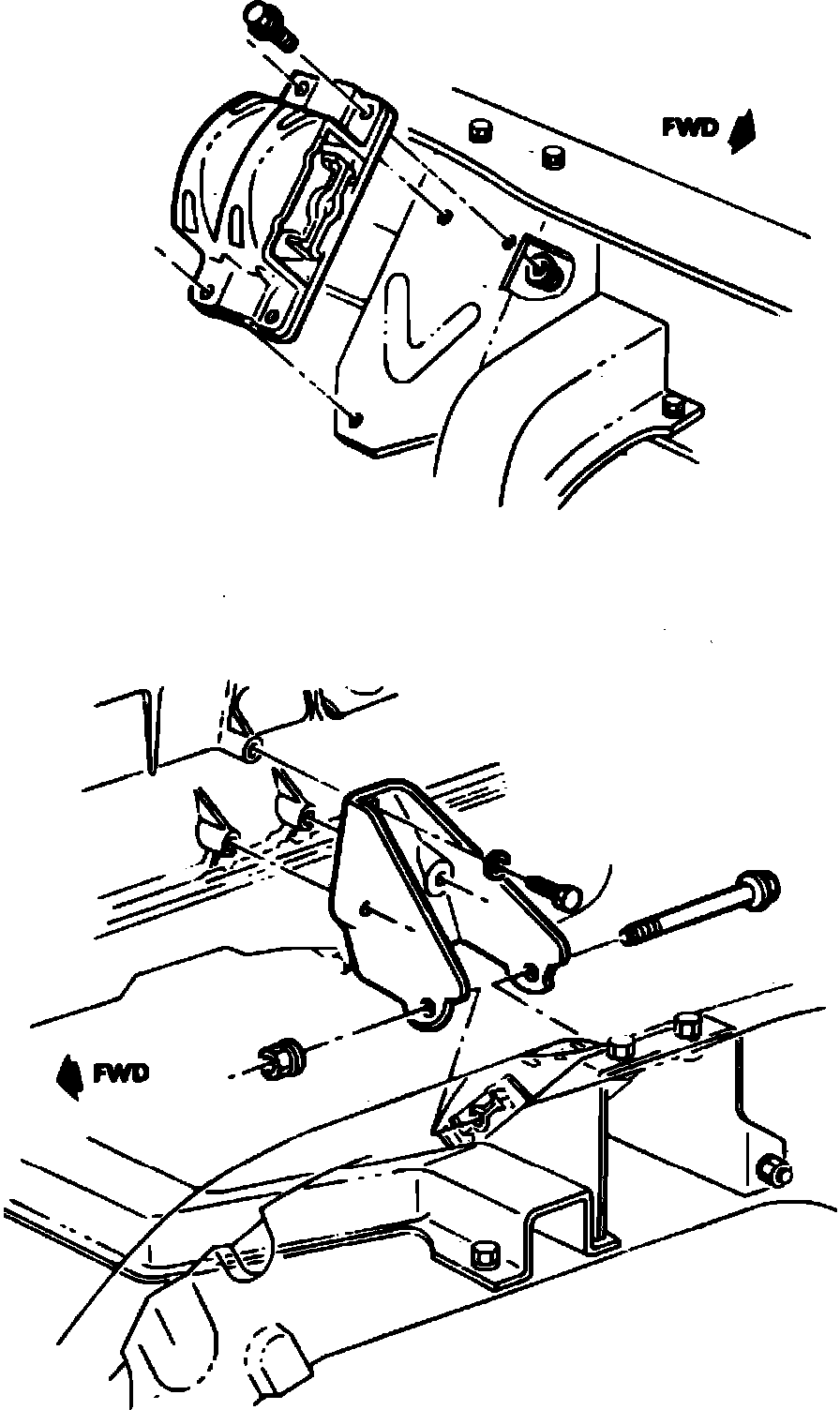

Fig. 2 Engine mount replacement. C, K, P, R & V models w/inline 6 cylinder engine:

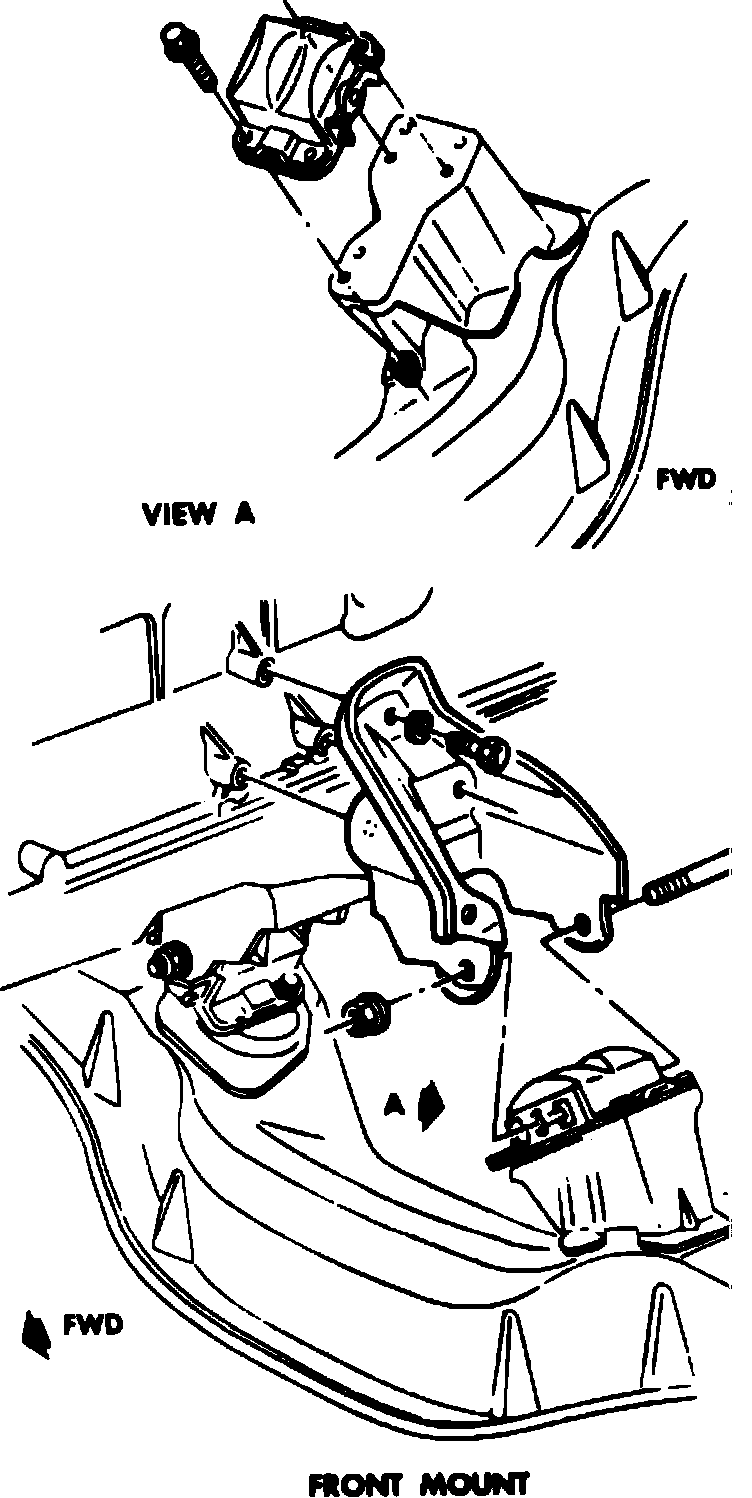

Fig. 3 Engine mount replacement. G models w/inline 6 cylinder engine:

SERIES 10---30/1500---3500
L-6 Engines
1. Remove engine mount through bolt.
2. Raise engine, then remove mount to frame bracket attaching bolts and mount. Raise engine only enough to gain sufficient clearance for removal. Check for interference between rear of engine and cowl panel.
3. Install new engine mount to frame bracket, then install and tighten attaching bolts.
4. Install engine mount through bolt and torque bolt to 30 ft. lbs.
