Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1983
>>
K 20 3/4 Ton Pickup 4WD L6-292 4.8L VIN T 1-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Overhead
Overhead

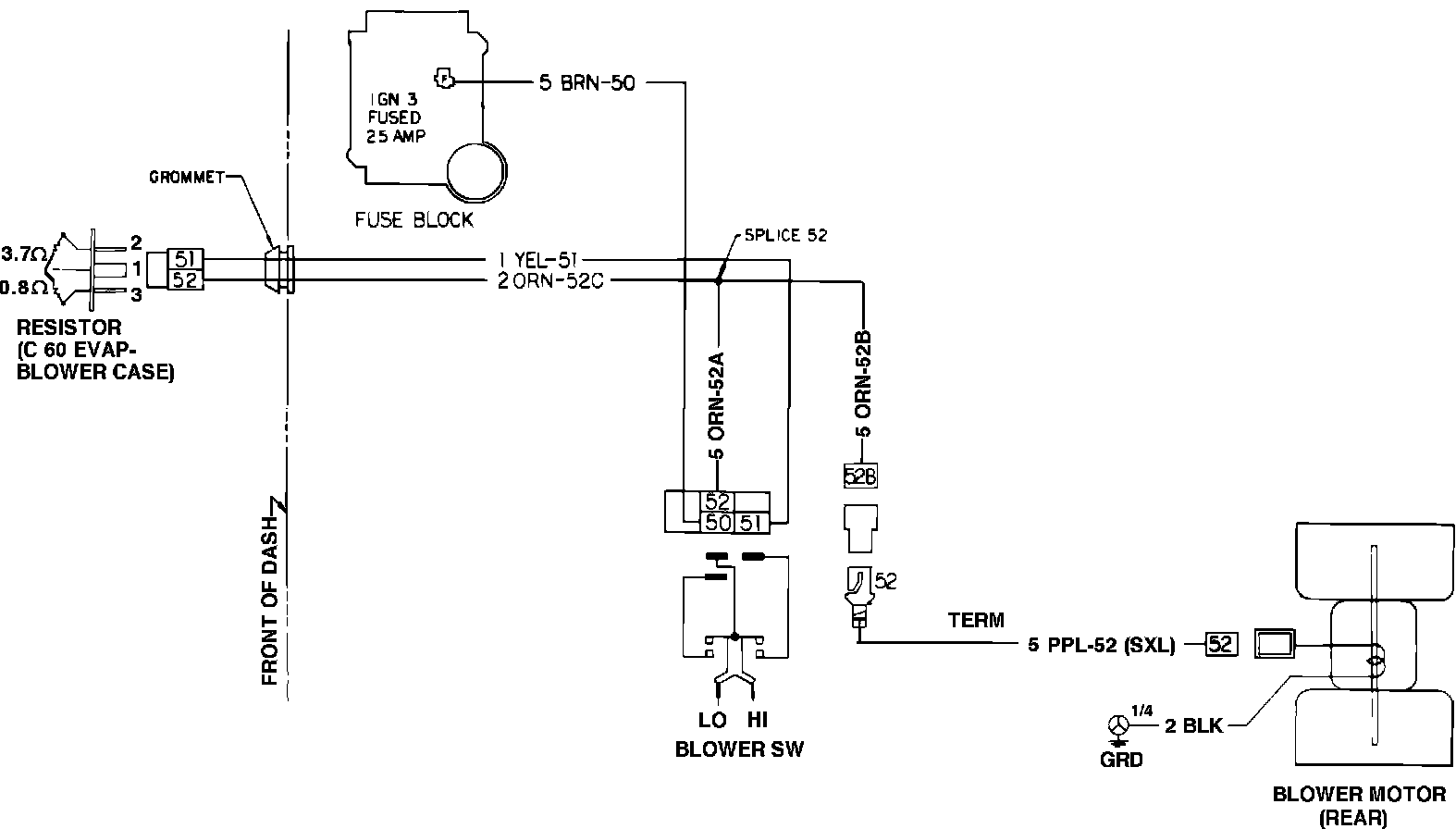

Air Conditioning & Heater Wiring Circuit Overhead:
