Application and Identification

Transmission Identification

Visually Inspect Transmission Type For Proper Application

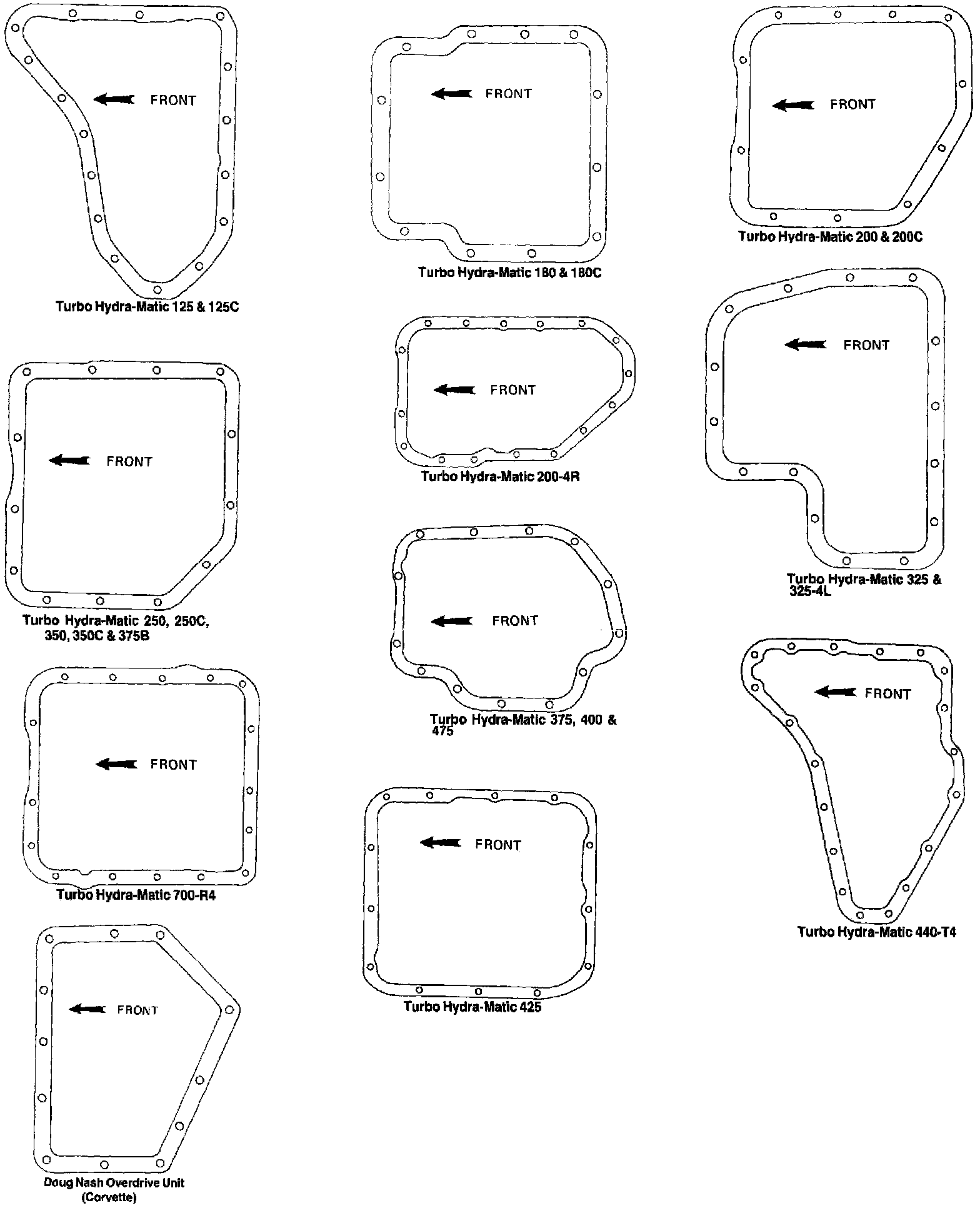

Transmission Identification, Pan Configuration:

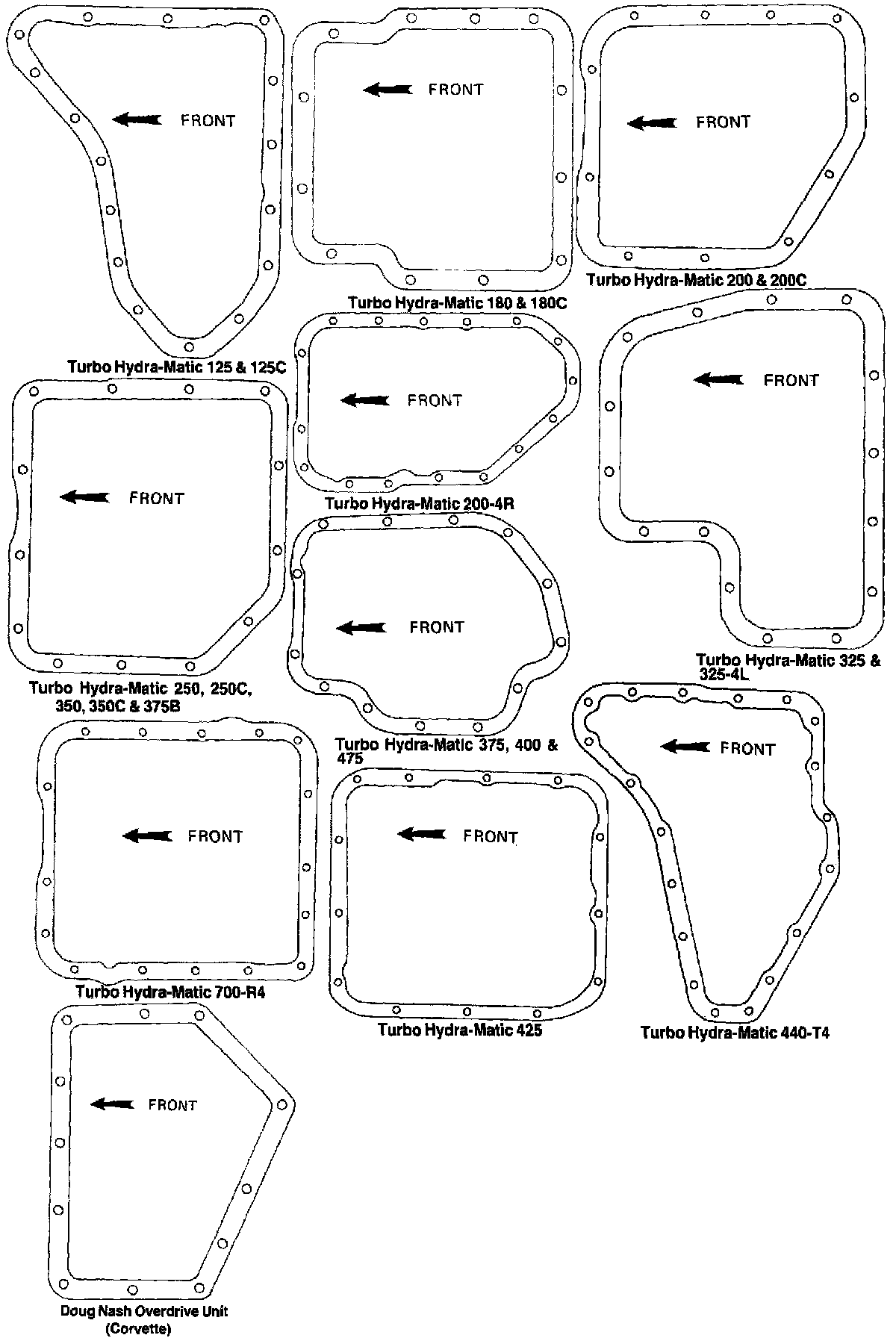

Transmission Identification/Pan Configuration:
