Chevy Truck
>>
1983
>>
K 20 3/4 Ton Pickup 4WD L6-292 4.8L VIN T 1-bbl
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Battery
Battery

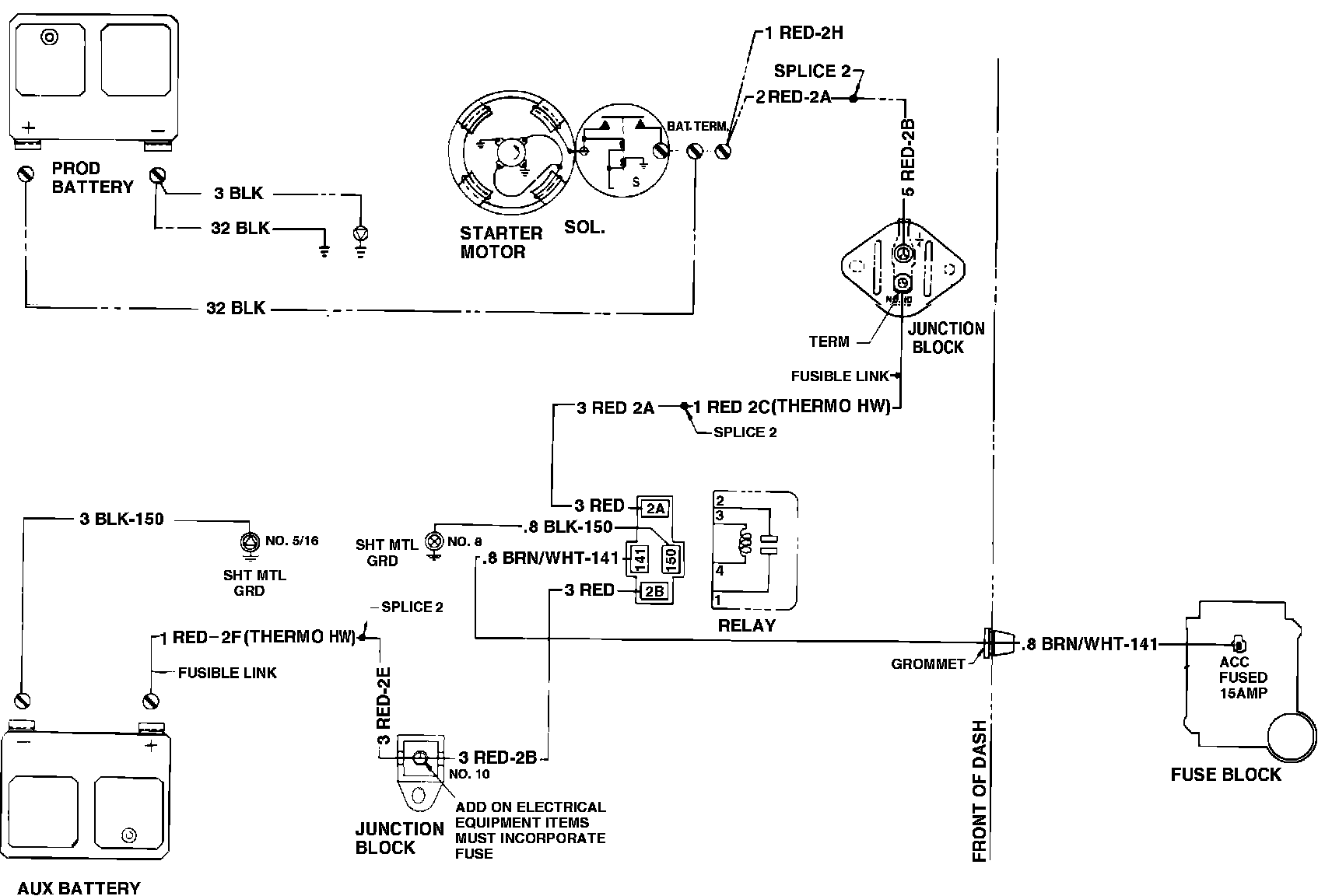

Auxiliary Battery Wiring Circuit:
