1983
>>
S10/T10 Blazer 4WD L4-119 1.9L VIN A 2-BBL
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
System Diagnostic Charts
>>
Chart 2 Dwell Fixed Between 10 - 80
Chart 2 Dwell Fixed Between 10 - 80

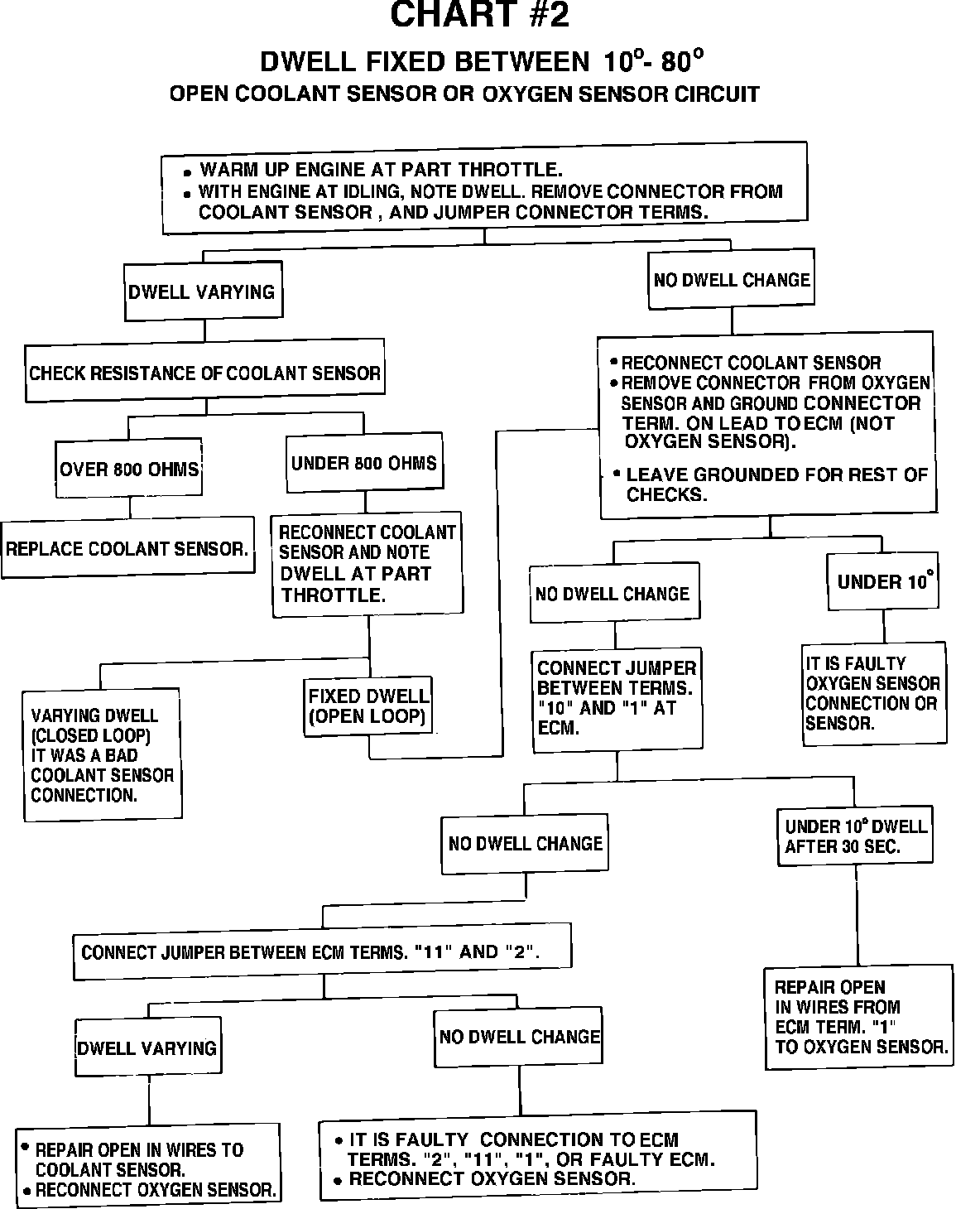

Fig. 10 Chart No. 2 diagnosis:
