Home
>>
Chevy Truck
>>
1983
>>
S10/T10 Blazer 4WD L4-119 1.9L VIN A 2-BBL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
System Check - Air Management Check
System Check - Air Management Check

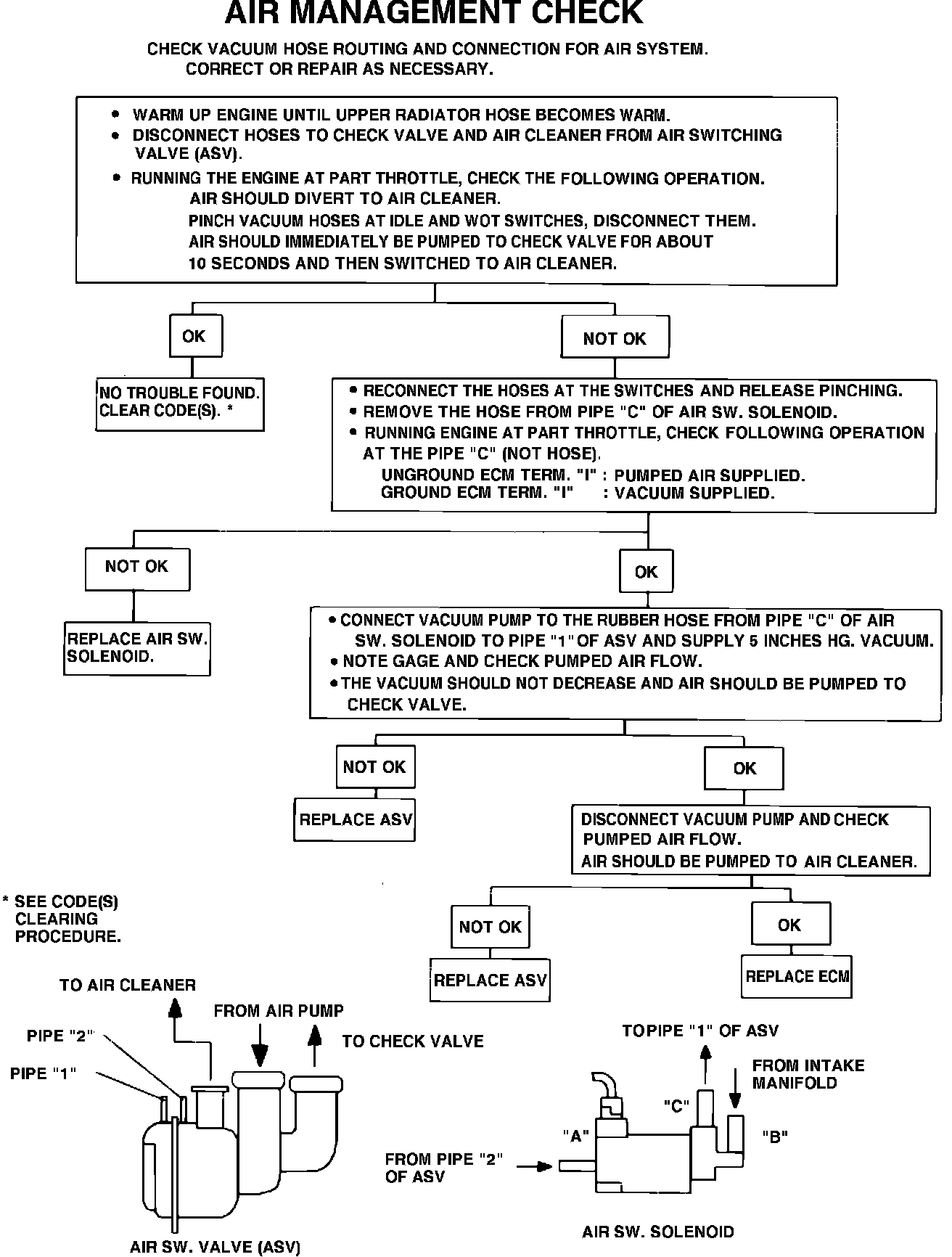

Fig. 34 Air Management system check. 1983:
