Chevy Truck
>>
1983
>>
S10/T10 Blazer 4WD L4-121 2.0L VIN Y 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
System Diagram
>>
Automatic Transmission
>>
Federal & High Altitude
>>
With Optional Fuel Tank
With Optional Fuel Tank

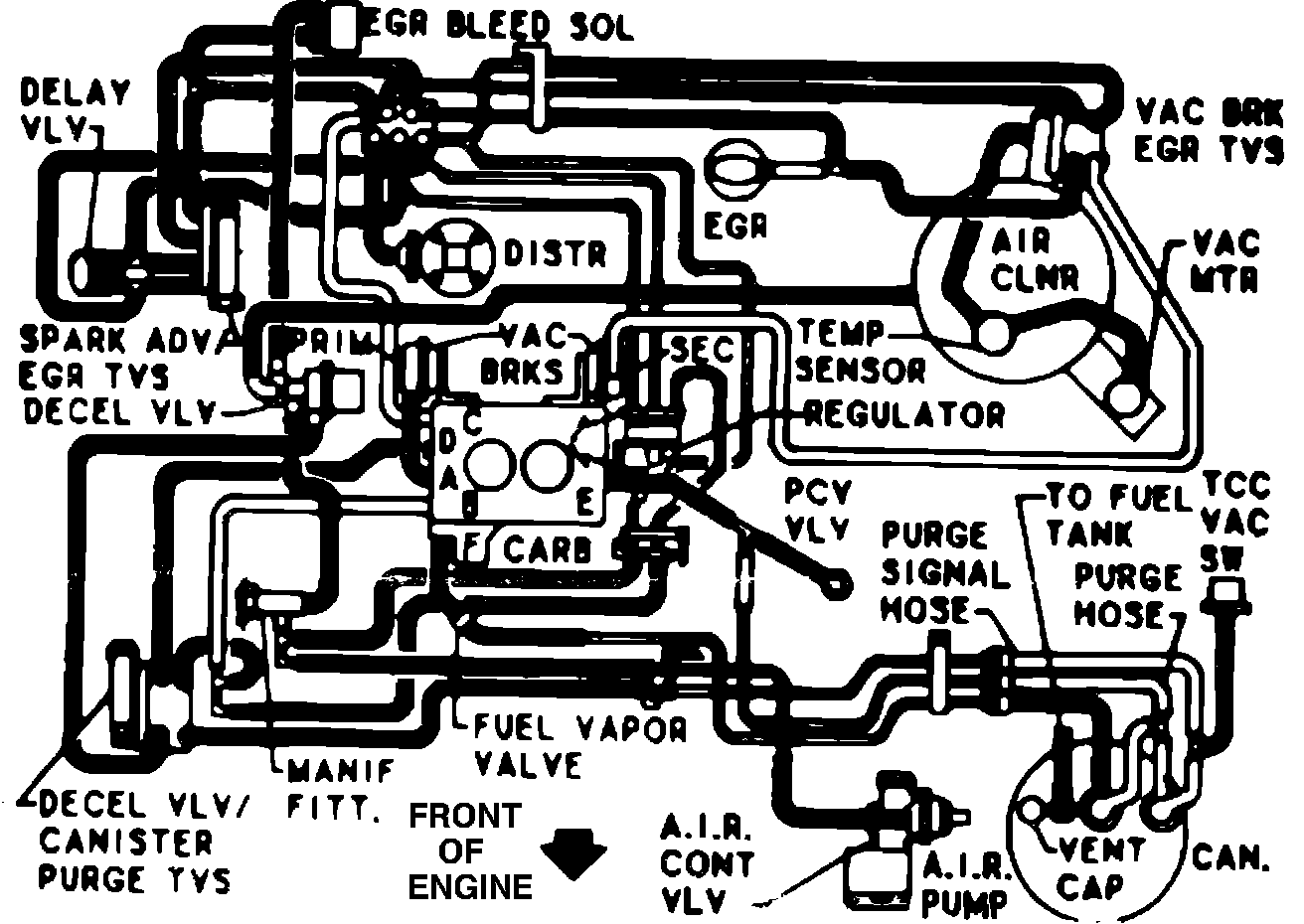

Fig. 10 Vacuum hose routing. 4-122 high Alt. w/ auto. trans. & optional fuel tank:
