S10/T10 Blazer 4WD V6-173 2.8L VIN B 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Switches
>>
Oil Pressure Sender/Switch
Oil Pressure Sender/Switch

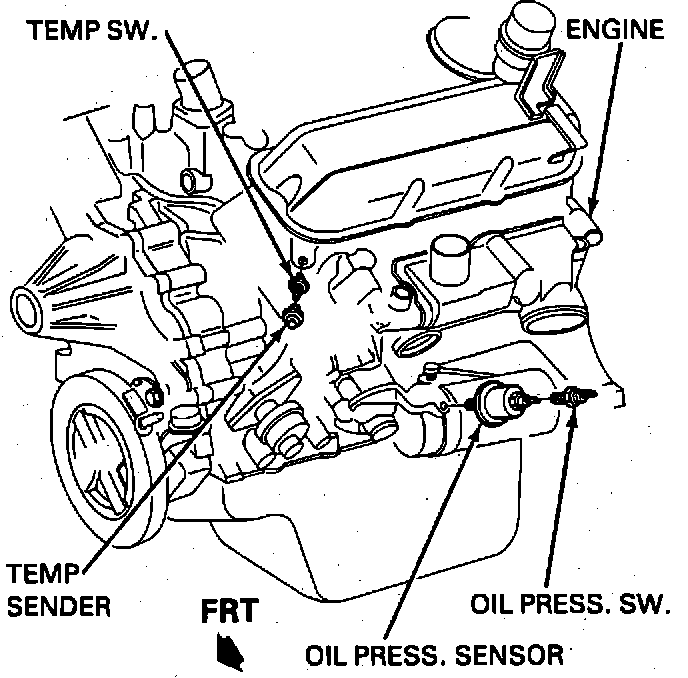

Engine Wiring Harness.:
Front LH Side Of 2.8L:
Front LH Side Of Engine
