Chevy Truck
>>
1983
>>
S10/T10 P/U 2WD L4-119 1.9L VIN A 2-BBL
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
A Charts
>>

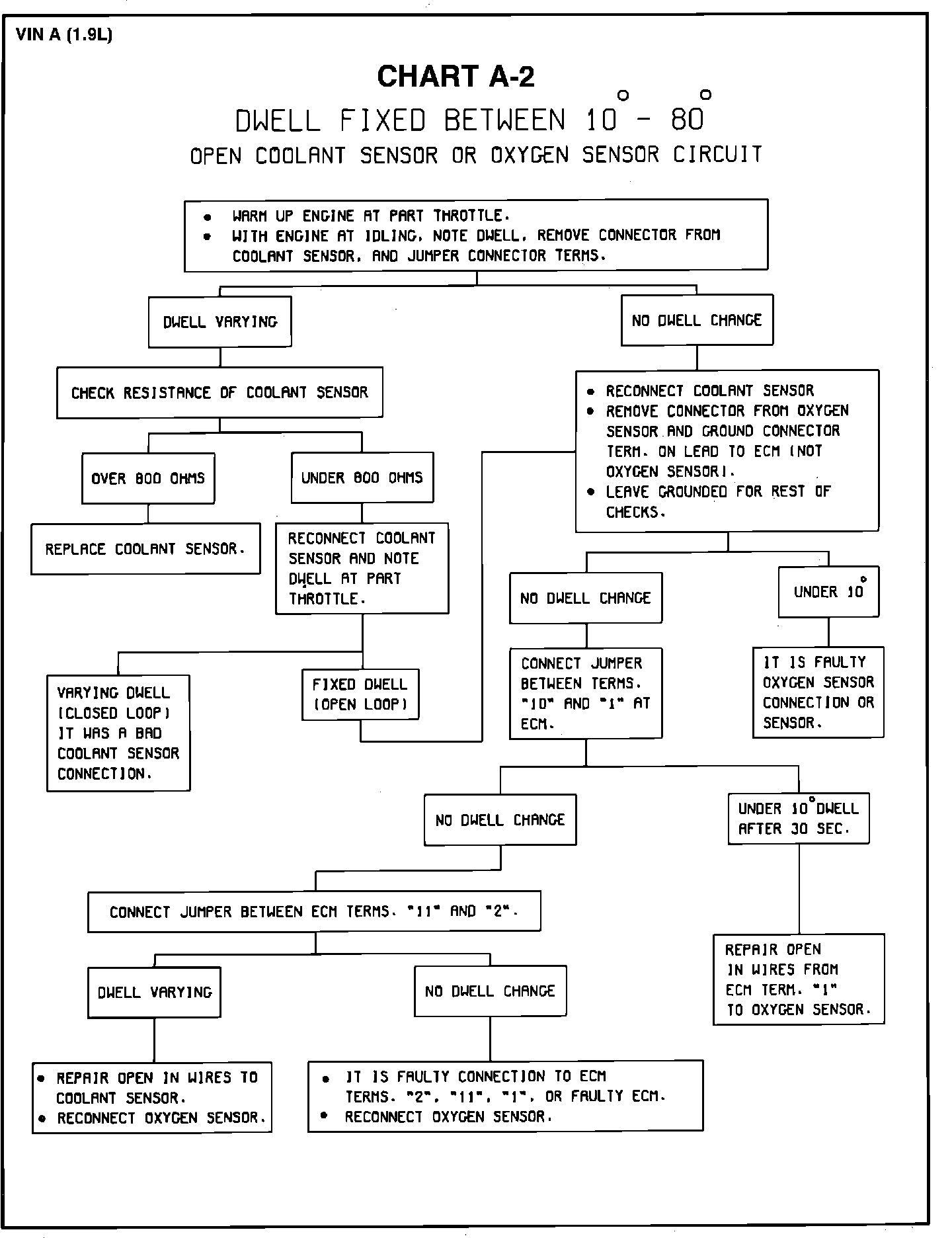

Chart A-2 Dwell Fixed Between 10 - 80 Degrees
Chart A-2 Dwell Fixed Between 10 - 80 Degrees
Chart A-2 - Dwell Fixed Between 10 and 80 Degrees:
