Chart 4 Idle Switch and WOT Switch Circuit Check
Chart 4 Idle Switch and WOT Switch Circuit Check

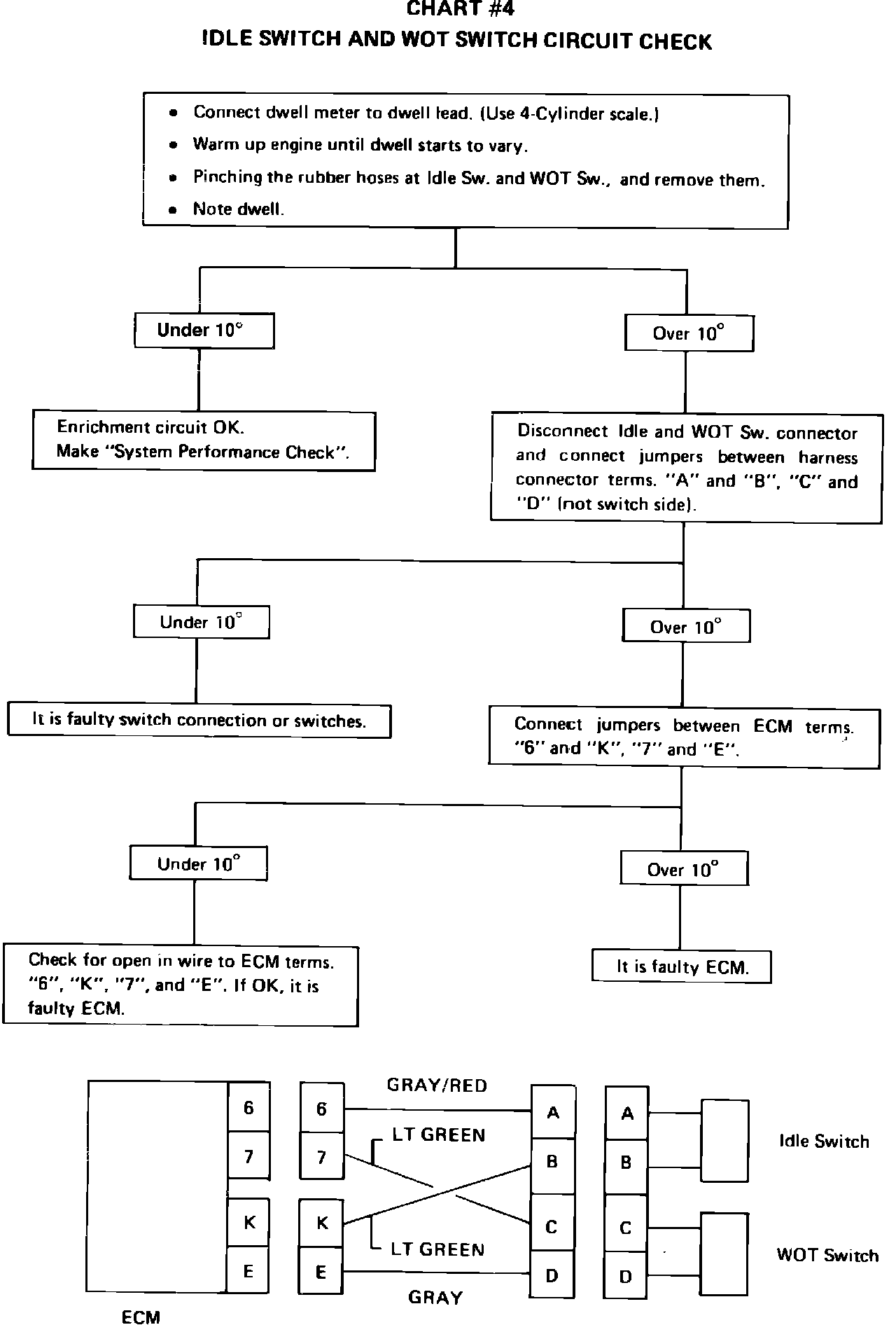

Fig. 12 Chart No. 4 diagnosis:
