Vacuum Control Valve (VCV) Check
Vacuum Control Valve (VCV) Check
Vacuum Control Valve (VCV) Check:

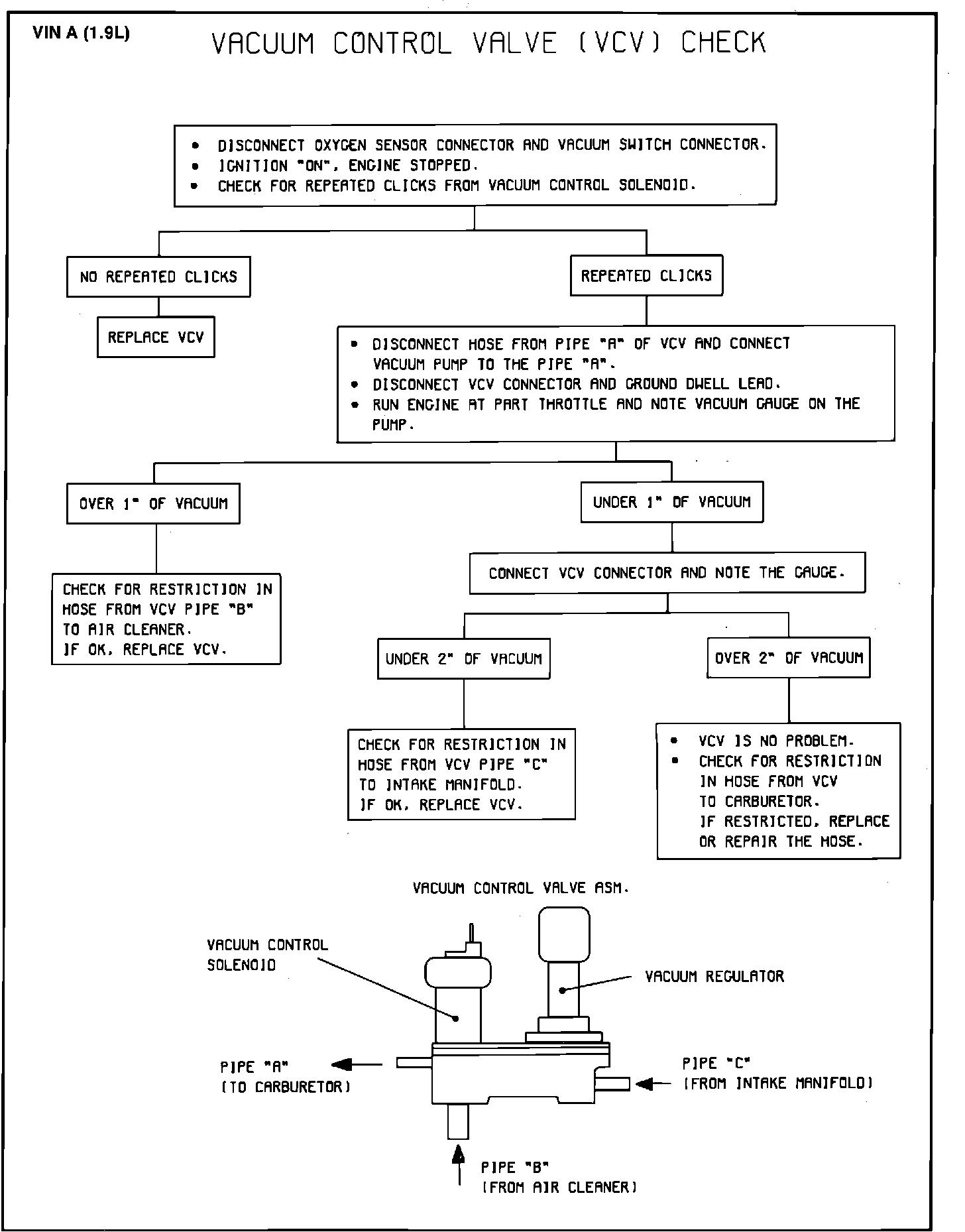

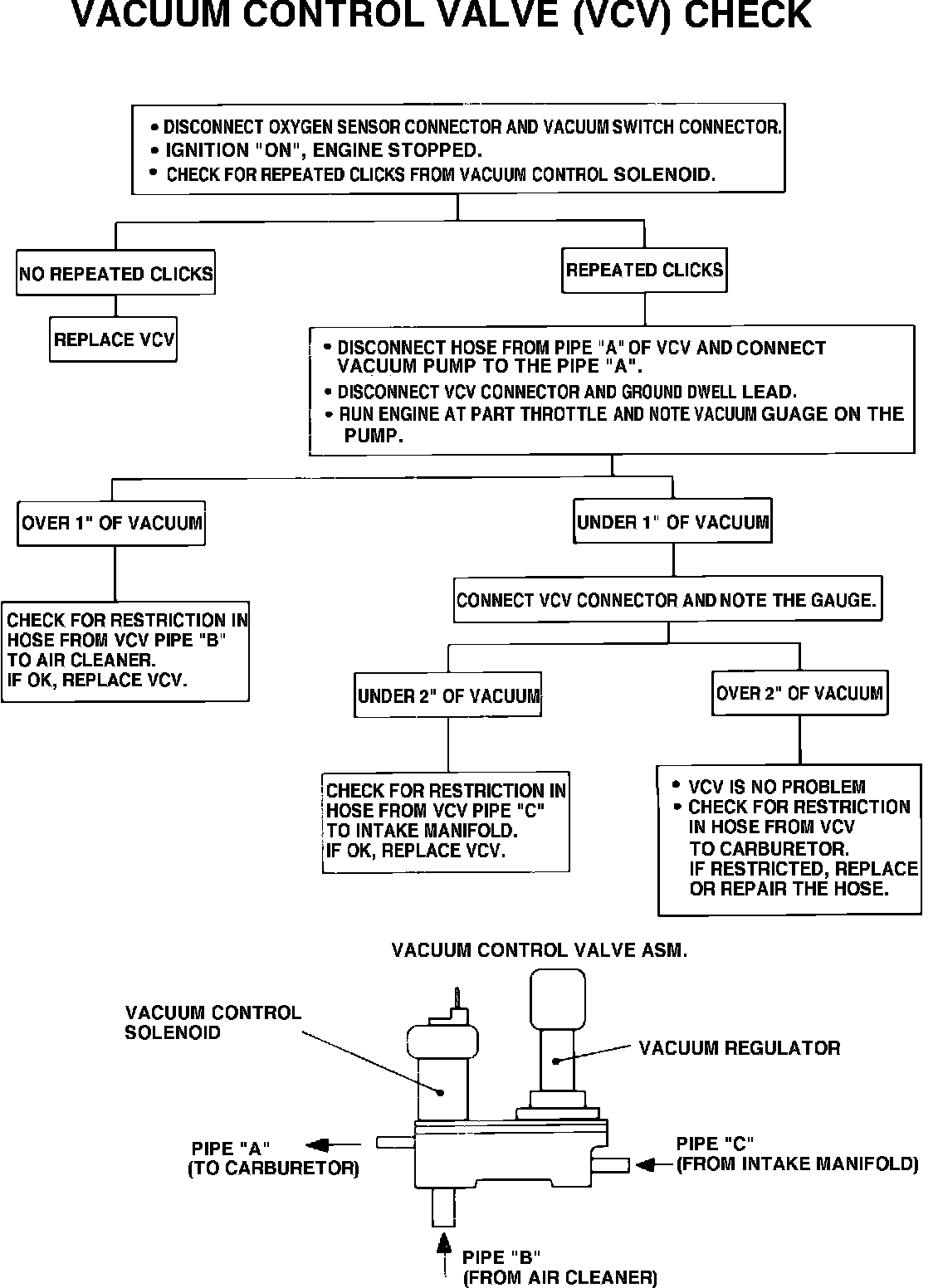

Fig. 37 Vacuum control valve check. 1983:
