Fig. 2 California W/ Auto. Trans. and Optional Fuel Tank
Fig. 2 California W/ Auto. Trans. and Optional Fuel Tank

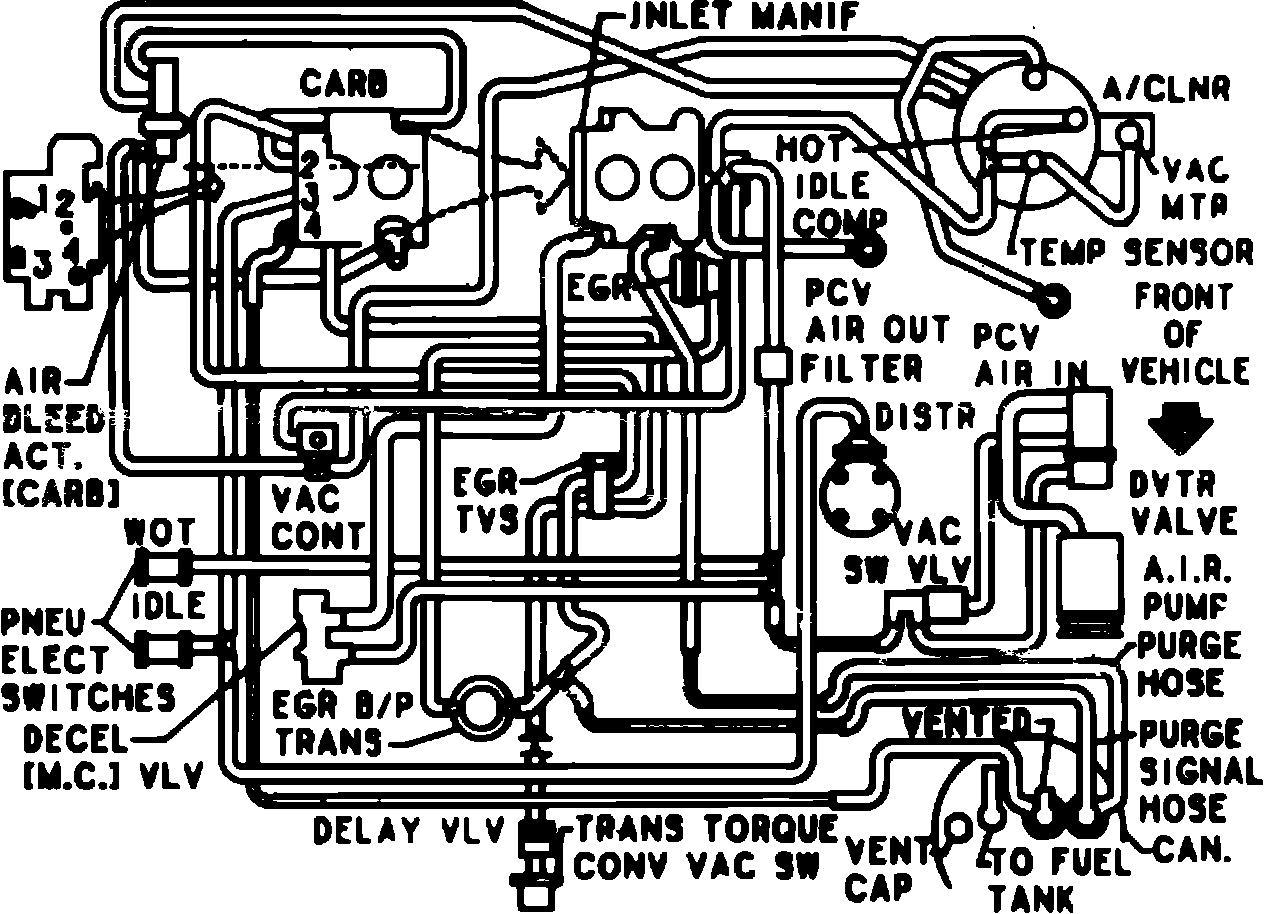

Fig. 2 Vacuum hose routing. 1983 4-119 California w/ auto. trans. & optional fuel tank:
