Engine Specifications

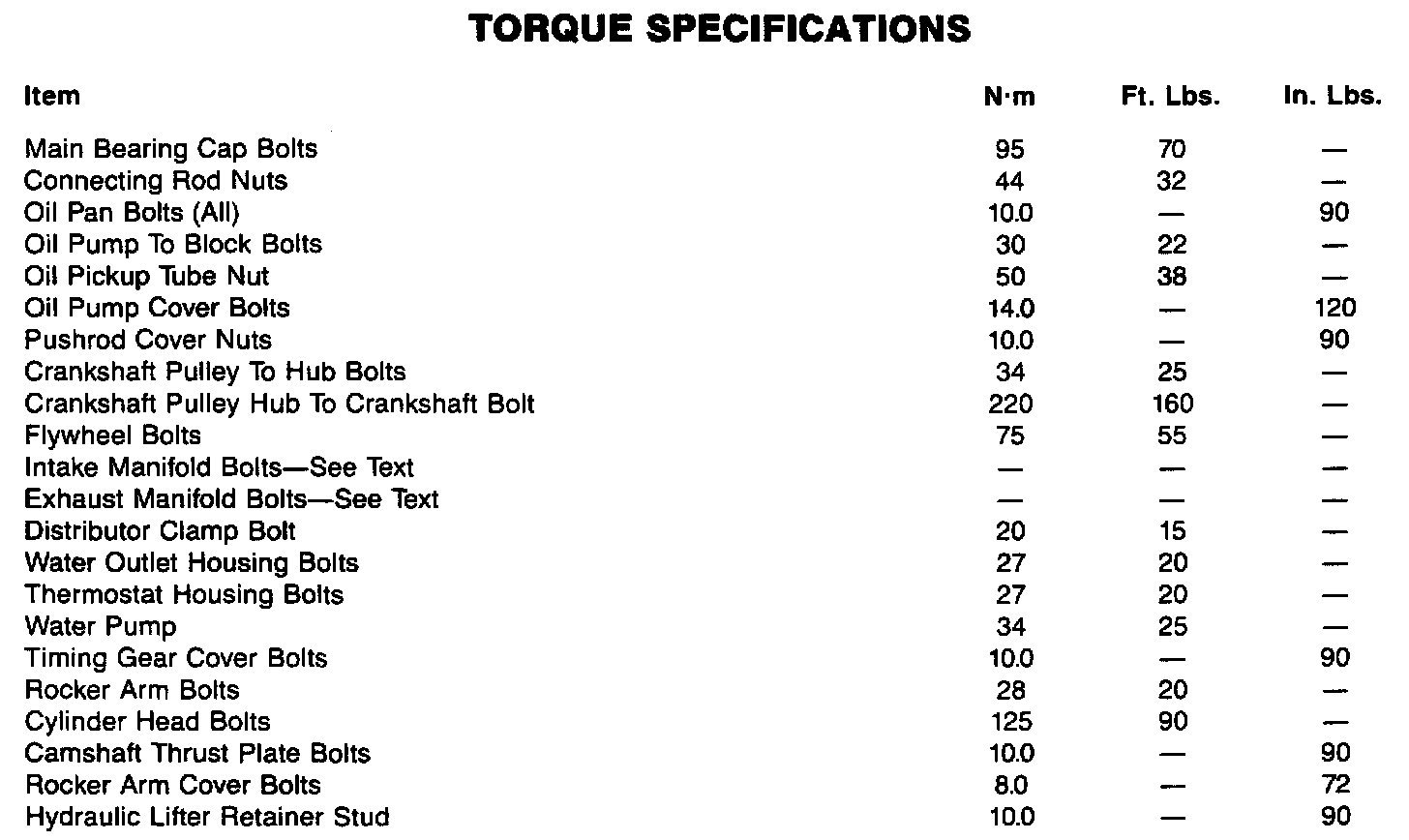

Torque Specifications:

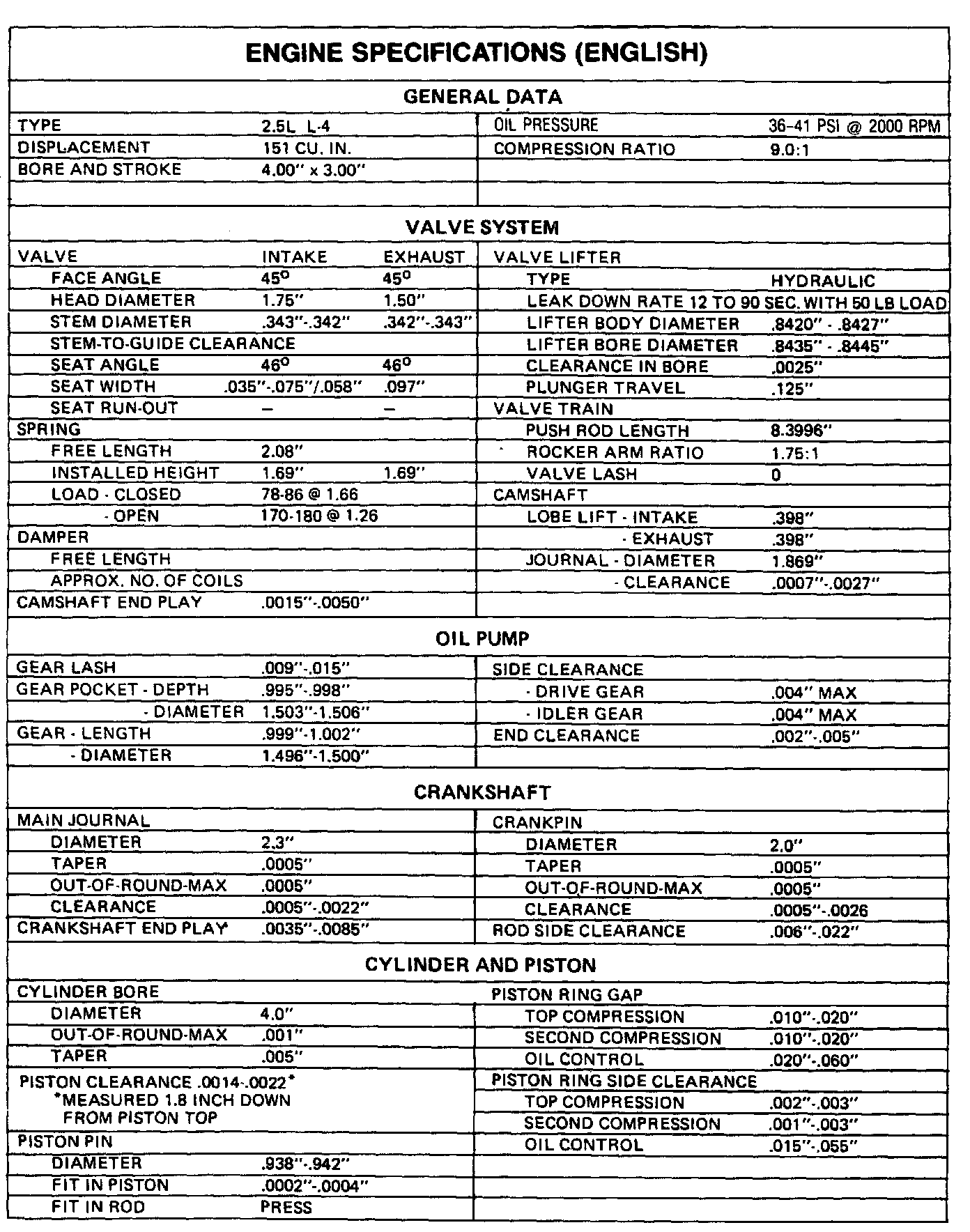

Engine Specifications (English):

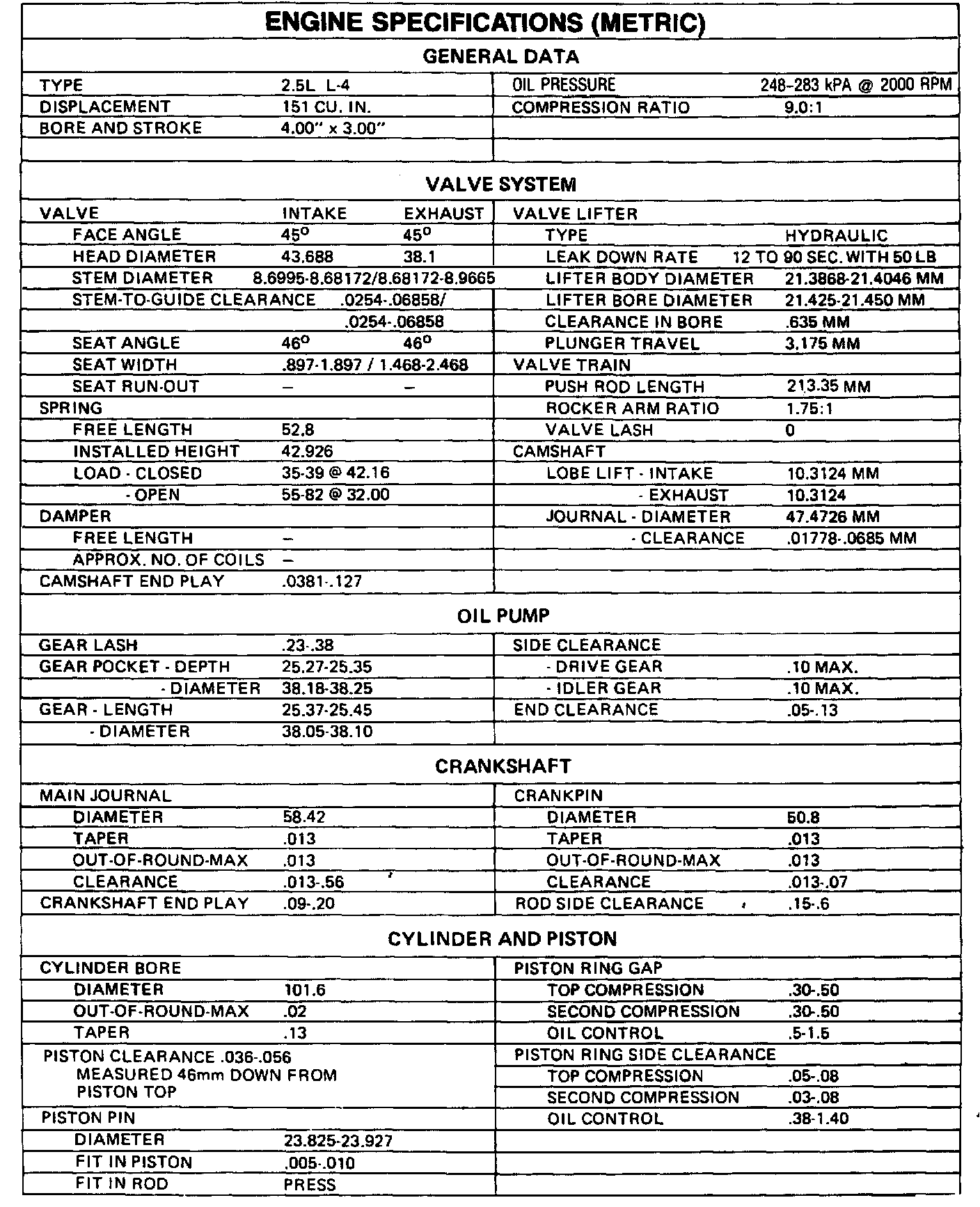

Engine Specifications (METRIC):

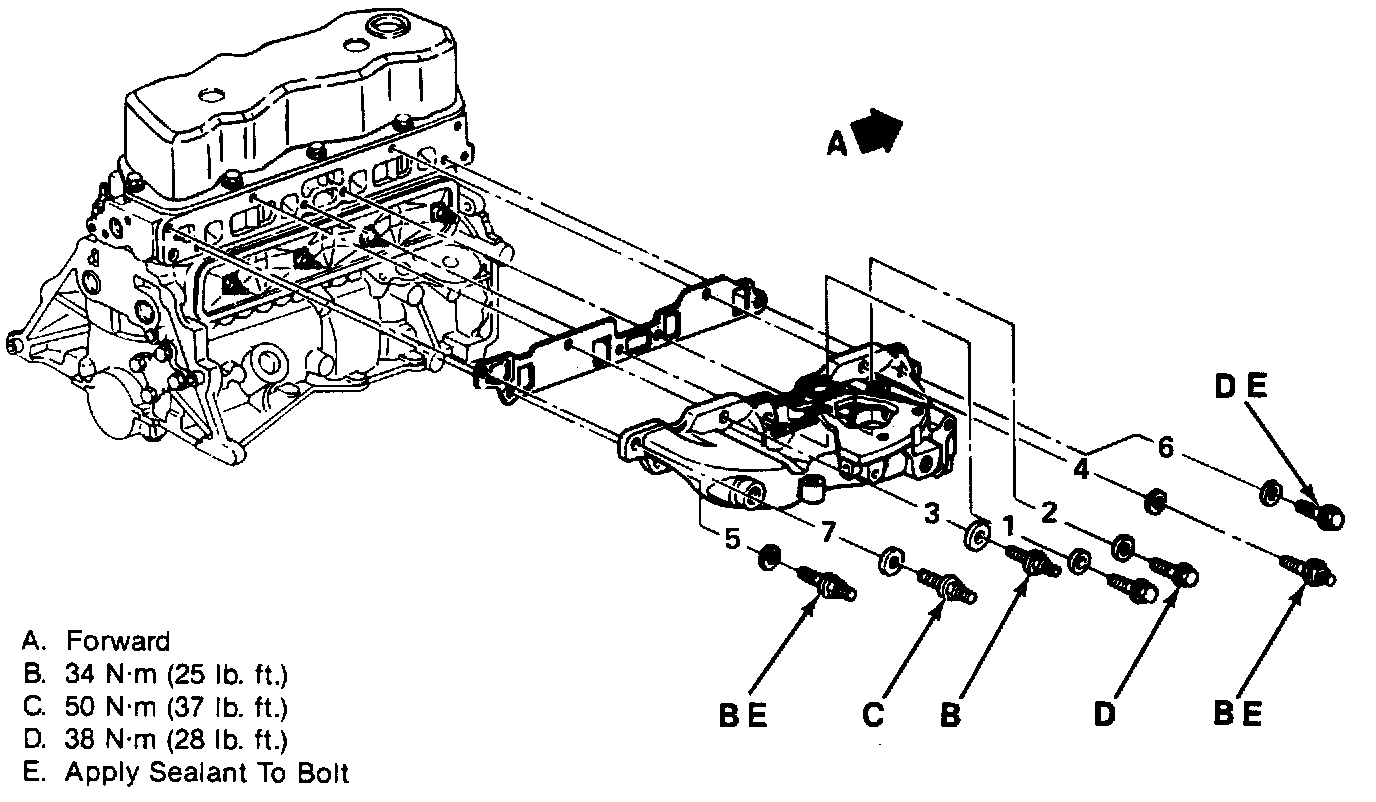

Intake Manifold Torque Sequence:

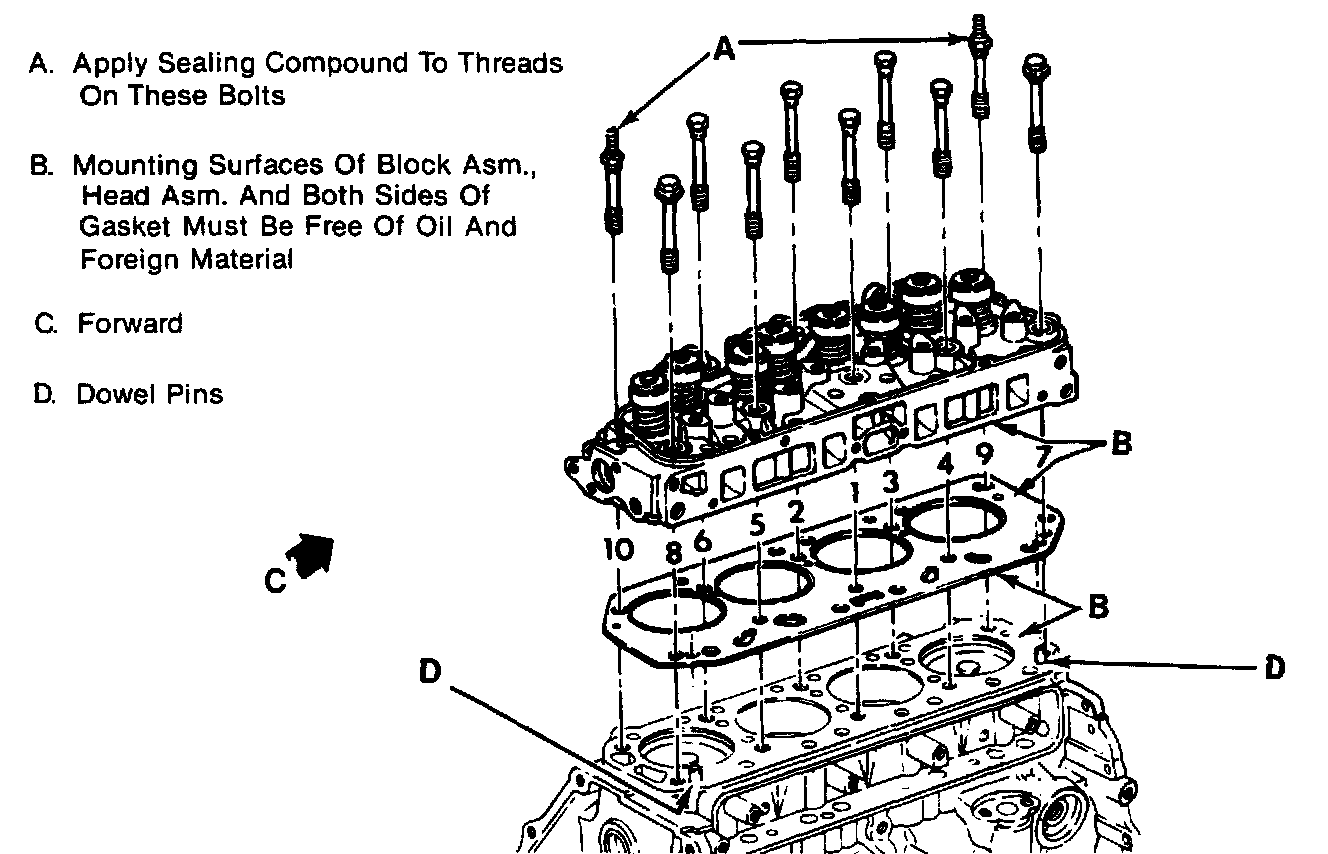

Cylinder Head Torque Sequence:
