Vacuum Hose Routings
>>

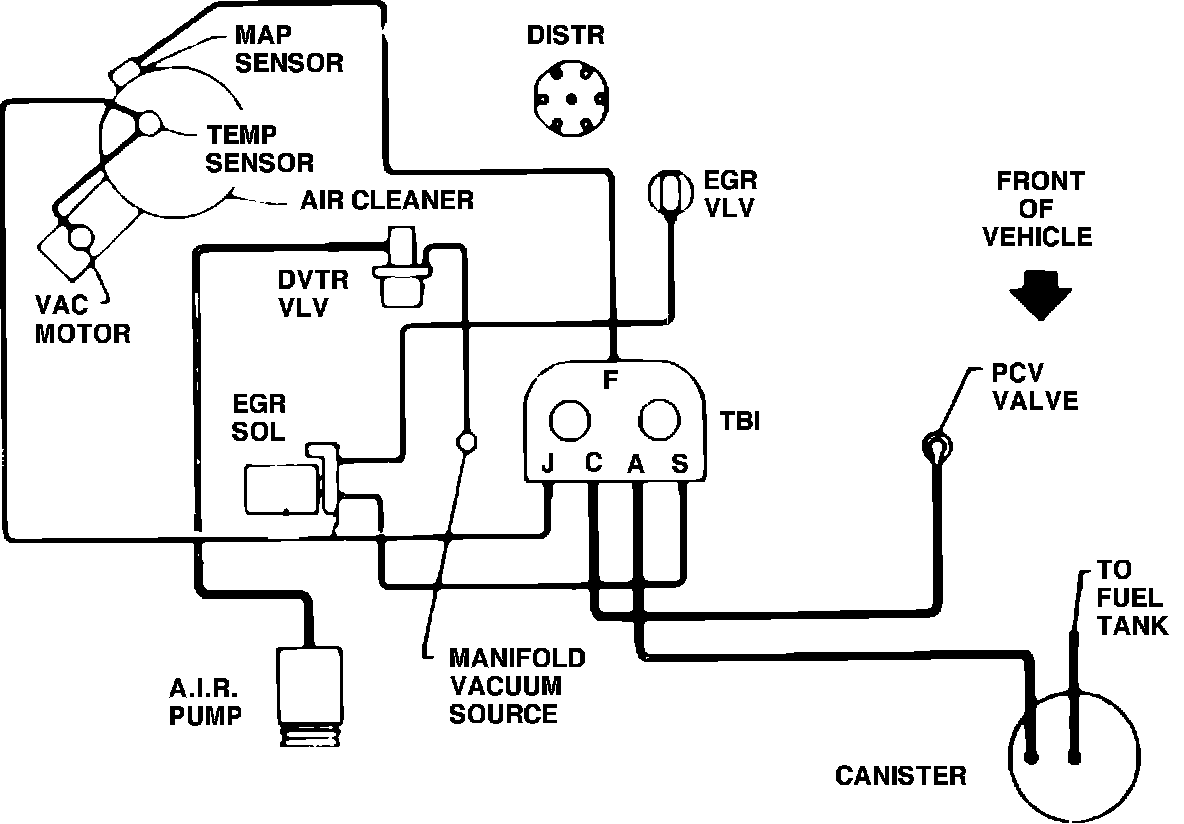

Fig. 114 Vacuum Hose Routing
Fig. 114 Vacuum Hose Routing
Fig. 114 Vacuum hose routing. 1986 V6-262 Astro & Safari Vans all w/ man. trans. & California w/ auto. trans.:
